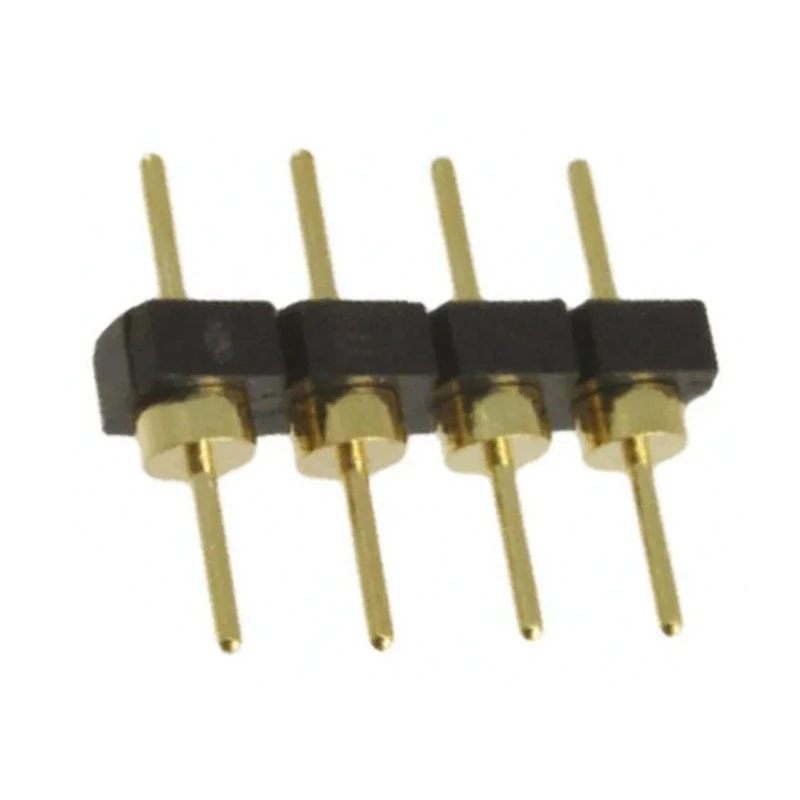

Samtec BBL Series Straight Through Hole Pin Header 4 Contact 2.54 mm Pitch 1 Row Unshrouded BBL-104-G-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-104-G-E |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 2.67mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- Manufactured with black glass-filled polyester housing for durability and insulation.
- Brass male contacts with gold plating ensure reliable conductivity and corrosion resistance.
- Rated for 1 ampere current with a wide operating temperature range from -55°C to 125°C.
- Through-hole mount type for secure PCB installation using solder termination.
- Low profile design achieving 3.89 mm board spacing when mated with compatible SL series sockets.
- Tail pin length of 3.18 mm and mating pin length of 2.67 mm for robustness in connection.
- Compatible with SL series low profile socket strips and SS series socket strips for versatile system integration.
- Ideal for electronic, industrial, and power connector applications requiring board-to-board interfacing.
Product Description
Samtec BBL-104-G-E is a high-quality pin header from the BBL series designed as a board-to-board connector with a straight orientation and unshrouded housing. This model features 4 male brass contacts plated with gold to enhance signal integrity and reduce corrosion. The black housing is made of glass-filled polyester, providing excellent mechanical strength and electrical insulation.
The device presents a standard board pitch of 2.54 mm with a single row layout, supporting a current rating of 1A. It is designed for through-hole mounting with solder termination, ensuring durable and stable installation on printed circuit boards.
The temperature operating range from -55°C up to 125°C allows this header to function reliably in diverse environmental conditions including industrial and commercial electronics. Its low profile design matches with Samtec SL and SS series socket strips to facilitate compact, stacked board assemblies with a 3.89 mm board spacing.
This pin header is suitable for applications in electronic instrumentation, power connectors, industrial equipment, and other manufacturing or repair scenarios requiring robust and precise PCB connections.
Manufactured with black glass-filled polyester housing for durability and insulation. Brass male contacts with gold plating ensure reliable conductivity and corrosion resistance. Rated for 1 ampere current with a wide operating temperature range from -55°C to 125°C.
Through-hole mount type for secure PCB installation using solder termination. Low profile design achieving 3.89 mm board spacing when mated with compatible SL series sockets. Tail pin length of 3.18 mm and mating pin length of 2.67 mm for robustness in connection.
Compatible with SL series low profile socket strips and SS series socket strips for versatile system integration. Ideal for electronic, industrial, and power connector applications requiring board-to-board interfacing. Explore more quality PCB connectors and headers in the Electronics & Electricals category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1 ampere.
It operates within a temperature range of -55°C to 125°C.
This connector is designed for through-hole mounting with solder termination.
The housing is made from black glass-filled polyester, and the contacts are brass with gold plating.
The pin header has a standard pitch of 2.54 mm.
This model features 4 male contacts.
The tail pin length is 3.18 mm.
The mating pin length is 2.67 mm.
Yes, it is compatible with SL series low profile socket strips and SS series socket strips.
The orientation of this model is straight.
It uses a board-to-board connector system.
This pin header is manufactured in India.
