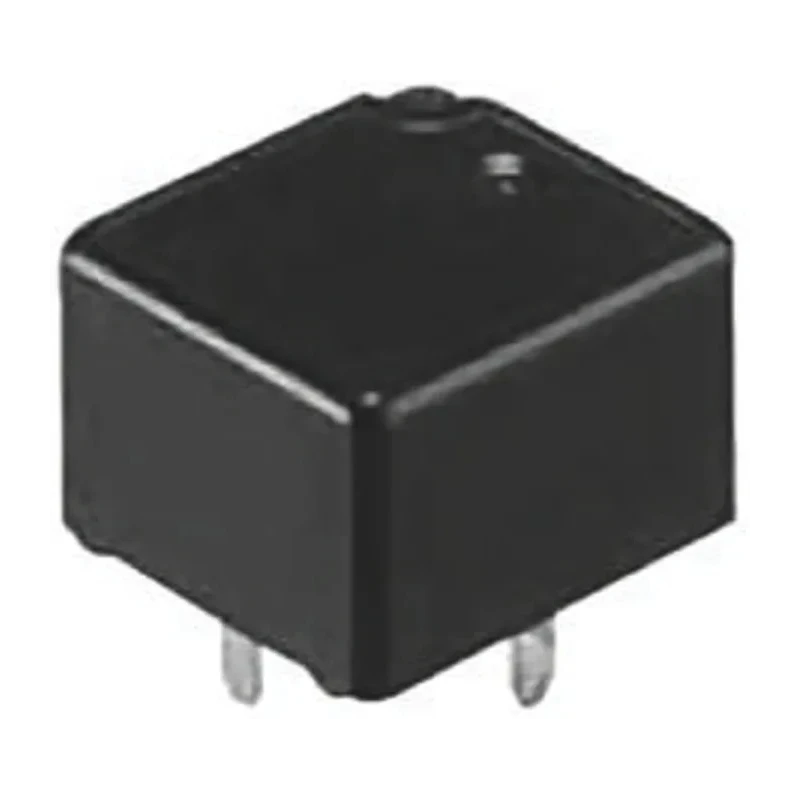

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current SPST CP1AH-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.5mm |
| Length | 14mm |
| Model | CP1AH-12V |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-5991Brand: PanasonicManufacturers Part No.: CP1AH-12V |
| Coil Resistance | 225Ω |
| Coil Power | 640mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay is designed with a compact flat PCB mount type housing measuring 14mm length, 13mm depth, and 9.5mm height.
- It features a single pole single throw (SPST) contact configuration suitable for automotive system applications.
- The coil has power consumption of 640mW with 225Ω resistance ensuring efficient operation.
- Operating temperature range is from -40°C minimum to 85°C maximum for reliable automotive use.
- Contact material uses silver alloy for durable and low resistance switching performance.
- The relay provides isolation between coil and contact of up to 500Vrms for safety and noise reduction.
- Typical automotive applications include power windows, ignitions, defoggers, heaters, ABS, and other vehicle accessories.
- Its sealed design allows for dependable performance in harsh environments.
Product Description
Panasonic CP1AH-12V Automotive Relay is a miniature, low profile, power type relay designed for PCB mounting with a compact flat design (14mm length x 13mm width x 9.5mm height). It operates with a 12V DC coil voltage and supports a 20A switching current in a SPST (single pole single throw) contact configuration.
This relay is well suited for various automotive system functions, including defoggers, ignition systems, heaters, power windows, ABS systems, and other electrical accessories. The coil power consumption is 640mW with a coil resistance of 225 ohms, ensuring efficient energy use.
The contact material is silver alloy, providing durable and low resistance contacts, with an isolation voltage of 500Vrms between coil and contacts to prevent interference and enhance safety. It has a sealed casing designed to withstand harsh automotive environments and temperature ranges from -40°C to 85°C for reliable performance.
Its flat and compact profile makes it ideal for applications requiring low-profile power relays suitable for PCB installation. The Panasonic CP series is manufactured in Japan, ensuring high-quality standards and reliability in industrial, automotive, and manufacturing contexts.
This relay features a compact and flat design suitable for PCB mounting. It supports a 20A maximum switching current with SPST contact configuration. Coil power is rated at 640mW with a coil resistance of 225Ω. Operational temperature range from -40°C to 85°C enables use in automotive environments.
Contact material made of silver alloy enhances durability and conductivity. Provides 500Vrms isolation between coil and contact for safety. Sealed construction ensures protection against environmental factors. Typical automotive uses include ignitions, defoggers, heaters, and power windows.
Manufactured to high standards in Japan.
This Panasonic PCB Automotive Relay 12V DC is ideal for automotive electrical systems, industrial automation, and other applications requiring reliable relay switching. Explore more Automotive Relay options and accessories at EnvMart for your industrial and automotive needs.
