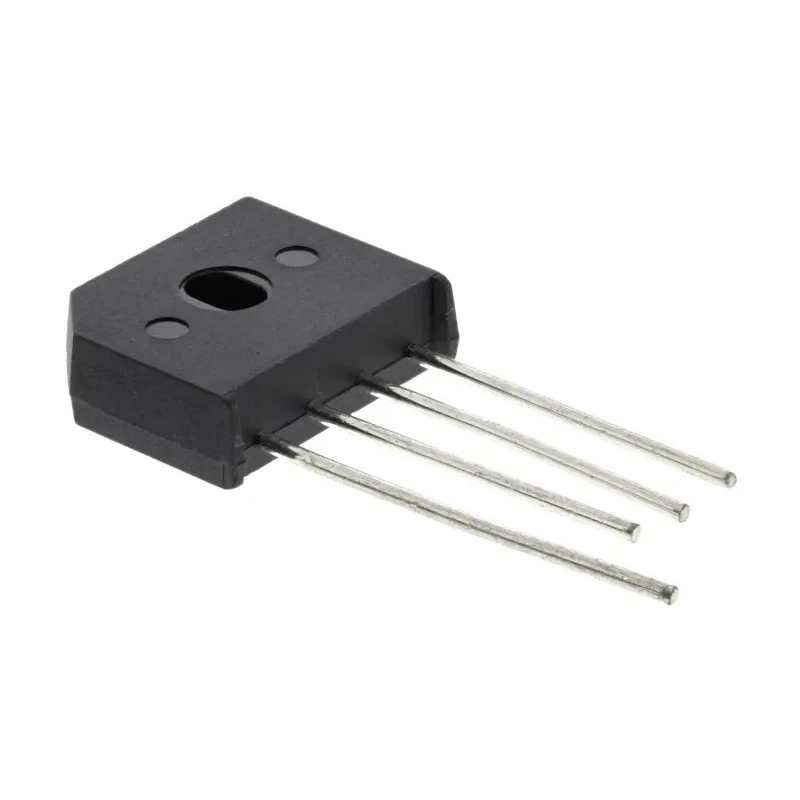

Taiwan Semiconductor Bridge Rectifier, 1000 V, 175 A, 4-Pin Through Hole Package KBU607G
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 19.3mm |
| Length | 23.7mm |
| Model | KBU607G |
| Width | 7.1mm |
| Mount Type | Through Hole |
| Series | KBU6 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 175A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Provides efficient AC to DC rectification in electronic circuits.
- Features a robust KBU package suitable for PCB through-hole mounting.
- Operates effectively at temperatures ranging from -55°C to 150°C.
- Supports forward current up to 6A with low forward voltage drop of 1V.
- Reliable glass passivated junction and wire lead structure for durability.
- Peak non-repetitive forward surge current rating of 175A ensures transient robustness.
- Ideal for industrial power rectification requiring single-phase bridge configuration.
Product Description
Taiwan Semiconductor KBU607G Bridge Rectifier is a high-performance electronic component designed for converting alternating current (AC) to direct current (DC) with a peak reverse repetitive voltage rating of 1000 volts and a peak surge current of 175 amperes. This bridge rectifier features a 4-pin single-phase configuration in a KBU package optimized for through hole mounting on printed circuit boards (PCB).
Engineered for robustness, it operates reliably within a temperature range of -55°C to 150°C, making it suitable for varied industrial electronics, power supplies, and control systems. The device sustains a forward current of 6 amperes and exhibits a low peak forward voltage of 1 volt, contributing to efficient power conversion with minimal energy loss.
The physical dimensions are 23.7 mm in length, 19.3 mm in height, and 7.1 mm in width, enabling compact and space-efficient circuit designs. The glass passivated junction and wire lead structure ensure long-term stability and mechanical durability. Its maximum peak reverse current is 5 microamperes, providing high insulation resistance.
This component complies with industry standards for bridge rectifiers, though no specific automotive certifications are indicated. It is manufactured in China and belongs to the KBU6 series from Taiwan Semiconductor.
Common applications include power supply units, industrial electronics, motor control circuits, and other electronic systems demanding reliable single-phase AC-to-DC conversion. Efficient AC to DC conversion in electronic power supplies.
Compact and durable KBU package for PCB mounting. Wide operating temperature range from -55°C to 150°C. High surge current handling capability of 175A. Low forward voltage drop enhances energy efficiency. Glass passivated junction for stability and reliability.
Suitable for industrial and electronic manufacturing applications. Manufactured in China with Taiwan Semiconductor quality standards. Explore more semiconductor components and Bridge Rectifiers in EnvMart’s Electronics & Electricals category for advanced industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KBU607G has a peak reverse repetitive voltage rating of 1000 volts.
This model can handle a maximum forward current of 6 amperes.
The peak non-repetitive forward surge current rating is 175 amperes.
The dimensions are 23.7 mm in length, 19.3 mm in height, and 7.1 mm in width.
It operates effectively within a temperature range of -55°C to 150°C.
This model is designed for through hole mounting on printed circuit boards (PCB).
The forward voltage drop is 1 volt, which contributes to efficient power conversion.
The KBU607G features a 4-pin configuration.
The maximum peak reverse current is 5 microamperes.
Common applications include power supply units, industrial electronics, and motor control circuits requiring reliable AC-to-DC conversion.
It belongs to the KBU6 series from Taiwan Semiconductor.
The KBU607G is manufactured in China.
