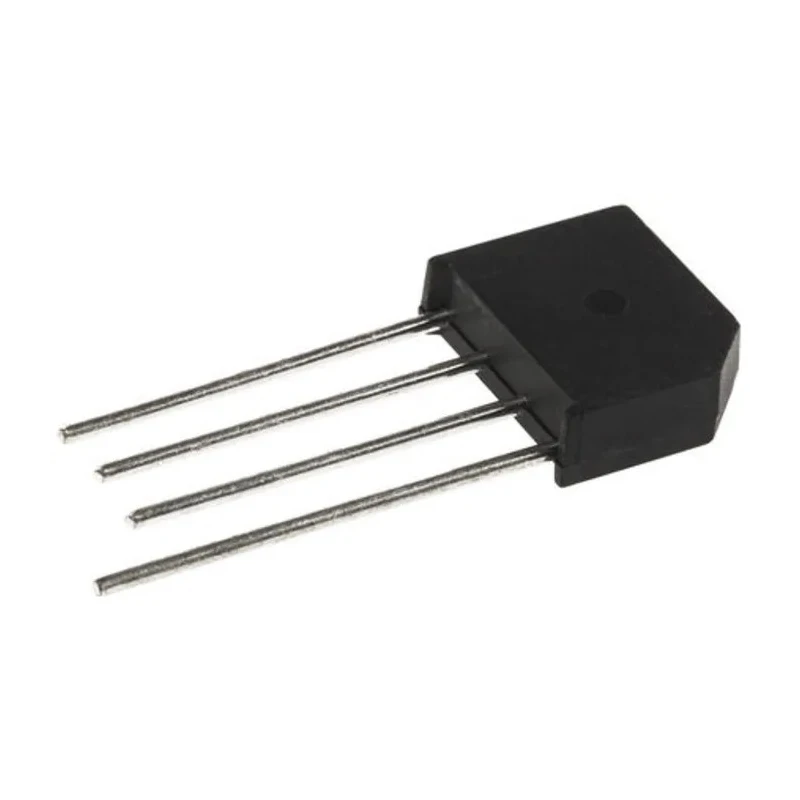

Taiwan Semiconductor Bridge Rectifier 4A 1000 V Through Hole KBL407G T0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 16.38mm |
| Length | 19.6mm |
| Model | KBL407G T0 |
| Width | 6.48mm |
| Mount Type | Through Hole |
| Series | KBL4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1.1V |
| Fairchild Semiconductor Bridge Rectifier, 4A, 600V, 4-PinBrand | Fairchild Semiconductor |
| Taiwan Semiconductor Bridge Rectifier, 4A, 1000V, 4-PinBrand | Taiwan Semiconductor |
Key Features
- Supports peak reverse repetitive voltage of 1000 V for high voltage applications.
- Forward current rating is 4 amperes ensuring stable current flow.
- Compact size with dimensions 19.6 mm length, 16.38 mm height, and 6.48 mm width.
- Operates reliably between temperatures -55°C to 150°C.
- Features peak non-repetitive forward surge current of 150 A for transient protection.
- Designed with glass passivated junction for durability and long life.
- SIL PCB mount type facilitates easy circuit board integration.
- Peak forward voltage drop is 1.1 V ensuring efficiency.
Product Description
Taiwan Semiconductor KBL407G T0 Bridge Rectifier is a discrete semiconductor designed for converting alternating current (AC) input into direct current (DC) output with high reliability and efficiency. It operates with a peak reverse repetitive voltage of 1000 V and carries a continuous forward current of 4 A under a single-phase, 4-pin through-hole package, suitable for PCB mounting.
This bridge rectifier features a glass passivated junction and wire lead structure, designed for low cost and durable construction. It withstands operational temperatures ranging from -55°C to 150°C, making it suitable for various electronic and industrial applications including power supplies, motor controls, and automotive electronics.
Its peak non-repetitive forward surge current rating of 150 A provides protection against transient currents, enhancing device reliability. The low peak forward voltage of 1.1 V ensures efficient power conversion with minimal losses, while the peak reverse current of 10 μA indicates excellent diode leakage characteristics.
The compact dimensions (19.6 mm length, 16.38 mm height, and 6.48 mm width) allow for space-saving integration in circuit designs. The SIL PCB mounting configuration facilitates straightforward assembly on printed circuit boards, supporting automated manufacturing processes.
Supports peak reverse repetitive voltage of 1000 V for high voltage applications. Forward current rating is 4 amperes ensuring stable current flow. Compact size with dimensions 19.6 mm length, 16.38 mm height, and 6.48 mm width.
Operates reliably between temperatures -55°C to 150°C. Features peak non-repetitive forward surge current of 150 A for transient protection. Designed with glass passivated junction for durability and long life. SIL PCB mount type facilitates easy circuit board integration.
Peak forward voltage drop is 1.1 V ensuring efficiency. Peak reverse current is low at 10 μA minimizing leakage.
This bridge rectifier is ideal for industrial, automotive, and power management applications where dependable AC to DC conversion is required. It meets standard semiconductor quality but carries no automotive specific approvals.
Explore more semiconductor solutions and Bridge Rectifiers for enhanced electronic component reliability at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a peak reverse repetitive voltage of 1000 V, making it suitable for high voltage applications.
The forward current rating is 4 amperes, ensuring stable current flow during operation.
This model has compact dimensions of 19.6 mm in length, 16.38 mm in height, and 6.48 mm in width.
It operates reliably between temperatures of -55°C to 150°C, suitable for various applications.
The peak non-repetitive forward surge current is rated at 150 A, providing transient protection.
It features a through-hole mounting type, facilitating easy installation on printed circuit boards.
The peak forward voltage drop is 1.1 V, ensuring efficient power conversion with minimal losses.
The peak reverse current is low at 10 μA, indicating excellent diode leakage characteristics.
The package type is KBL, designed for a single-phase, 4-pin configuration.
It is suitable for various electronic and industrial applications, including power supplies, motor controls, and automotive electronics.
It is designed with a glass passivated junction, which enhances durability and longevity.
This model has a pin count of 4, suitable for its through-hole configuration.
