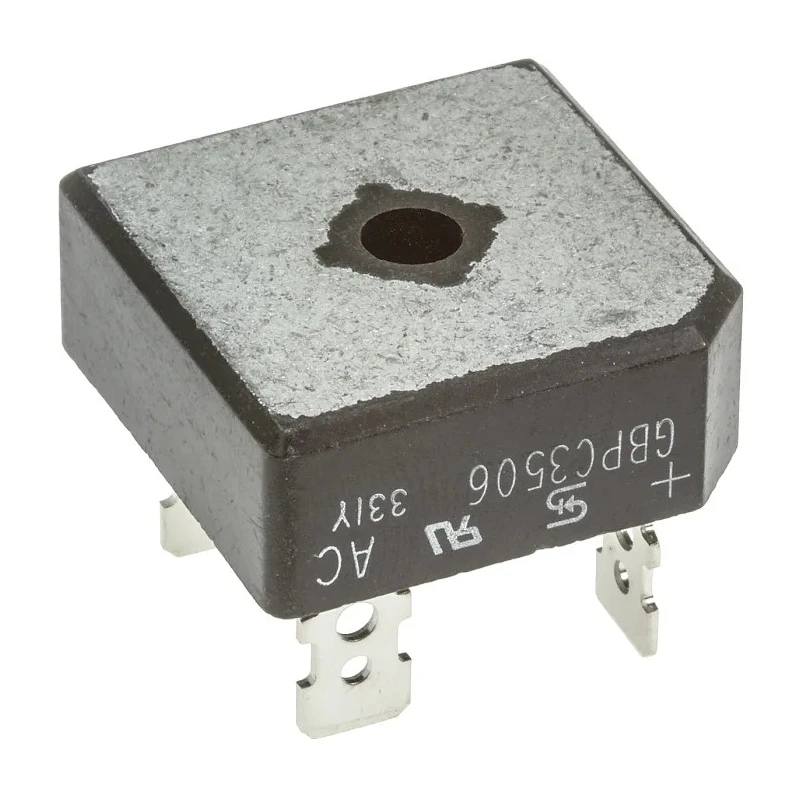

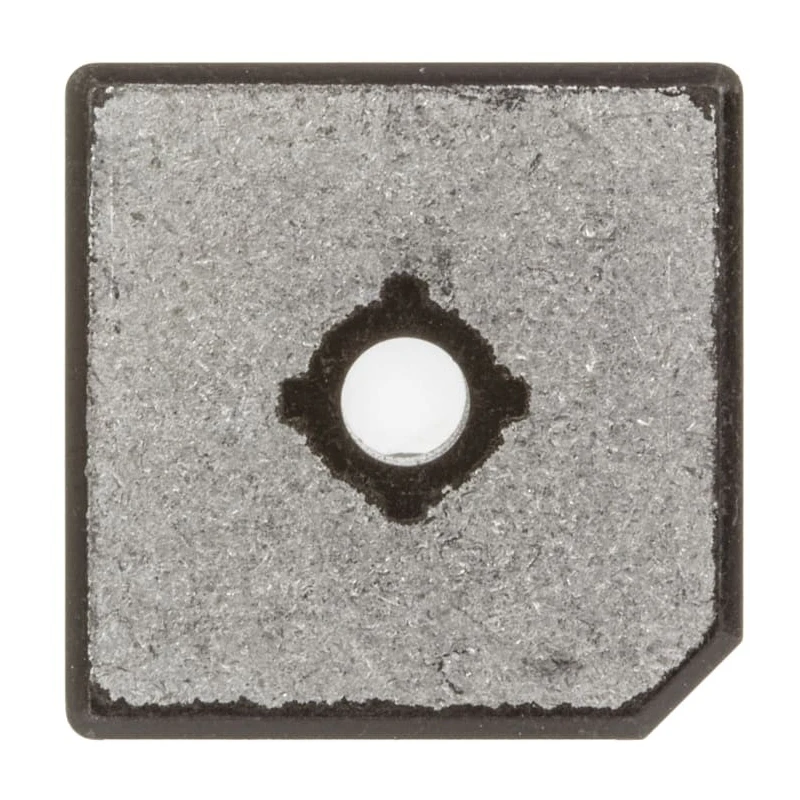

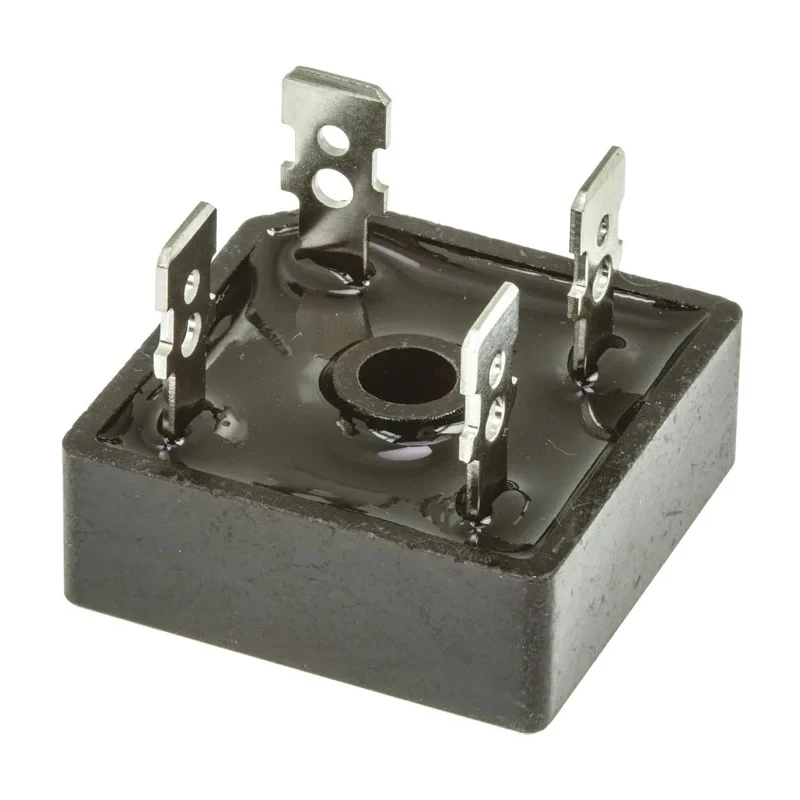

Taiwan Semiconductor Bridge Rectifier 600 V 400 A 4-Pin Single GBPC3506

Taiwan Semiconductor GBPC3506 Bridge Rectifier is a high-performance semiconductor device engineered for converting alternating current (AC) into direct current (DC). Featuring a 4-pin single configuration, it supports a peak reverse repetitive voltage (Vrrm) of 600 volts and a forward current of 35 amperes, enabling operation under demanding electrical conditions.

This rectifier accommodates peak non-repetitive forward surge currents up to 400 amperes, providing robustness against transient current surges common in industrial and power supply circuits. Designed with a screw mount type package (GBPC), it offers reliable mechanical stability and straightforward installation.

The device's maximum operating temperature reaches up to 150°C, allowing effective performance in elevated temperature environments with integrally molded heat sinks for enhanced thermal dissipation. Its compact physical dimensions (29 mm length, 29 mm width, and 11.23 mm height) make it suitable for space-constrained hardware.

Additional features include a low peak reverse current leakage of 5 microamperes and an isolated voltage rating exceeding 2500 volts between case and leads, ensuring enhanced electrical safety and long-term durability. The 4-pin GBPC package facilitates efficient electrical connectivity and maintenance.

This bridge rectifier is ideal for applications in industrial electronics, power conversion, HVAC systems, and manufacturing equipment requiring reliable AC to DC conversion. It supports one-phase operation and conforms to the GBPC35 series specifications from Taiwan Semiconductor.

Peak Reverse Repetitive Voltage of 600 volts ensuring high voltage endurance. Forward Current rated at 35 amperes for steady current conduction. Peak Non-Repetitive Forward Surge Current of 400 amperes for transient high current events.

Maximum Operating Temperature up to 150 degrees Celsius for robust thermal performance. Compact dimensions of 29 mm length, 29 mm width, and 11.23 mm height. Screw mount type for secure and stable installation. 4-pin GBPC package providing easy connectivity and mounting.

Low peak reverse current leakage of 5 microamperes. Isolated voltage from case to lead exceeding 2500 volts for electrical safety. Designed for industrial AC to DC power rectification applications. Explore more semiconductor Bridge Rectifiers and related electronic components in the Electronics & Electricals category on EnvMart.
