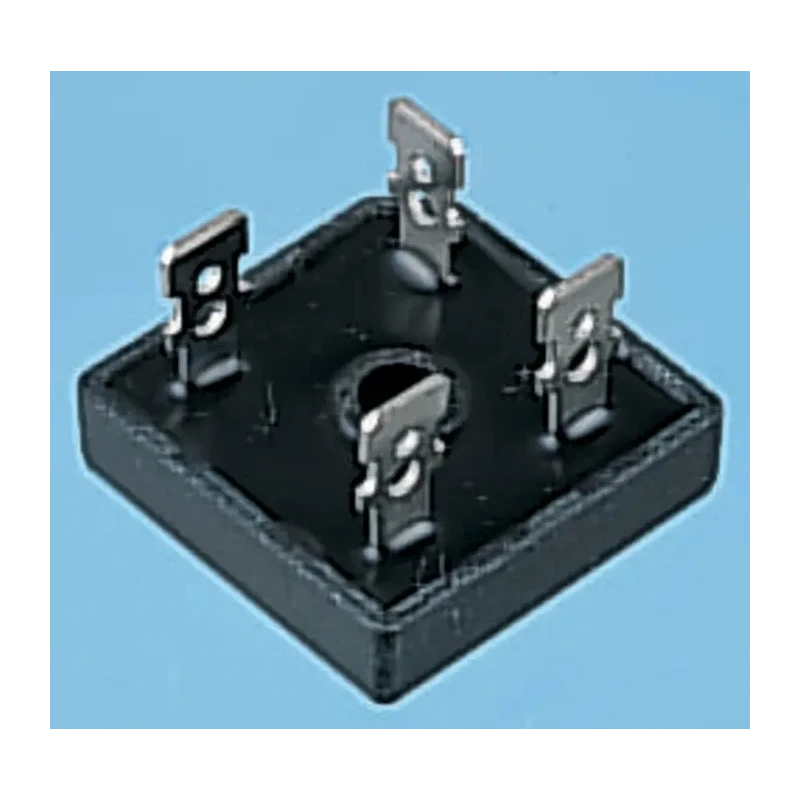

Taiwan Semiconductor Bridge Rectifier 50 V 400 A 4-Pin Single GBPC35005
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 11.23mm |
| Length | 29mm |
| Model | GBPC35005 |
| Width | 29mm |
| Mount Type | Screw |
| Series | GBPC35 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -50°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Compact 4-pin single configuration suitable for high current applications.
- Peak reverse repetitive voltage is 50 V ensuring robust performance.
- Mount type is screw with GBPC package type for secure installation.
- Operates reliably between -50°C to 150°C maximum temperature.
- Fast-on terminals with integrally molded heat sink for efficient heat dissipation.
- Peak non-repetitive forward surge current of 400 A supports high surge loads.
- Forward current rating of 35 A for continuous operation.
- Low peak forward voltage drop of 1.1 V minimizes power loss.
Product Description
Taiwan Semiconductor GBPC35005 bridge rectifier is a discrete semiconductor device designed to convert AC input into DC output efficiently and reliably. It features a 4-pin single configuration and GBPC package for mounting via screws ensuring mechanical stability in electronic circuits.
This bridge rectifier delivers a peak reverse repetitive voltage of 50 V and a forward current rating of 35 A, suitable for medium power electronic applications. It withstands peak surge currents of up to 400 A making it robust against transient loads.
The device is rated for continuous operation in extreme environments with a temperature range from -50°C to 150°C, providing versatility in industrial, automotive, and power management applications. The fast-on terminals and integrally molded heat sink design enable excellent thermal performance, reducing junction temperature and enhancing reliability.
Physically compact, with dimensions of 29 mm length by 29 mm width and a height of 11.23 mm, this rectifier offers easy integration into various PCB layouts and power modules. The low peak forward voltage of 1.1 V ensures efficient power conversion while peak reverse current is minimized to 5 μA, maintaining energy efficiency.
Compact 4-pin GBPC packaged bridge rectifier. Peak voltage 50 V with 35 A continuous current rating. Handles 400 A peak forward surge current. Wide operating temperature range from -50°C to 150°C. Fast-on terminals and molded heat sink for heat dissipation.
Low forward voltage minimizes energy loss. Dimensions: 29 mm x 29 mm x 11.23 mm. Ideal for industrial power rectification and automotive electronic applications.
This Taiwan Semiconductor bridge rectifier is categorized under semiconductors and is essential for reliable AC to DC power conversion. It caters to industrial electronics, power management, automotive systems, and manufacturing sectors requiring stable rectifier performance.
Explore more semiconductor Bridge Rectifiers at EnvMart to match your specific project and sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
This bridge rectifier has a peak reverse repetitive voltage rating of 50 V.
The continuous forward current rating for this unit is 35 A.
It can handle a peak non-repetitive forward surge current of 400 A.
The dimensions are 29 mm in length, 29 mm in width, and 11.23 mm in height.
It uses a screw mount type for secure installation.
The peak forward voltage drop is 1.1 V, which helps minimize power loss.
The minimum operating temperature is -50°C.
This model features a 4-pin single configuration.
The peak reverse current is rated at 5 μA.
It is suitable for industrial electronics, power management, and automotive systems requiring stable rectifier performance.
It uses a GBPC package type for mounting.
