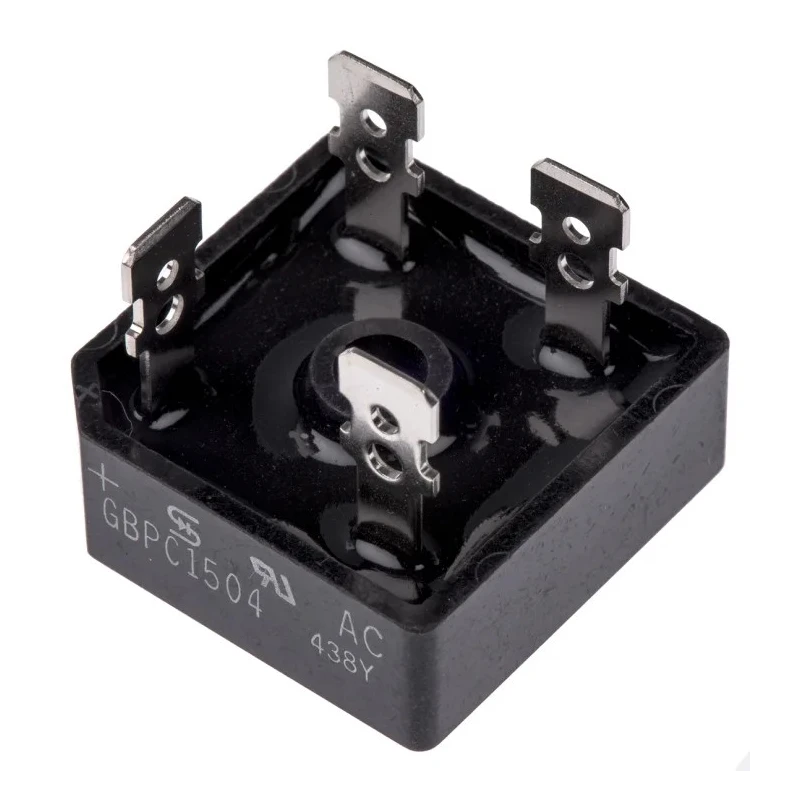

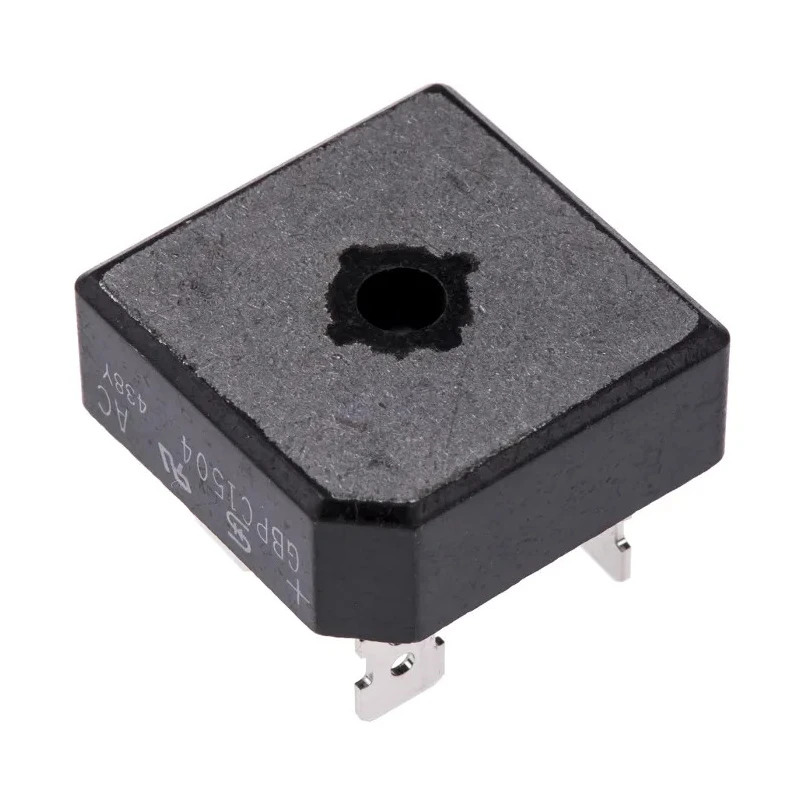

Taiwan Semiconductor Bridge Rectifier, 400 V, 15 A Forward Current, 300 A Surge Current, 4-Pin Single GBPC1504 T0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 11.23mm |
| Length | 29mm |
| Model | GBPC1504 T0 |
| Width | 29mm |
| Mount Type | Screw |
| Series | GBPC15 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -50°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 300A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 400 V 300 A, 4-Pin SingleBrand | Vishay |
Key Features
- Supports peak reverse repetitive voltage of 400 volts.
- Designed for a forward current of 15 amperes and surge current of 300 amperes.
- Operational temperature ranges from -50°C to 150°C.
- Features a compact package with dimensions 29mm x 29mm x 11.23mm.
- Utilizes screw mount type with GBPC package and fast-on terminals for easy installation.
- Glass passivated chip junction ensures reliability and durability.
- Isolated voltage from case to lead over 2500 volts for electrical safety.
- Configuration is single phase with 4 pins for connection.
Product Description
Taiwan Semiconductor GBPC1504 T0 Bridge Rectifier is a reliable electronic component designed to convert alternating current (AC) input into direct current (DC) output. It operates with a peak reverse repetitive voltage of 400 V and a forward current rating of 15 A. Engineered for high surge capacity, it can handle peak non-repetitive forward surge current up to 300 A.
This 4-pin bridge rectifier features a single-phase configuration housed in a GBPC package with a screw mount type. Its compact dimensions measure 29 mm in length, 29 mm in width, and 11.23 mm in height, making it suitable for space-constrained applications. The integrally molded heat sink provides efficient thermal dissipation, ensuring stable operation within -50°C to 150°C temperature range.
The device incorporates glass passivated chip junction technology, improving long-term reliability by protecting the chip. Electrical isolation of over 2500 volts between the case and lead enhances operational safety. Fast-on terminals facilitate quick and secure connections.
Typical applications of this bridge rectifier span industrial electronics, power supplies, renewable energy systems, and electronic circuits requiring efficient AC to DC conversion.
Supports peak reverse repetitive voltage of 400 volts. Forward current rating of 15 amperes, with surge handling capability up to 300 amperes. Wide operating temperature range from -50°C to 150°C. Compact dimensions of 29 x 29 x 11.23 mm for flexible use.
Screw mount type and GBPC package for reliable installation. Glass passivated chip junction technology for enhanced durability. Electrical isolation over 2500 volts between case and lead. 4-pin single-phase configuration with fast-on terminals for easy assembly.
Browse the Taiwan Semiconductor range or explore EnvMart's category for semiconductor Bridge Rectifiers to find compatible components and related electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this bridge rectifier is 400 volts.
This model has a forward current rating of 15 amperes.
It can handle a peak non-repetitive forward surge current of up to 300 amperes.
The operational temperature range for this bridge rectifier is from -50°C to 150°C.
The dimensions of this model are 29 mm in length, 29 mm in width, and 11.23 mm in height.
It utilizes a screw mount type for installation.
The GBPC1504 T0 is housed in a GBPC package.
This model features a single-phase configuration with 4 pins for connection.
It has fast-on terminals for easy and secure connections.
It incorporates glass passivated chip junction technology to enhance reliability.
The electrical isolation from case to lead is over 2500 volts.
Typical applications include industrial electronics, power supplies, renewable energy systems, and electronic circuits requiring AC to DC conversion.
