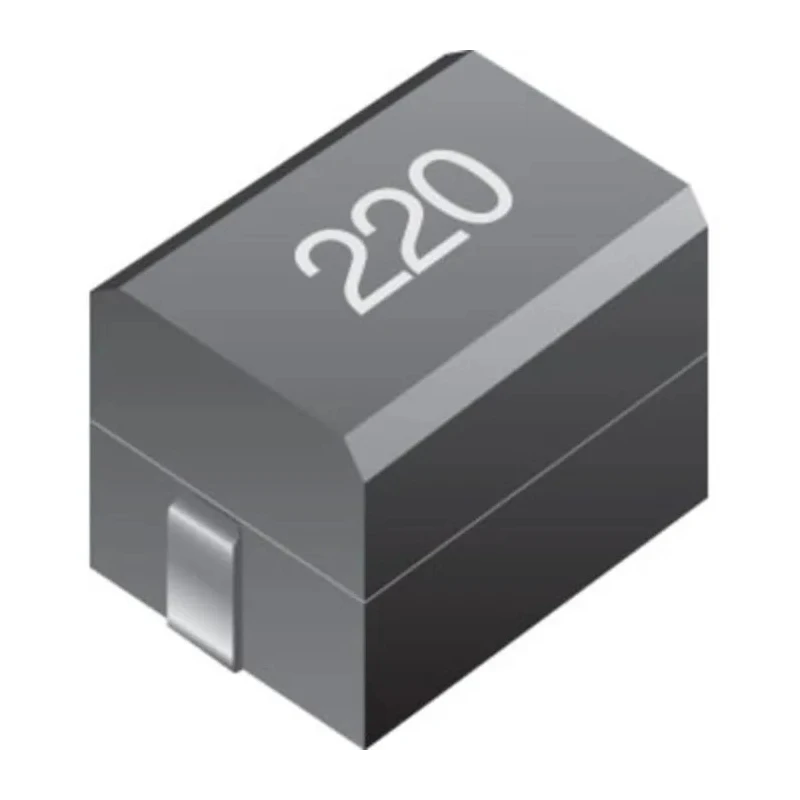

Bourns 1812 Multilayer Surface Mount Inductor 22 μH Ferrite Core ±10 % 620 mA Idc CC453232A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | CC453232A |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | CC453232A |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 620mA |
| Maximum DC Resistance | 900mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 12MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |
Key Features
- Ferrite core construction offers stable inductance over temperature.
- Rated for a maximum DC current of 620 mA.
- Package size is 1812 with dimensions of 4.5 mm length, 3.2 mm height, and 3.2 mm depth.
- Operating temperature ranges from -40°C to 150°C for automotive-grade performance.
- Offers a maximum DC resistance of 900 mΩ ensuring low power loss.
- RoHS compliant and AEC-Q200 automotive standard certified.
- Termination style is solder suitable for automated PCB assembly.
- Maximum self-resonant frequency is 12 MHz with a minimum quality factor (Q) of 20.
Product Description
Bourns CC453232A 1812 Multilayer Surface Mount Inductor features a ferrite core with an inductance value of 22 μH and a tolerance of ±10 %. This component is tailored for surface mount technology, ensuring reliable electrical performance in compact spaces.
Its ferrite core construction provides excellent magnetic properties which contribute to stable inductance across the operating temperature range of -40°C to 150°C, complying with automotive-grade standards (AEC-Q200). The inductor supports a maximum DC current of 620 mA and has a maximum DC resistance of 900 mΩ, optimizing efficiency in electronic circuits.
The 1812 package case measures 4.5 mm in length, with cross-sectional dimensions of 3.2 mm height and depth, supporting automated placement with its solder termination style. The component maintains a minimum quality factor of 20 and a maximum self-resonant frequency of 12 MHz, suitable for filtering, noise suppression, and energy storage applications in electronic assemblies.
It is RoHS compliant, making it suitable for environmentally conscious manufacturing processes. Packaging is supplied on tape and reel, ideal for high-speed automated production lines.
Typical applications include industrial electronics, automotive electronics systems, telecommunications equipment, and general electronic product assembly where compact and reliable inductors are required.
Ferrite core construction offers stable inductance over temperature. Rated for a maximum DC current of 620 mA. Package size 1812 with dimensions 4.5 mm by 3.2 mm by 3.2 mm. Operating temperature range from -40°C to 150°C.
Maximum DC resistance of 900 mΩ for reduced power loss. Compliant with RoHS and automotive AEC-Q200 standards. Solder termination style suitable for PCB assembly. Maximum self-resonant frequency of 12 MHz and minimum quality factor of 20.
Supplied on tape and reel packaging for automated manufacturing. Explore more Surface Mount Inductors and components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±10 %.
It is rated for a maximum DC current of 620 mA.
The package size measures 4.5 mm in length, 3.2 mm in height, and 3.2 mm in depth.
This model operates within a temperature range of -40°C to 150°C.
The maximum DC resistance is 900 mΩ, which helps to reduce power loss.
The maximum self-resonant frequency is 12 MHz.
It has a minimum quality factor of 20.
This inductor features a ferrite core construction.
The termination style is solder, which is suitable for automated PCB assembly.
Yes, it is RoHS compliant and certified to the AEC-Q200 automotive standard.
It is supplied on tape and reel packaging, ideal for high-speed automated production lines.
Typical applications include industrial electronics, automotive electronics systems, and telecommunications equipment.
