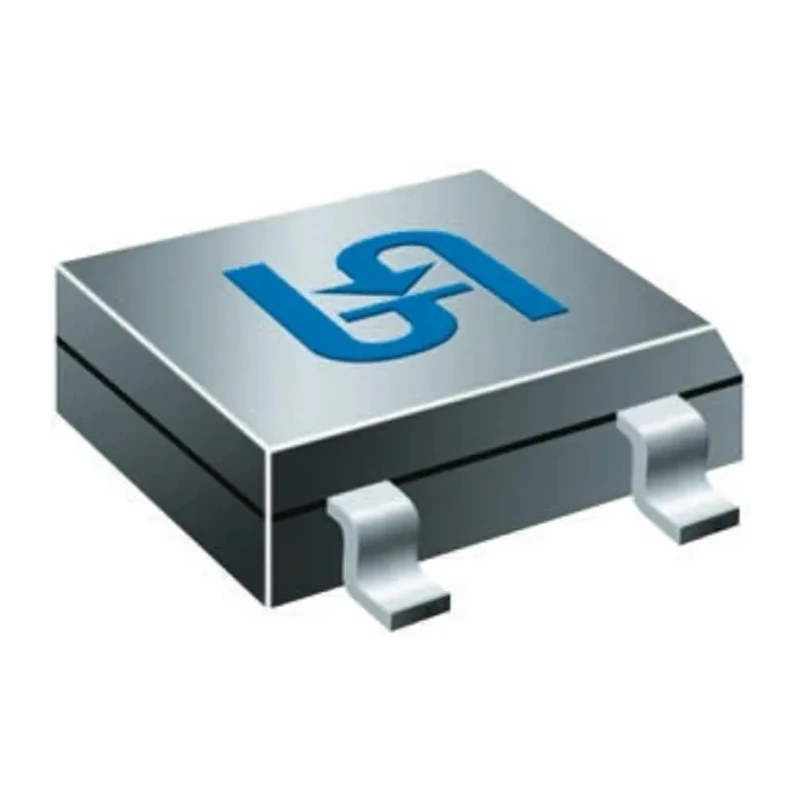

Taiwan Semiconductor Bridge Rectifier, 1000 V Peak Reverse Voltage, 50 A Forward Surge Current, 4-Pin Single DBLS207G

Taiwan Semiconductor DBLS207G Bridge Rectifier is a highly reliable discrete semiconductor designed for converting AC input to DC output in electronic circuits. Suitable for PCB surface mount technology, this rectifier features a glass passivated junction and molded plastic construction supporting high surge currents and robust electrical characteristics.

This 4-pin single phase device accommodates a peak reverse repetitive voltage (Vrrm) of 1000 V and a forward current rating (If) of 2 A, withstanding a peak non-repetitive forward surge current (Ifsm) of 50 A. It maintains performance across a wide operating temperature range from -55°C to 150°C, making it adaptable for automotive and industrial environments.

The compact package with dimensions 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height enables efficient placement on compact PCBs. Its electrical efficiency is supported by a peak forward voltage (Vf) of only 1.15 V and a low peak reverse current (Ir) of 10 µA, contributing to minimal energy dissipation and heat generation during operation.

Compliant with automotive standard AEC-Q101, the DBLS207G series is suitable for use in automotive electronics, power supplies, industrial automation, and other applications requiring reliable rectifier performance. Designed for automated assembly, these bridge rectifiers come in surface mount DBLS package style, facilitating high-speed production processes.

4-pin single configuration suitable for automated placement. Surface mount package type DBLS designed for reliable low-cost construction. Peak reverse voltage rating of 1000 V ensures robust operation. Forward current rating of 2 A with surge current durability up to 50 A.

Operates in temperature range from -55°C to 150°C for versatile applications. Compact dimensions with length 8.51 mm, width 6.5 mm, and height 2.6 mm. Glass passivated junction for enhanced reliability and longevity. Meets automotive standard AEC-Q101 for high quality and durability.

Peak forward voltage of 1.15 V with low peak reverse current of 10 µA.

This Bridge Rectifier is ideal for various industrial, automotive, and manufacturing uses requiring efficient AC-to-DC conversion with high reliability. Browse more semiconductors and electronic components on EnvMart for comprehensive solutions.
