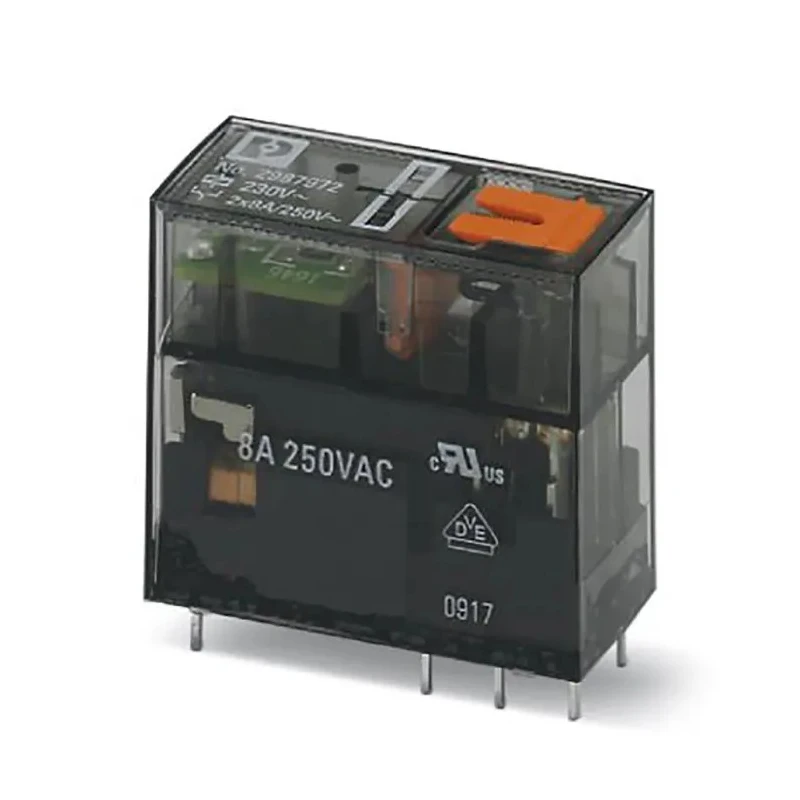

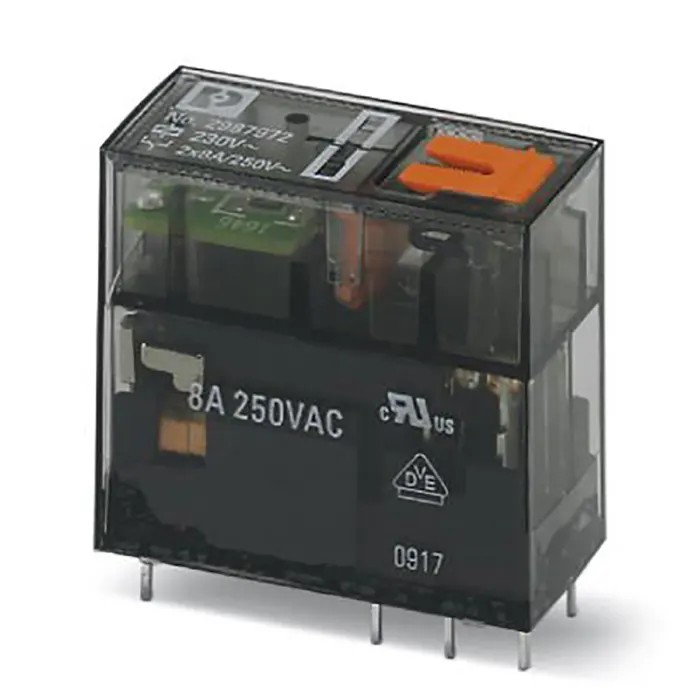

Phoenix Contact PCB Power Relay 230V AC Coil Voltage 8A Switching Current DPDT Model 2987972

Phoenix Contact 2987972 PCB Power Relay is designed for industrial and automation applications requiring reliable switching with a 230V AC coil voltage and an 8A switching current rating. This DPDT (Double Pole Double Throw) relay features silver alloy contacts and a compact footprint of 29mm length, 12.7mm width, and 25mm height, making it ideal for PCB mounting and space-constrained environments.

The relay operates efficiently within a temperature range of -40°C to 70°C, with a coil power consumption of just 810mW, indicating energy-efficient design. It includes a test button, mechanical switch position indicator, and status LED for easy status monitoring and maintenance.

This plug-in miniature relay is suitable for use in industrial control panels, automation systems, signal conditioning circuits, and other electrical switching applications. The PCB pin terminal type facilitates secure and reliable PCB integration, while the REL-MR series design ensures quality and standard compliance.

Contact configuration is DPDT, enabling switching of two independent circuits, and the relay supports a switching AC voltage and switching DC voltage of up to 250V each, allowing versatile application scenarios.

The coil voltage rating is 230V AC for versatile PCB mounting applications. Double Pole Double Throw (DPDT) contact configuration ensures reliable switching across two circuits. Maximum switching current capacity of 8 Amps supports moderate load requirements.

Compact dimensions of 29mm length, 12.7mm width, and 25mm height allow easy PCB integration. Contact material is silver alloy, offering durability and efficient electrical conductivity. Operating temperature range from -40°C to 70°C ensures performance in varied environments.

Coil power consumption is low at 810mW for energy-efficient operation. Designed as a plug-in miniature relay with mechanical switch position indicator and status LED. Manufactured in China, adhering to RoHS standards for environmental compliance.

This Phoenix Contact power relay is widely used in electrical automation, power control, manufacturing, HVAC systems, and other demanding industrial environments. It provides reliable switching performance with durability and easy integration.
