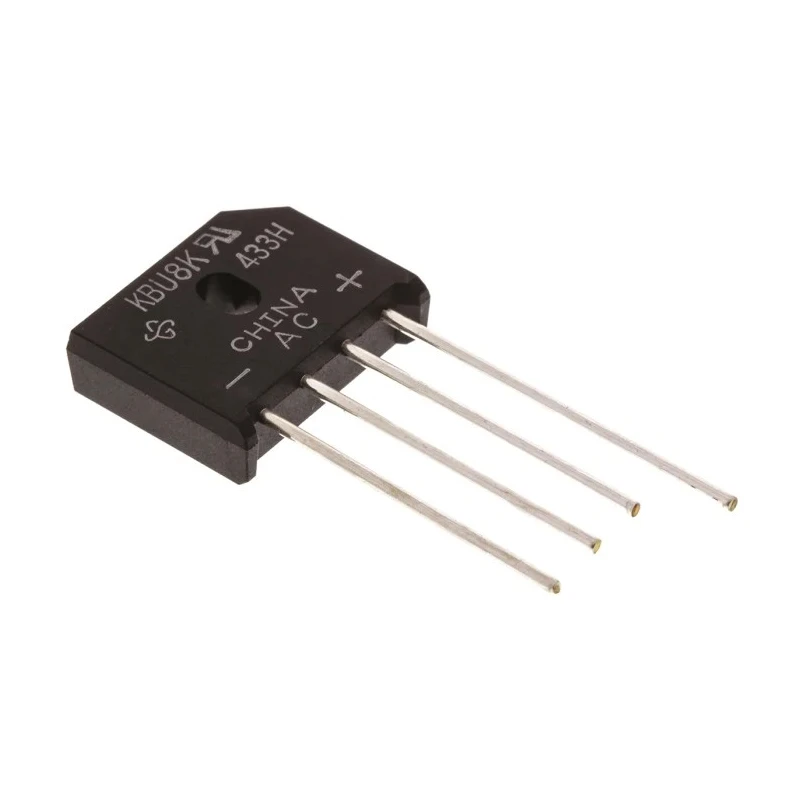

Vishay Bridge Rectifier, Through Hole KBU Package, Single Phase, 4-Pin, 800 V Peak Reverse Repetitive Voltage KBU8K-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier, Through Hole KBU Package, Single Phase, 4-Pin, 800 V Peak Reverse Repetitive Voltage KBU8K-E4/51

Name: Vishay Bridge Rectifier, Through Hole KBU Package, Single Phase, 4-Pin, 800 V Peak Reverse Repetitive Voltage KBU8K-E4/51
Brand: Vishay
SKU: 343442
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	19.3mm
Length	23.7mm
Model	KBU8K-E4/51
Width	7.1mm
Mount Type	Through Hole
Series	KUB8
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBU
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	300A
Forward Current If	8A
Peak Forward Voltage Vf	1V
Vishay Bridge Rectifier, 400 V 300 A, 4-Pin SingleBrand	Vishay
Bridge rectifier,KBU8K 8A 800VBrand	Vishay

Key Features

Designed for through-hole mounting in printed circuit boards with a KBU package format.
Supports single-phase AC input with 4 pins for reliable soldering and connection.
Maximum operating temperature is 150°C, ensuring durability in demanding conditions.
Forward current rating of 8 A for continuous operation.
Compact dimensions with length 23.7 mm, width 7.1 mm, and height 19.3 mm.
Minimum operating temperature capability down to -50°C.
Peak forward voltage of 1 V and peak reverse current of 10 μA deliver efficient rectification performance.
High surge current tolerance supports transient load conditions.

Product Description

Vishay KBU8K-E4/51 Bridge Rectifier is a single-phase, 4-pin component designed for through-hole mounting on printed circuit boards using the KBU package format.

This bridge rectifier converts alternating current (AC) into direct current (DC), providing full-wave rectification with the same output polarity regardless of AC input polarity. It is essential in power supply circuits, industrial equipment, and electronic devices requiring DC voltage derived from AC mains.

The device features a peak reverse repetitive voltage (Vrrm) of 800 V and can handle peak non-repetitive forward surge currents (Ifsm) up to 300 A, which makes it suitable for robust, high-load applications. The forward current rating (If) of 8 A supports continuous operation in medium power circuits.

Operating temperature ranges from -50°C to a maximum of 150°C, ensuring performance even in harsh environments. The compact dimensions of 23.7 mm length, 7.1 mm width, and 19.3 mm height allow space-efficient PCB layouts. The peak forward voltage drop of 1 V and low peak reverse current of 10 μA enable efficient power conversion with minimal losses.

Through-hole mounting for easy soldering and integration. High surge current capacity suitable for transient conditions. Compact and reliable for industrial electronic assemblies. Stable performance over a wide temperature range.

Ideal for power supplies, motor drives, and industrial automation equipment.

Vishay's KBU Series Bridge Rectifiers are well-known for their durability and performance in semiconductor power applications. This product supports engineers and designers in delivering efficient, compact, and reliable rectification solutions.
