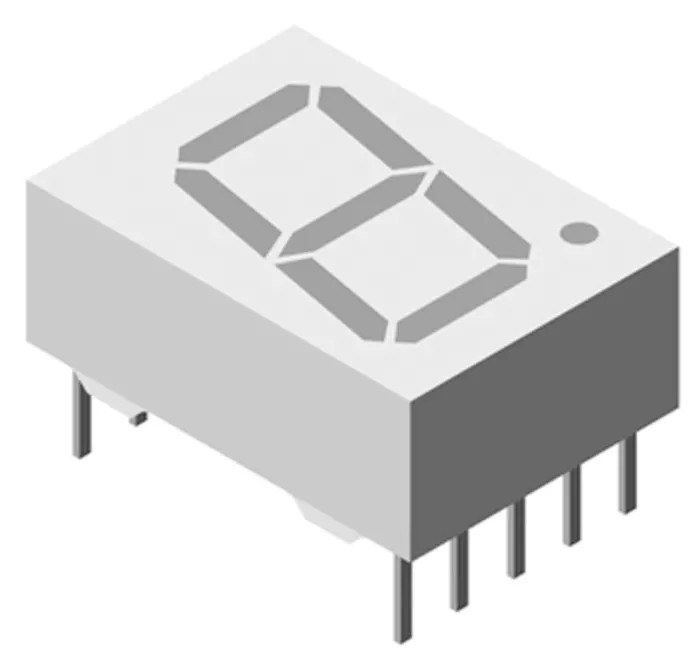

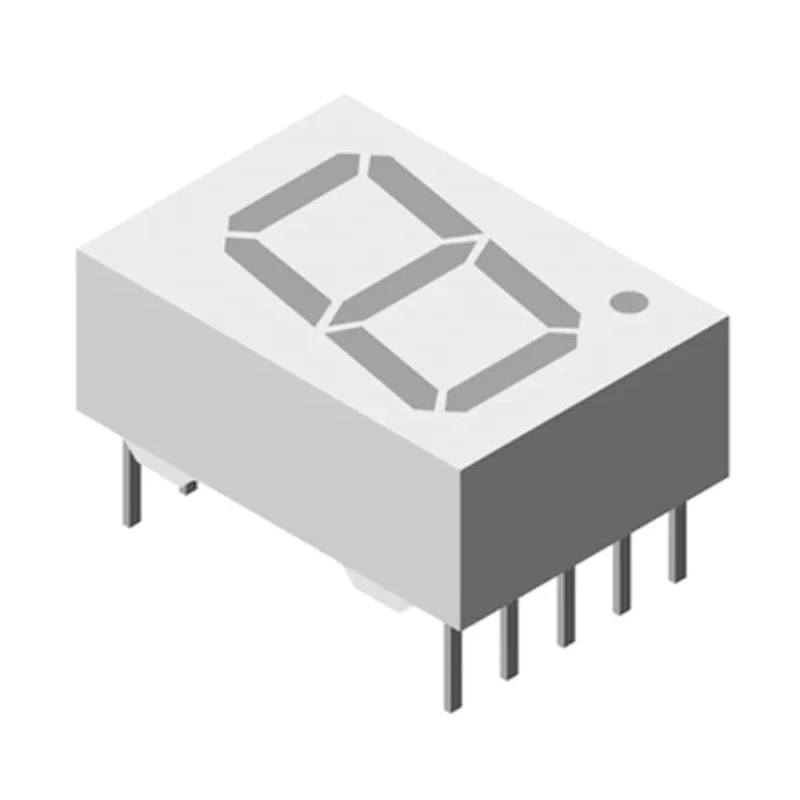

Vishay 1 7 Segment LED Display Cathode Red 3.6mcd Right Side 10 mm TDSR1060
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Vishay |
| Model | TDSR1060 |
| Mount Type | Through Hole |
| Series | Low current |
| Character height | 10mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 9.7mm |
| External Height | 7mm |
| Power Dissipation | 185mW |
| Luminous Intensity | 3.6mcd |
| Standards/Approvals | RoHS Directive 2002/95/EC, WEEE 2002/96/EC |
| LED Colour | Red |
| Dominant Wavelength | 640nm |
| Colour of Face | Grey |
| Forward Voltage | 1.8V |
| Forward Current | 10mA |
| Number of Characters | 1 |
| Character Width | 6mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- Compact single digit display with 7 segments ensures precise visual output.
- Red LED emits at a dominant wavelength of 640nm and luminous intensity of 3.6mcd.
- Character dimensions are 6mm width and 10mm height for clear readability.
- External size measures 9.7mm width by 7mm height, suitable for compact applications.
- Designed for operation from -40°C to 85°C for industrial robustness.
- Low current series with typical forward voltage of 1.8V and forward current of 10mA.
- Power dissipation rated at 185mW ensures energy efficiency.
- Decimal point oriented on the right side to facilitate numeric display formatting.
Product Description
Vishay TDSR1060 is a high quality single digit 7-segment LED display component designed for clear and efficient numeric visualization in electronic circuits. Featuring a common cathode configuration and red LED segments with a luminous intensity of 3.6mcd, this display provides excellent visibility with a dominant wavelength of 640 nm.
The character size of 6mm width and 10mm height, along with an external dimension of 9.7mm by 7mm, makes the TDSR1060 ideal for integration in compact devices. Its through-hole mount type supports straightforward PCB assembly and reliable connections.
Engineered to operate reliably in a wide temperature range from -40°C to 85°C, it suits demanding industrial, laboratory, and commercial electronics applications. The device has a forward voltage of 1.8V and a forward current of 10mA, with power dissipation limited to 185mW for efficient energy use.
The decimal orientation is located on the right side, facilitating numeric formatting in digital readouts. The grey face colour enhances contrast, improving readability in various lighting conditions. Additionally, the product complies with environmental standards including RoHS and WEEE directives.
Vishay’s TDSR1060 7-segment LED display is widely utilized in electronic and electrical equipment, measurement instruments, and display modules in industrial automation systems. Compact single digit, 7-segment numeric display.
Red LED colour with 640 nm wavelength and 3.6mcd luminous intensity. Measuring 9.7mm width by 7mm height externally. Robust operating temperature range of -40°C to 85°C. Through-hole mount type for reliable circuit integration.
Low current input with 1.8V forward voltage and 10mA forward current. Decimal point oriented at the right side for numeric precision. Grey face colour for high contrast displays. Compliant with RoHS 2002/95/EC and WEEE 2002/96/EC environmental directives.
Suitable for industrial, laboratory, electronic component, and automation use cases. Explore more Vishay LED Display modules and components on EnvMart for quality electronics solutions.
