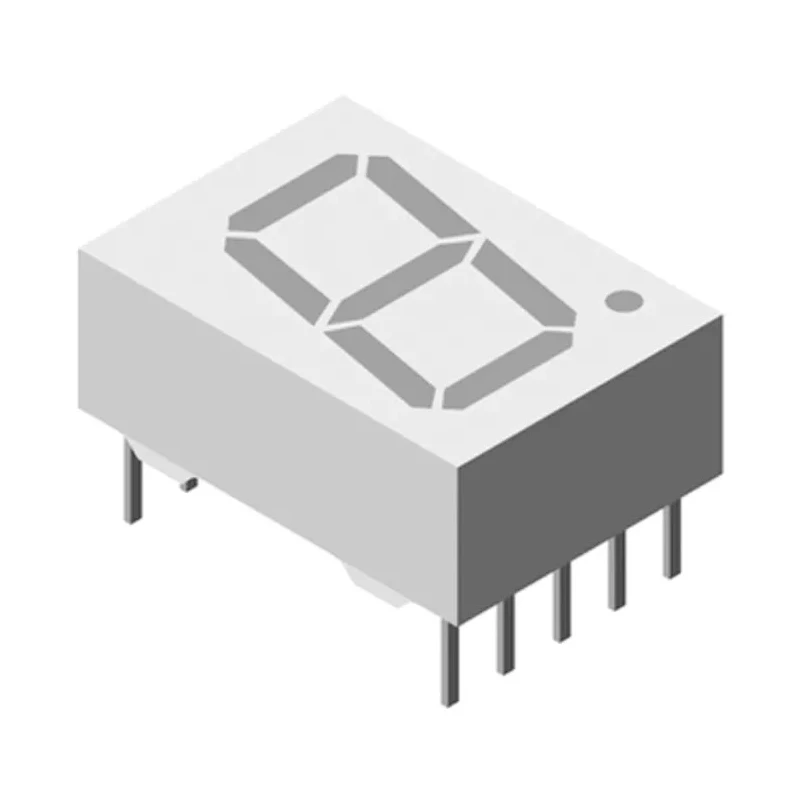

Vishay 1 Digit 7 Segment LED Display Green Anode, 9.5mcd Luminous Intensity, Through Hole Mounting TDSG5150

Vishay TDSG5150 7 Segment LED Display is a single digit, green LED display module designed for use in electronic and industrial applications requiring clear numeric visualization. Featuring a common anode configuration, this display provides reliable performance with a luminous intensity rating of 9.5mcd at a dominant wavelength of 575nm, ensuring bright visibility.

The display character has a width of 7.4mm and height of 13mm, with the decimal point oriented on the right side, making it suitable for numeric readouts, counters, and measurement instruments. It is mounted through a hole style for secure and durable installation.

Built to operate across a temperature range from -40°C to 85°C, the TDSG5150 is well suited for industrial, manufacturing, automation, and control system environments. Its grey face color enhances contrast, making the digits easy to read in diverse lighting contexts.

This display has an external dimension of 17.5mm in width and 7mm height, compact enough for integration in high-density electronic assemblies. Its power dissipation is rated at 550mW with a forward voltage of 2V and allowable forward current of 25mA, offering stable brightness with low power consumption.

Compliance with CE, IEC, RoHS, and EN standards ensures quality and safety in operation. The TDSG5150 is ideal for applications in industrial automation, laboratory instrumentation, and electronic device displays.

7 segment configuration displaying one digit clearly and efficiently. Green LED color with dominant wavelength of 575nm for vivid indication. Character width of 7.4mm and height of 13mm with decimal point on right side. Common anode type and through-hole mount for reliable installation.

Operates between -40°C to 85°C, suitable for industrial environments. External dimensions are 17.5mm width and 7mm height for compact placement. Low power dissipation of 550mW and forward voltage of 2V ensures energy efficiency.

Forward current rating is 25mA for stable and bright display. Grey face color provides good contrast and visibility in various lighting conditions.

This Vishay 7 segment LED display is an essential electronic component for precise numeric display needs. Explore more Vishay components and LED Display modules at EnvMart for your application requirements.
