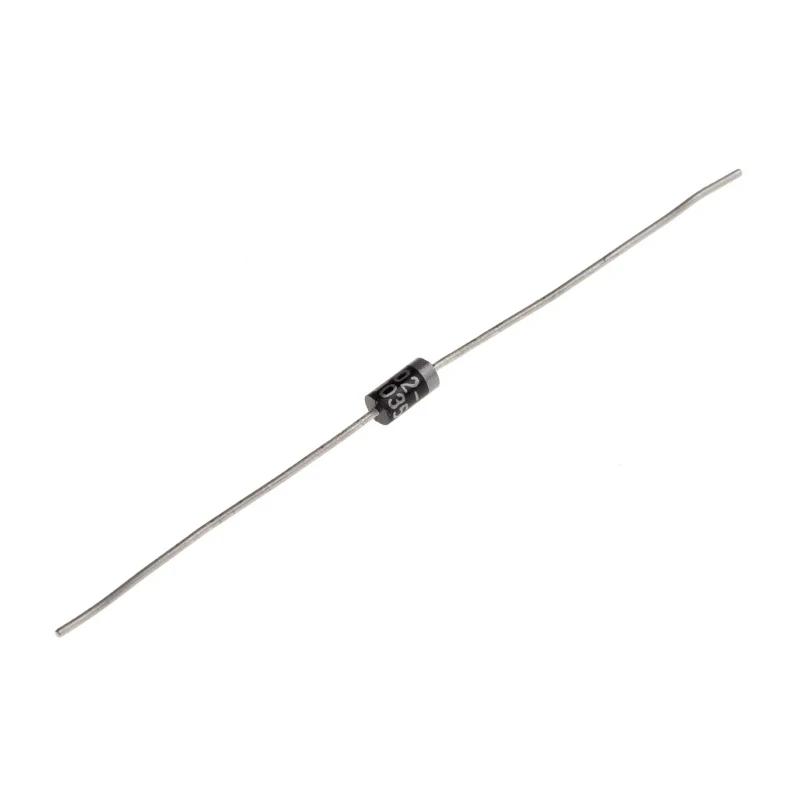

Vishay General Purpose Through Hole DO-204AL Diode 1600 V 500 mA RGP02-16E-E3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | RGP02-16E-E3 |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | RGP02-16E |
| Maximum Operating Temperature | 175°C |
| Case | DO-204AL, molded epoxy over glass body |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -65°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 1.8V |
| Peak Reverse Recovery Time trr | 300ns |
Key Features
- Glass passivated junction with superectifier structure for durability.
- Fast switching capability ensures high efficiency in circuits.
- Low leakage current with typical reverse current below 0.2 μA.
- Molded epoxy body with DO-204AL package for robust mechanical protection.
- Matte tin plated leads guarantee excellent solderability.
- Color band marking for cathode identification ensures correct polarity installation.
- Wide operating temperature range from -65°C to 175°C.
- High peak non-repetitive forward surge current rating of 20 A.
Product Description
Vishay RGP02-16E-E3 General Purpose Diode is a 2-pin diode designed with a superectifier structure and glass passivated junction for enhanced reliability and long service life. Featuring a through hole mount type and DO-204AL epoxy molded package, this diode is intended for high voltage rectification applications including snubber circuits in camera flash units and G2 grid CRTs and TVs.
The diode supports a maximum continuous forward current of 500 mA with a peak reverse repetitive voltage of 1600 V, suitable for robust semiconductor power applications. It has a maximum forward voltage drop of 1.8 V and exhibits a peak reverse recovery time of 300 ns, enabling fast switching for efficient circuit performance.
Designed to operate reliably in extreme conditions, it supports a temperature range of -65°C to 175°C and has a high surge current capability of 20 A. The epoxy molded case and matte tin plated leads provide robust mechanical and soldering features, meeting strict flammability and solderability standards.
This diode complies with RoHS directives and automotive grade AEC-Q101 requirements, ensuring suitability for industrial, automotive, and commercial electronics manufacturing environments. Its compact size with a length of 5.2 mm and diameter of 2.7 mm allows integration in dense circuit designs.
Glass passivated junction with superectifier structure for high durability. Fast switching for improved electrical efficiency and performance. Extremely low leakage current minimizes power loss in circuits. DO-204AL molded epoxy package meets UL 94 V-0 flammability rating.
Matte tin plated leads ensure good solderability per industry standards. Color coded cathode end simplifies correct installation polarity. Wide operating temperature range from -65°C to 175°C for harsh environments. High peak surge current tolerances suitable for demanding transient conditions.
Fully compliant with RoHS and automotive AEC-Q101 standards. Compact and robust design suitable for electronic components manufacturing.
This diode finds applications in industrial, commercial, automotive, and consumer electronics for power rectification and protection. Its specifications make it ideal for use in semiconductor, power supplies, display systems, and fast switching circuits requiring reliability and efficiency.
