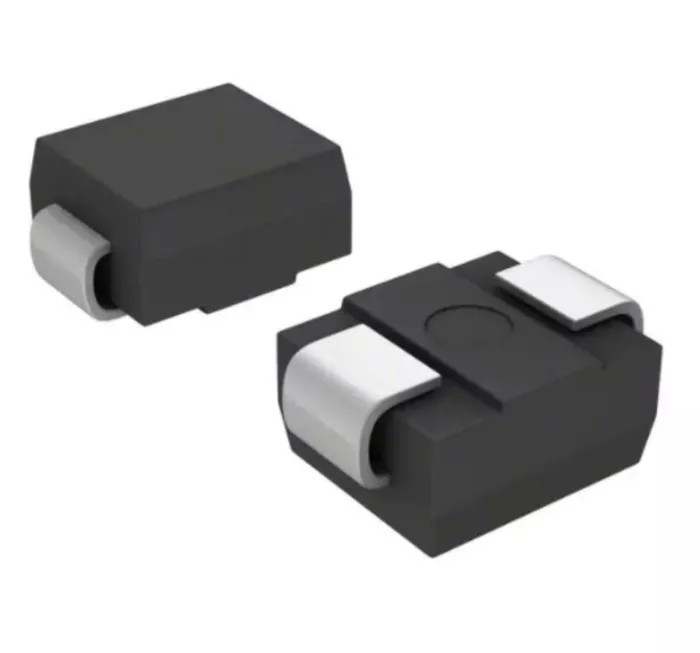

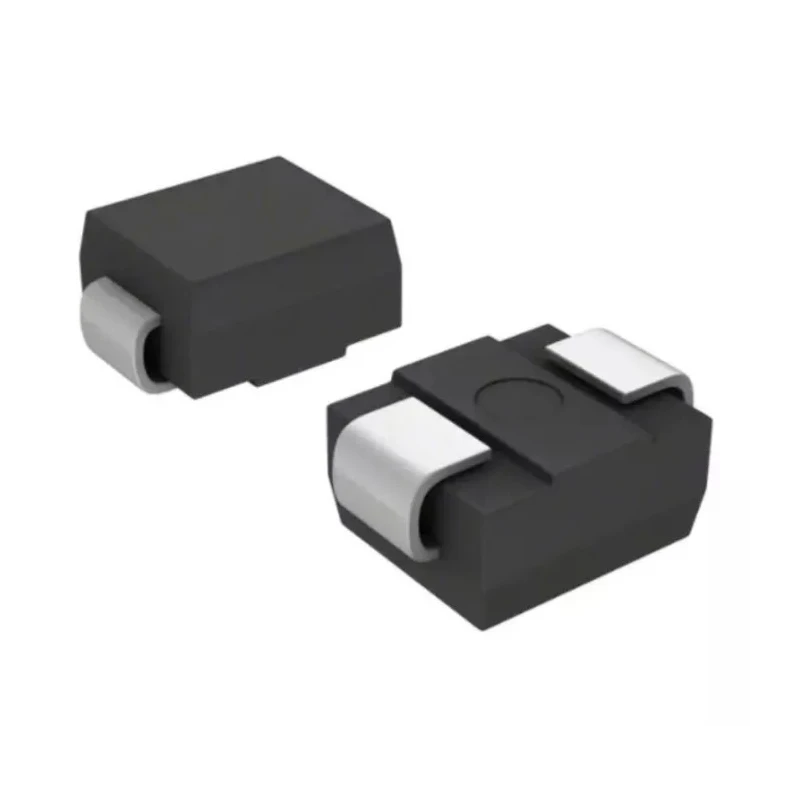

Vishay 100 V 2 A General Purpose Diode Surface Mount DO-214AA Package ES2B-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | ES2B-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | ES2B |
| Maximum Operating Temperature | 150°C |
| Case | DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode end |
| Terminals | Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 30ns |
| Vishay 50V 2A, Silicon Junction Diode, 2-Pin DO-214AA ES2ABrand | Vishay |
Key Features
- This diode features a glass passivated chip junction for durability.
- It has an ultrafast reverse recovery time of 30 nanoseconds.
- The device offers low forward voltage drop, reducing power losses.
- It supports a maximum continuous forward current of 2 A.
- The peak reverse repetitive voltage rating is 100 V.
- The peak non-repetitive forward surge current is 50 A.
- The package dimensions are 4.57 mm length, 3.94 mm width, and 2.24 mm height.
- The diode is rated for operation from -55 °C to 150 °C.
Product Description
Vishay ES2B-E3/52T is a high-performance 100 V 2 A general purpose diode designed for surface mount applications with the DO-214AA package. It features a glass passivated chip junction that enhances reliability and long-term stability in electronic circuits. This diode is ideal for ultrafast switching and high-frequency rectification needs in consumer electronics, computers, telecommunications, and power supply converters.
With an ultrafast reverse recovery time of 30 nanoseconds and a low forward voltage drop of approximately 900 millivolts, the ES2B-E3/52T diode minimizes switching losses and increases overall system efficiency. It is capable of handling continuous forward currents up to 2 A and withstanding reverse repetitive voltages up to 100 V. The robust package maintains performance across a broad temperature range from -55 °C up to 150 °C.
The device package conforms to DO-214AA and is designed with matte tin-plated leads for ease of soldering, meeting J-STD-002 and JESD 22-B102 standards. It meets automotive standard AEC-Q101 and the E3 suffix indicates compliance with JESD 201 class 1A whisker test, ensuring suitability for automotive and industrial applications. The moulding compound meets UL 94 V-0 flammability rating, enhancing safety in various environments.
Typical applications include use in switching mode power supplies, inverters, consumer electronic devices, and telecommunications equipment, where efficient, reliable ultrafast rectification is essential.
Glass passivated chip junction for enhanced durability. Ultrafast reverse recovery time reduces switching losses. Low forward voltage drop improves efficiency. High forward surge capability for reliability under stress. Surface mount DO-214AA package with standard dimensions.
Wide operating temperature range from -55 °C to 150 °C. Automotive qualified per AEC-Q101 standards. Lead finish assures professional solderability. Color-coded polarity for easy assembly. Explore additional Vishay semiconductor products and components on EnvMart for comprehensive electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2 A.
This diode is packaged in a DO-214AA surface mount package.
The forward voltage drop is approximately 900 millivolts.
It can operate within a temperature range of -55 °C to 150 °C.
This diode complies with the automotive standard AEC-Q101.
It can handle a peak non-repetitive forward surge current of 50 A.
The package dimensions are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
It features matte tin-plated leads that are solderable per J-STD-002 and JESD 22-B102.
The polarity is indicated by a color band that denotes the cathode end.
