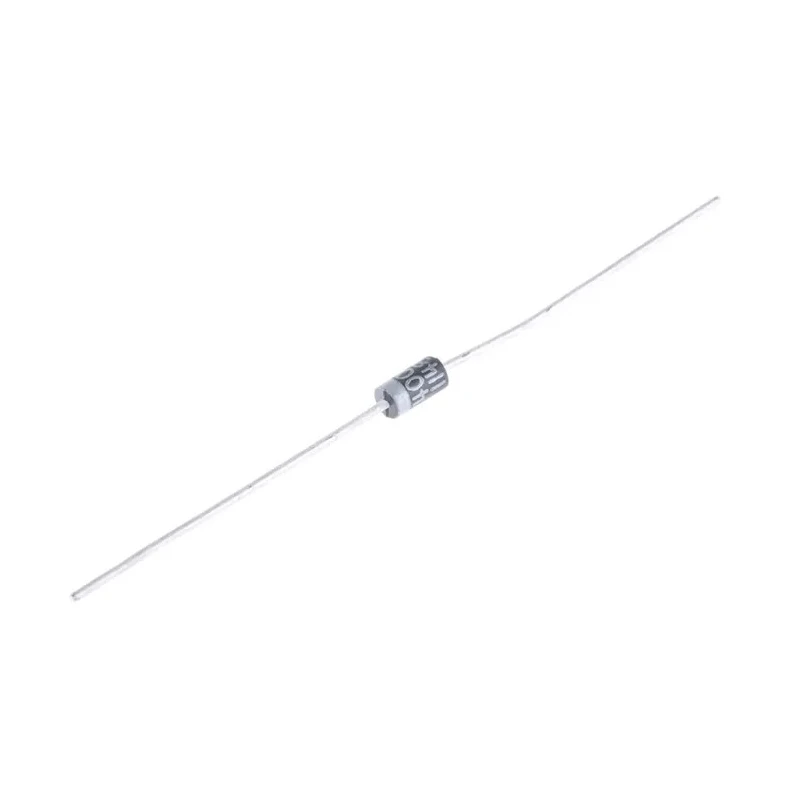

Vishay 800 V 1 A General Purpose Silicon Diode 2-Pin DO-204AL UF4006-E3/54

Free Delivery in India | Lowest Global Shipping Charges

Vishay 800 V 1 A General Purpose Silicon Diode 2-Pin DO-204AL UF4006-E3/54

Name: Vishay 800 V 1 A General Purpose Silicon Diode 2-Pin DO-204AL UF4006-E3/54
Brand: Vishay
SKU: 343328
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	2.7mm
Brand	Vishay
Height	2.7mm
Length	5.2mm
Model	UF4006-E3/54
Width	2.7mm
Mount Type	Through Hole
Series	UF400
Maximum Operating Temperature	150°C
Package Type	DO-204AL
Minimum Operating Temperature	-55°C
Standards/Approvals	JESD 201 Class 1A, UL 94 V-0, RoHS
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	800V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.7V
Peak Reverse Recovery Time trr	75ns
Vishay 800V 1A, Silicon Junction Diode, 2-Pin DO-204AL UF4006Brand	Vishay
Vishay Diode, UF4007Brand	Vishay

Key Features

The diode has a peak reverse current of 10 microamperes, ensuring low leakage current.
It features a peak non-repetitive forward surge current rating of 30A for transient conditions.
Maximum forward voltage drop is 1.7V, optimizing power efficiency.
Ultrafast recovery time of 75 nanoseconds ensures high-speed switching performance.
Operating temperature range extends from -55°C to 150°C, suitable for harsh environments.
The diode is mounted through-hole for easy PCB integration.
Package dimensions are compact with 2.7mm diameter and width, and 5.2mm length.
Compliant with JESD 201 Class 1A, UL 94 V-0, and RoHS standards.

Product Description

Vishay UF4006-E3/54 is a high-quality general purpose silicon diode encapsulated in a 2-pin DO-204AL through-hole package. It supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 800 volts. Designed for reliable performance, it features an ultrafast recovery time of 75 nanoseconds, making it ideal for high-frequency switching applications such as switched mode power supplies, inverters, and freewheeling diode circuits.

The diode exhibits a low peak reverse current of 10 microamperes and can withstand peak non-repetitive forward surge currents up to 30 amperes, ensuring robustness under transient conditions. Its maximum forward voltage drop is 1.7 volts, promoting efficient power handling.

Operating temperatures range from -55°C to 150°C, allowing usage in demanding industrial and commercial environments. The compact package measures 2.7mm in diameter and width and 5.2mm in length, facilitating space-efficient PCB designs.

It is a trusted choice for electronic engineers and technicians working within semiconductor, power electronics, and discrete component domains. The diode has a peak reverse current of 10 microamperes, ensuring low leakage current.

It features a peak non-repetitive forward surge current rating of 30A for transient conditions. Maximum forward voltage drop is 1.7V, optimizing power efficiency. Ultrafast recovery time of 75 nanoseconds enables high-speed switching.

Operating temperature range from -55°C to 150°C. Through-hole mounting offers ease of installation. Compact 2.7mm diameter and 5.2mm length package. Certified RoHS compliant and meets UL 94 V-0 flammability rating. Designed for switched mode power supplies, inverters, and freewheeling diode applications.

Explore the full range of Vishay semiconductor diodes at EnvMart for your industrial and commercial electronics needs.
