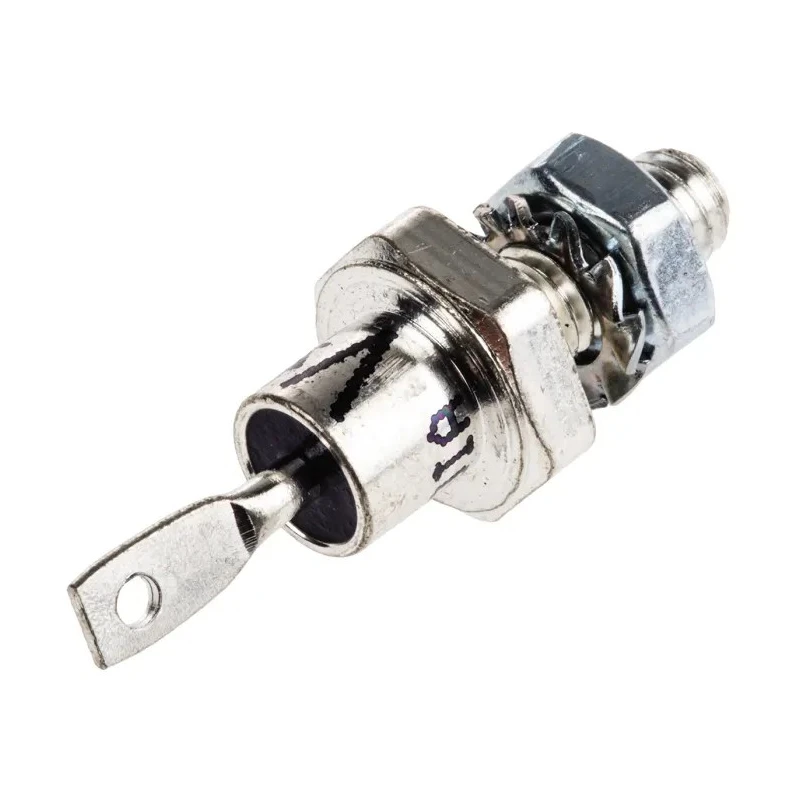

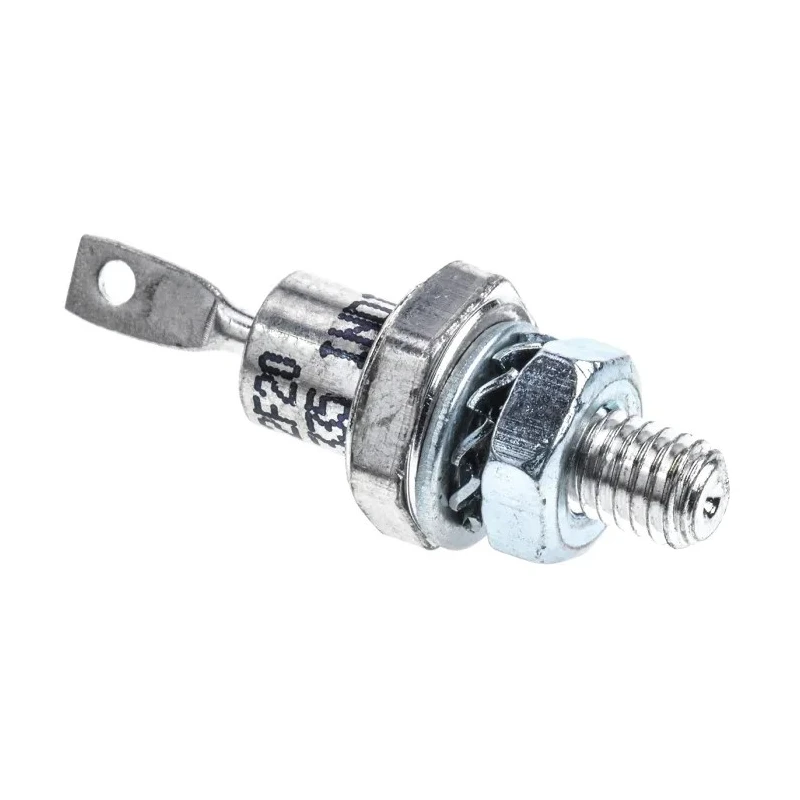

Vishay 200 V 12 A Standard Recovery Diode, Stud Cathode, 2-Pin DO-203AA VS-12F20
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-12F20 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-12F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 1.26V |
| Vishay Switching Diode, Stud Cathode, 2-Pin DO-4 12F20Brand | Vishay |
Key Features
- Offers maximum continuous forward current of 12 amps for high power handling.
- Supports peak reverse repetitive voltage of 200 volts ensuring robust reverse voltage tolerance.
- Standard recovery diode type suitable for efficient switching and rectification.
- Compact DO-203AA package with dimensions 31.8 mm height, 12.69 mm length, and 11 mm diameter.
- Rated for peak non-repetitive forward surge current up to 280 amps for transient overloads.
- Wide operating temperature range from -65°C to 175°C for versatile environmental use.
- Maximum forward voltage drop is 1.26 volts aiding in efficient conduction.
- Stud cathode diode configuration facilitates easy mounting and connection.
Product Description
Vishay VS-12F20 is a standard recovery power diode with a stud cathode configuration housed in a 2-pin DO-203AA screw mount package. It is designed to deliver a maximum continuous forward current of 12 A with a peak reverse repetitive voltage rating of 200 V, making it suitable for high current rectification in industrial power conversion and electronic circuits.
The diode features a compact cylindrical form factor measuring 31.8 mm in height, 12.69 mm in length, and 11 mm diameter, allowing flexible mounting in a broad spectrum of applications. Its rugged design ensures a broad operating temperature range from -65°C to 175°C, enabling reliable use in harsh environments.
The standard recovery type diode offers efficient switching characteristics with a maximum forward voltage drop of 1.26 V, improving energy efficiency in rectifier circuits. The device can withstand peak non-repetitive forward surge currents up to 280 A, protecting against transient overload conditions commonly encountered in power electronics.
This Vishay diode has a stud cathode configuration that supports easy screw mount installation, adding convenience to equipment assembly and maintenance tasks. Its 2-pin design adheres to familiar DO-203AA package standards widely used in power semiconductor components.
Maximum continuous forward current of 12 A. Peak reverse repetitive voltage rating of 200 V. Peak non-repetitive forward surge current rating of 280 A. Maximum forward voltage drop of 1.26 V. Operating temperature range from -65°C to 175°C.
Compact DO-203AA package dimensions: 31.8 mm height, 12.69 mm length, 11 mm diameter. Standard recovery rectifier diode technology. Stud cathode 2-pin screw mount configuration.
This diode is ideal for industrial power rectification, power supplies, electric motor drives, and other applications requiring reliable, high-current, and high-voltage diode performance. It is commonly used in electronic, electrical, manufacturing, and construction industries, providing effective rectification and protection functions.
Explore Vishay products and the Standard Recovery Switching Diode category on EnvMart for a wide range of semiconductor solutions designed to meet stringent industrial requirements.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 12 A.
It has a peak reverse repetitive voltage rating of 200 V.
The diode can withstand a peak non-repetitive forward surge current of up to 280 A.
The maximum forward voltage drop is 1.26 V.
The dimensions of the DO-203AA package are 31.8 mm in height, 12.69 mm in length, and 11 mm in diameter.
It operates within a temperature range of -65°C to 175°C.
This model is classified as a standard recovery diode.
The diode features a stud cathode configuration, which facilitates easy mounting and connection.
This diode has a pin count of 2.
The country of origin for this diode is India.
It is suitable for industrial power rectification, power supplies, and electric motor drives.
This model uses a screw mount type for installation.
