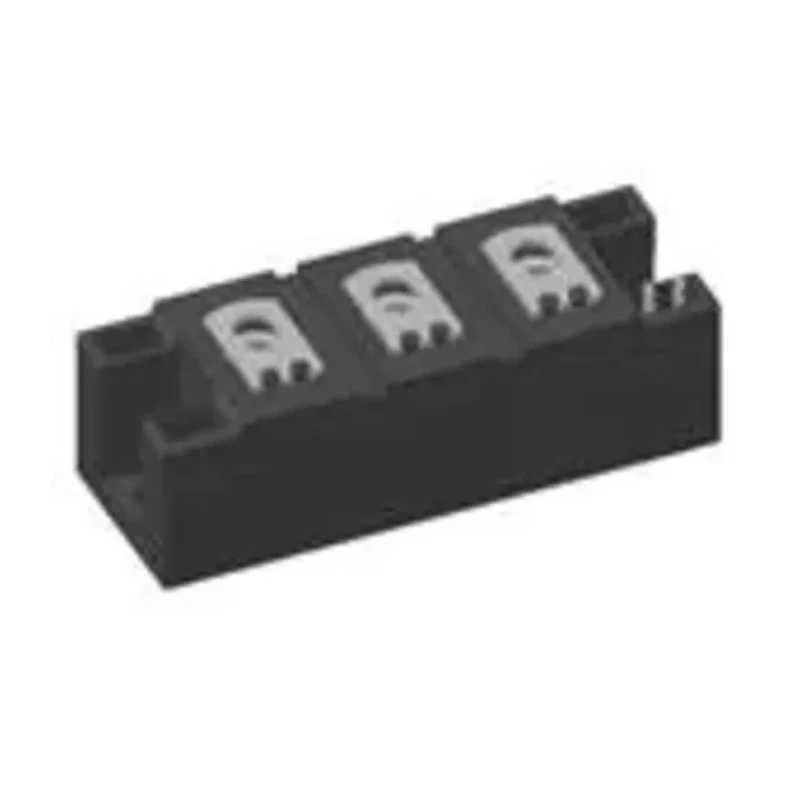

IXYS Thyristor Module 1600 V 8.6 kA 216 A 150 mA 1.2 V 5-Pin MCD200-16IO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 30mm |
| Length | 94mm |
| Model | MCD200-16IO1 |
| Width | 34mm |
| Mount Type | Panel |
| Maximum Operating Temperature | 125°C |
| Pin Count | 5 |
| Rated Average On-State Current Irms | 216A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 8.6kA |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Holding Current Ih | 150mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.2V |
| Repetitive Peak Off-State Current | 15mA |
Key Features
- This module features a maximum rated average on-state current of 216 A for reliable conduction.
- Equipped with a panel mount type for easy integration into power systems.
- Includes five pins for versatile electrical connections.
- Operating temperature maximum is 125°C ensuring stable performance under demanding conditions.
- The module utilizes a Direct Copper Bonding ceramic base plate for effective thermal management.
- Maximum gate trigger current and holding current are 150 mA for precise control.
- Designed with a repetitive peak reverse voltage of 1600 V and peak on-state voltage of 1.2 V.
- Compact dimensions of 94 mm length, 34 mm width, and 30 mm height support efficient use of space.
Product Description
IXYS MCD200-16IO1 Thyristor Module is a panel mount semiconductor device rated for 1600 V voltage and a surge current rating of 8.6 kA, supporting an average on-state current of 216 A. Its 5-pin configuration and direct copper bonding ceramic base plate ensure robust electrical and thermal performance.
This module is engineered for applications such as battery chargers, welders, plating equipment, regulated power supplies, and temperature and speed control circuits in industrial, manufacturing, and power electronics sectors.
The device supports maximum gate trigger and holding currents of 150 mA, with a gate trigger voltage of 2 V, enabling precise switching control. Its operational temperature limit of 125°C allows use in demanding environments.
Compact dimensions of 94 mm length, 34 mm width, and 30 mm height facilitate installation in limited spaces, while the repetitive peak off-state current of 15 mA accommodates high-frequency switching demands.
This module features a maximum rated average on-state current of 216 A for reliable conduction. Equipped with a panel mount type for easy integration into power systems. Includes five pins for versatile electrical connections.
Operating temperature maximum is 125°C ensuring stable performance under demanding conditions. The module utilizes a Direct Copper Bonding ceramic base plate for effective thermal management. Maximum gate trigger current and holding current are 150 mA for precise control.
Designed with a repetitive peak reverse voltage of 1600 V and peak on-state voltage of 1.2 V. Compact dimensions of 94 mm length, 34 mm width, and 30 mm height support efficient use of space.
This IXYS Thyristor Module is ideal for industrial, laboratory, HVAC, manufacturing, and power electronics applications that require reliable high current and voltage switching capabilities.
Explore the Electronics & Electricals category for more high-quality semiconductor components and power modules on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rated average on-state current for this module is 216 A, ensuring reliable conduction in various applications.
The repetitive peak reverse voltage of this model is 1600 V, allowing it to handle high voltage applications effectively.
This unit has compact dimensions of 94 mm in length, 34 mm in width, and 30 mm in height, facilitating installation in limited spaces.
The surge current rating for this thyristor module is 8.6 kA, making it suitable for handling high transient currents.
The maximum operating temperature for this model is 125°C, ensuring stable performance under demanding conditions.
This module features a 5-pin configuration, providing versatile electrical connections for various applications.
The maximum gate trigger current for this module is 150 mA, allowing for precise control in switching applications.
This thyristor module is engineered for applications such as battery chargers, welders, plating equipment, and regulated power supplies.
The peak on-state voltage for this thyristor module is 1.2 V, which is crucial for its operation in power electronics.
The maximum holding current for this model is also 150 mA, ensuring effective control during operation.
This module is designed for panel mounting, facilitating easy integration into power systems.
The maximum repetitive peak off-state current for this model is 15 mA, accommodating high-frequency switching demands.
