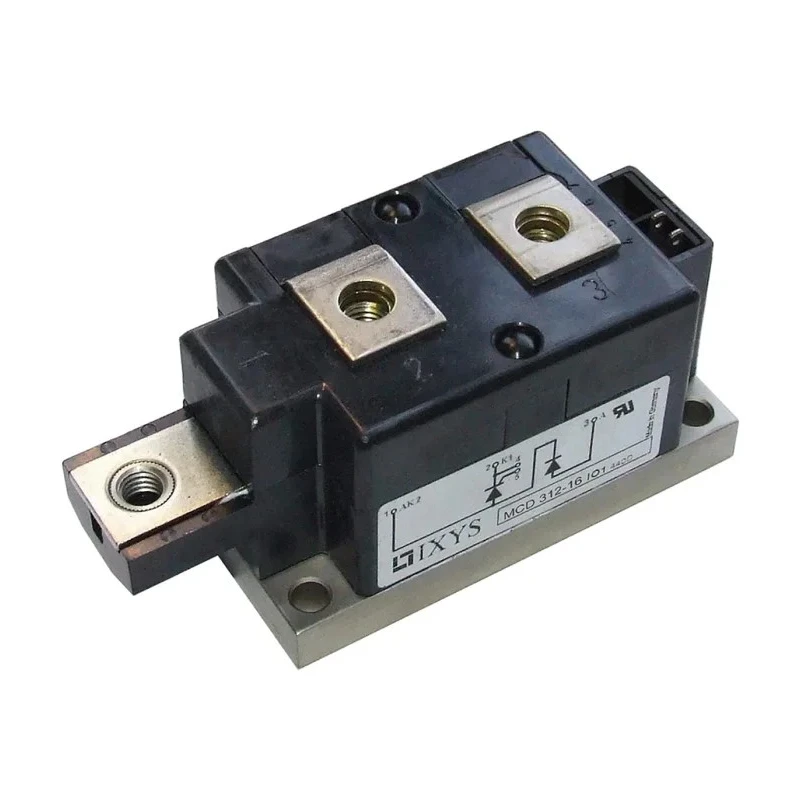

IXYS Thyristor Module 320A 1600V 10.1kA Surge Current Panel Mount 5-Pin MCD312-16IO1

The IXYS MCD312-16IO1 Thyristor Module is a robust semiconductor device engineered for high current and voltage control applications. It features a rated average on-state current of 320 amperes and a repetitive peak reverse voltage of 1600 volts, making it suitable for demanding industrial power control systems. The module supports surge currents up to 10.1 kiloamperes, ensuring resilience against transient electrical spikes common in heavy-duty equipment.

Designed for panel mounting, this module has a compact 5-pin configuration, providing easy integration into existing electronic assemblies. The maximum gate trigger and holding currents are both rated at 150 milliamperes, facilitating precise triggering and reliable switching under various load conditions. Its peak on-state voltage of 1.32 volts contributes to low conduction losses and efficient operation.

With dimensions of 115mm length, 50mm width, and 49mm height, and a maximum operating temperature of 140°C, the module is optimized for industrial environments where space and thermal management are critical. The direct copper bonding on the ceramic base plate offers superior heat transfer and electrical isolation, enhancing durability and performance.

This Thyristor Module is ideally applied in battery chargers, welding machines, plating equipment, regulated power supplies, as well as temperature and speed control circuits in manufacturing and industrial automation. Certified as a UL recognised component, it assures compliance with rigorous quality and safety standards.

Panel mounting configuration with 5 pins for secure electrical connection and mechanical stability. High surge current rating of 10.1 kA to manage transient load spikes without damage. Electrically isolated ceramic base with direct copper bonding for improved heat dissipation.

Compact and robust design facilitating integration in confined industrial equipment spaces. Operating temperature up to 140°C suitable for harsh and variable environments. UL recognised certification ensures compliance with industry safety and quality requirements.

Suitable for use in battery chargers, welders, plating machinery, and regulated power supplies. Efficient switching characteristics with low gate trigger and holding currents. Reliable performance for industrial, manufacturing, and commercial applications requiring silicon-controlled rectifiers.
