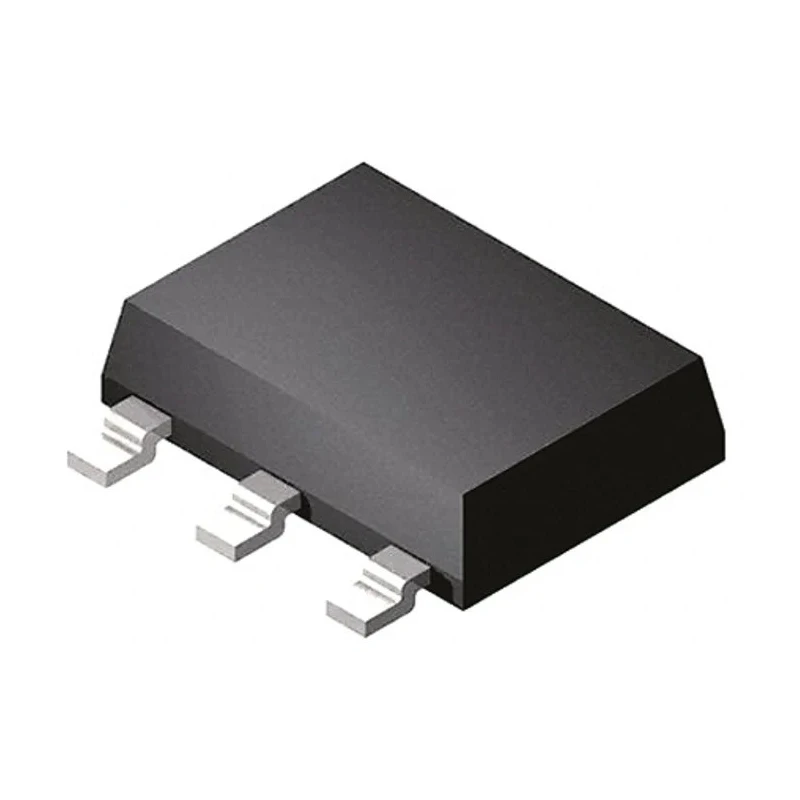

DiodesZetex N-Channel MOSFET, 15.4 A, 30 V Enhancement Mode, 4-Pin SOT-223 Package DMN3032LE-13

DiodesZetex DMN3032LE-13 is a high performance N-Channel MOSFET with an enhancement mode channel designed for surface mount applications. It delivers a maximum continuous drain current of 15.4 A and can withstand a maximum drain-source voltage of 30 V, supporting efficient and reliable switching in power electronic circuits.

Packaged in a compact 4-pin SOT-223, this MOSFET offers low on-resistance (35 mΩ max) and dissipates up to 1.8 W of power while operating within temperatures ranging from -55°C to 150°C, making it suitable for industrial, automotive, and power management systems.

The DMN3032LE-13 is compliant with the automotive AEC-Q101 standard, ensuring reliable operation in automotive electronics. Its low forward voltage of 0.7 V enhances circuit efficiency, while the moderate gate charge of 11.3 nC enables fast switching speeds. The surface mount design simplifies integration into compact PCB layouts.

Physical dimensions measure 6.55 mm in length, 3.55 mm in width, and 1.65 mm in height, suitable for space-constrained designs. Key applications include power regulation, load switching, and automotive electronics where durability and performance are required.

This enhancement mode N-Channel MOSFET supports a continuous drain current of 15.4 A. Maximum drain-source voltage rating is 30 V, suitable for low-voltage power circuits. It features a low maximum Rds(on) of 35 milliohms for reduced conduction losses.

Compact surface mount 4-pin SOT-223 package simplifies PCB integration. Maximum power dissipation of 1.8 watts allows moderate thermal management. Operation from -55°C to 150°C supports harsh environments and automotive use.

Certified to automotive AEC-Q101 standard ensuring reliability in vehicles. Typical gate charge of 11.3 nanocoulombs ensures effective switching. Physical dimensions: 6.55 mm length, 3.55 mm width, 1.65 mm height.

Ideal for use in industrial, automotive, power management, and electronic control systems. The product combines high current capacity with low voltage rating for effective switching in compact devices and PCBs.

EnvMart features a wide range of semiconductor devices including MOSFETs like this DiodesZetex DMN3032LE-13 model, ideal for engineers and professionals in electronics design and manufacturing.
