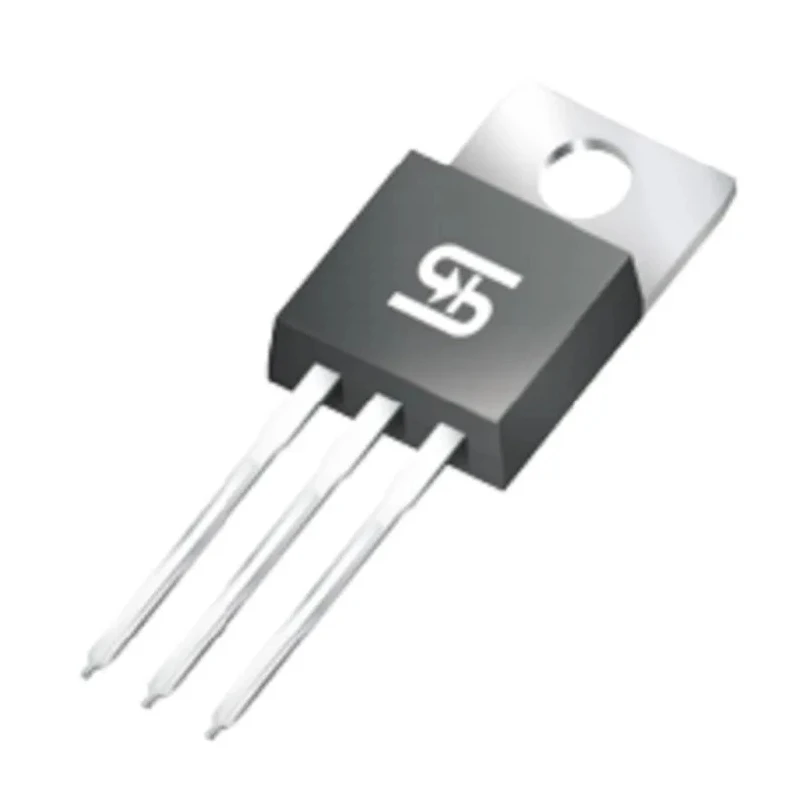

Taiwan Semiconductor 60 V 30 A Dual Die Trench Schottky Rectifier TO-220AB TST30L60CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Model | TST30L60CW |
| Mount Type | Through Hole |
| Series | TST30L60CW |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Dual Dies |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.98V |
Key Features
- Features a TO-220AB package suitable for through-hole mounting.
- Maximum continuous forward current of 30 amperes ensures robust performance.
- Designed for peak reverse repetitive voltage of 60 volts.
- Low forward voltage drop of 0.98 volts enhances efficiency and reduces power loss.
- Operates reliably from -55°C up to a maximum of 150°C.
- High forward surge current rating of 100 amperes for transient conditions.
- Employs patented trench Schottky technology to optimize heat stability.
- Halogen-free and RoHS compliant for environmental safety.
Product Description
Taiwan Semiconductor TST30L60CW is a high-performance dual die trench Schottky rectifier diode housed in a TO-220AB package, designed for through-hole mounting applications. It delivers a maximum continuous forward current of 30 A and supports a peak reverse repetitive voltage of 60 V, making it suitable for medium-power rectification in electronic circuits.
Its low forward voltage drop of 0.98 V provides excellent energy efficiency by minimizing conduction losses. The device operates reliably over a wide temperature range from -55°C to 150°C, with a peak non-repetitive forward surge current capability of 100 A, which allows handling of transient surges effectively.
The patented trench Schottky design contributes to superior high temperature stability and enhanced performance. The device complies with RoHS standards and is halogen-free according to IEC 61249-2-21, supporting environmentally conscious manufacturing.
Common applications include switching mode power supplies (SMPS), adapters, and DC to DC converters in industrial, commercial, and electronic equipment designs. This rectifier provides low power loss and high efficiency, delivering high forward surge capabilities for reliable operation under dynamic electrical loads.
TO-220AB package with through-hole mount type facilitates easy PCB integration. Maximum continuous forward current rating of 30 A supports heavy current applications. Low forward voltage drop of 0.98 V ensures high efficiency.
Wide operating temperature range from -55°C to 150°C guarantees versatility. Peak surge current rating of 100 A handles transient electrical stresses. Dual die diode configuration enhances performance and reliability. Patented trench Schottky technology improves thermal stability.
Compliance with RoHS and halogen-free standards supports eco-friendly designs. Designed for industrial and commercial semiconductor uses. Explore more electronic components and semiconductors in the Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 30 amperes.
The forward voltage drop is 0.98 volts, which enhances efficiency and reduces power loss.
It operates reliably from -55°C to a maximum of 150°C.
The peak non-repetitive forward surge current rating is 100 amperes.
This model comes in a TO-220AB package suitable for through-hole mounting.
It features a dual die diode configuration, enhancing performance and reliability.
Yes, it is RoHS compliant and halogen-free according to IEC 61249-2-21.
The patented trench Schottky technology optimizes heat stability and enhances performance.
The country of origin for this model is India.
