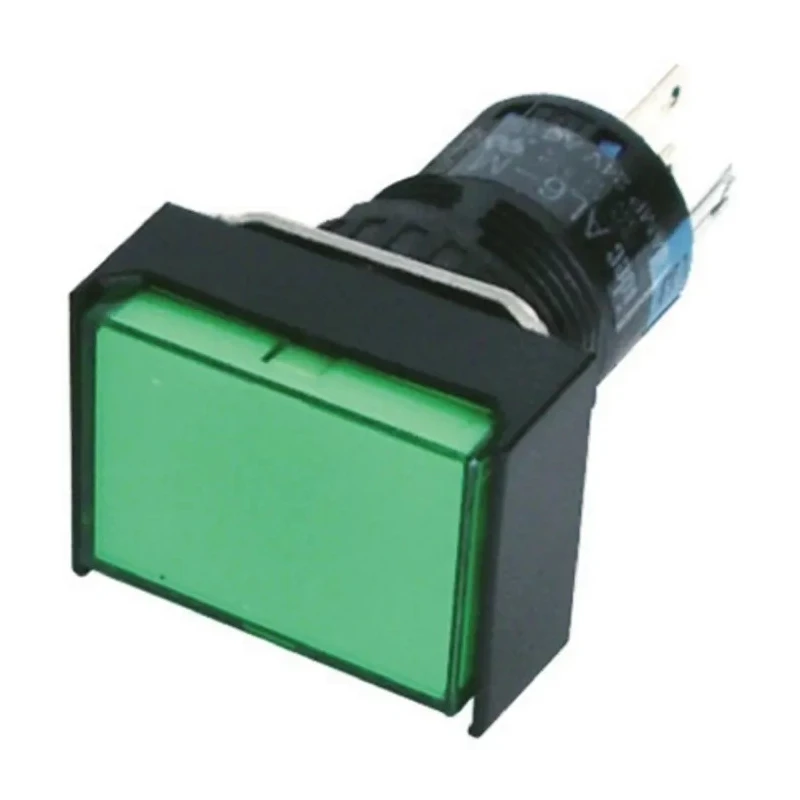

Idec AL Series Illuminated Push Button Switch Momentary Panel Mount 16 mm Cutout DPDT Green LED IP40 250 V ac AL6H-M24-G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Idec |
| Length | 22mm |
| Model | AL6H-M24-G |
| IP Rating | IP40 |
| Width | 18mm |
| Mount Type | Panel |
| Series | AL |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect, Solder Tag |
| Standards/Approvals | CSA, UL |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Actuator Style | Button |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates momentarily with a snap-action button actuator in white color.
- It features a double pole double throw (DPDT) contact configuration for versatile electrical control.
- Designed for panel mounting with a 16 mm cutout size providing easy installation.
- Illumination is provided by a green LED to indicate operational status.
- The switch has an IP40 ingress protection rating suitable for environments with limited dust protection.
- Rated for 250 V AC voltage and 1 A contact current appropriate for low-power control circuits.
- Features quick connect and solder tag terminal types for secure electrical connections.
- Operates reliably within temperature ranges from -25°C minimum to 120°C maximum.
Product Description
Idec AL6H-M24-G is an AL Series illuminated push button switch designed for momentary operation in panel mounting applications. It requires a 16 mm cutout and features a DPDT contact configuration, making it suitable for complex switching operations in industrial control, automation, and electrical equipment.
The white button actuator with green LED illumination provides clear visual feedback for system operators. The switch supports a contact AC voltage of 250 V and a contact current rating of 1 A, making it apt for signaling and control circuits.
This switch can operate reliably in wide temperature conditions from -25°C to 120°C and is built to IP40 protection standards, which offer basic dust protection suitable for indoor industrial environments.
Terminal options include quick connect and solder tag, enabling flexible and secure installation tailored for various wiring practices. The device complies with CSA and UL standards ensuring quality and safety in demanding environments.
With compact dimensions of 22 mm in length and 18 mm width, this switch supports ergonomically designed control panels where space is critical. The switch operates momentarily with a snap-action button actuator in white color.
It features a double pole double throw (DPDT) contact configuration for versatile electrical control. Designed for panel mounting with a 16 mm cutout size providing easy installation. Illumination is provided by a green LED to indicate operational status.
The switch has an IP40 ingress protection rating suitable for environments with limited dust protection. Rated for 250 V AC voltage and 1 A contact current appropriate for low-power control circuits. Features quick connect and solder tag terminal types for secure electrical connections.
Operates reliably within temperature ranges from -25°C minimum to 120°C maximum. Compact dimensions with length 22 mm and width 18 mm enable space-saving panel designs. Certified to CSA and UL standards ensuring compliance and safety.
This Idec push button switch is ideal for industrial automation, manufacturing equipment control, HVAC systems, electrical panels, and machinery where reliable momentary switching with visual indication is necessary.
Explore more AL Series switches and components at EnvMart for your automation and control equipment projects.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, allowing for versatile electrical control in various applications.
It can operate reliably at a maximum temperature of 120°C, making it suitable for a range of industrial environments.
This unit is rated for a contact AC voltage of 250 V and a contact current of 1 A, appropriate for low-power control circuits.
The switch has compact dimensions of 22 mm in length and 18 mm in width, making it suitable for space-constrained panel designs.
It features quick connect and solder tag terminal types, allowing for flexible and secure electrical connections.
The switch has an IP40 ingress protection rating, which provides basic dust protection suitable for indoor industrial environments.
This model requires a 16 mm cutout size for installation in panel mounting applications.
The switch is illuminated by a green LED, providing clear visual feedback for operational status.
It can operate reliably at a minimum temperature of -25°C, allowing for use in colder environments.
This switch complies with CSA and UL standards, ensuring quality and safety in demanding environments.
The actuator is a button style in white color, designed for momentary operation.
This model is suitable for applications in industrial automation, manufacturing equipment control, HVAC systems, and electrical panels.
