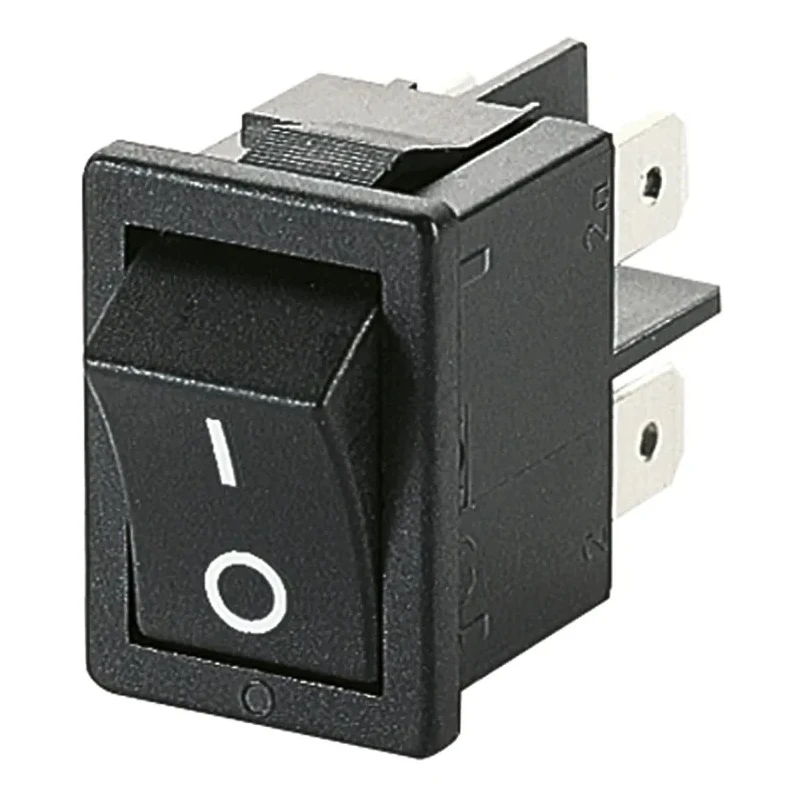

Marquardt DPST On-Off On-Off Rocker Switch Panel Black Actuator Polyamide Housing 10A 250V AC 15V DC 01858.0103-01

Marquardt 01858.0103-01 DPST On-Off On-Off Rocker Switch Panel features a double pole single throw switching mechanism capable of 10A contact current at 250V AC and 15V DC, making it suitable for industrial and electrical applications requiring reliable control.

Its black actuator with white legend offers clear switch position indication. The housing material is self-extinguishing polyamide conforming to UL94V-0 for enhanced safety and durability.

The switch snaps into panel cutouts sized 18 x 18.6 mm and accommodates panel thicknesses between 0.75 mm and 3 mm for easy installation. Mount type is panel mount with PC Pin terminals suitable for printed circuit board integration.

Operating temperature range is from -20°C up to 85°C with an IP40 ingress protection rating, ensuring protection against solid objects larger than 1 mm. Mechanical life expectancy reaches 100,000 operations under nominal conditions.

This product conforms to household appliances standard IEC/EN 60335-1 (2001/2002 chapter 30), carrying multiple certifications such as VDE, UL, RoHS, ENEC, CSA, and CE, ensuring compliance with electrical safety and environmental standards.

The design includes silver contacts with contact resistance near 100 milliohms and high inrush current capability up to 100 A capacitive load, suitable for demanding electrical environments. A transparent PVC cover option (stock number 133-6287) is available separately for splash-proof protection granting IP64 actuator rating.

Commonly used in electrical control panels, automation devices, and household appliances, this rocker switch offers dependable functionality for industrial, commercial, and laboratory applications.

Country of origin: Tunisia. Explore the full range of Rocker Switches and electrical components available at EnvMart for your automation and electrical needs. The switch features double pole single throw (DPST) configuration for versatile control.

It includes a black actuator with white legend text for clear indication. Constructed with durable polyamide housing ensuring mechanical life of 100,000 operations. Suitable for operating temperatures from -20°C to 85°C and offers IP40 protection rating.

Designed to handle contact voltages up to 250V AC and 15V DC. Mounting is panel cutout size 18 x 18.6 mm, fitting panel thickness 0.75 to 3 mm. The switch is non-illuminated and terminal type is PC Pin for PCB mounting. Meets standards and approvals including VDE, UL, RoHS, ENEC, CSA, and CE.
