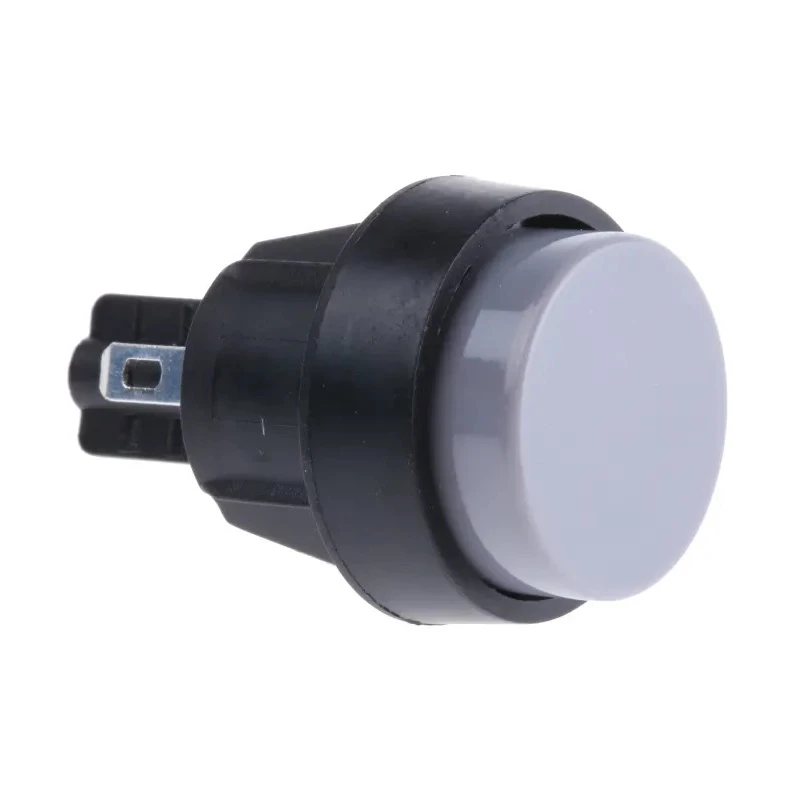

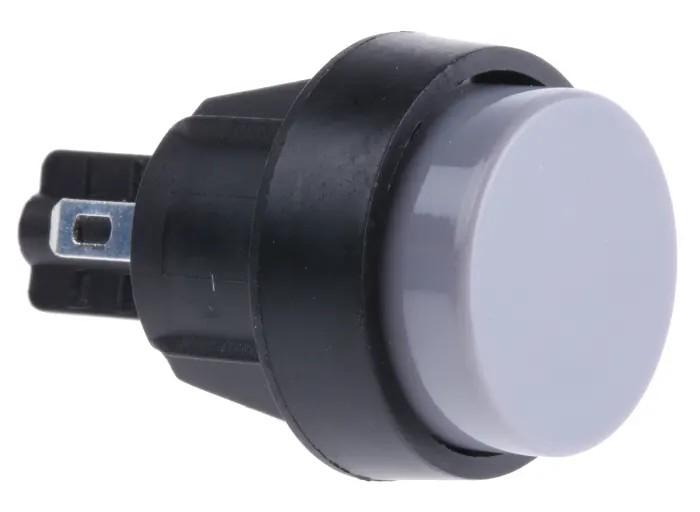

Marquardt 5000 Series Push Button Switch Momentary Panel Mount 16 mm Cutout SPST IP40 250 V ac 5000.0211

Name: Marquardt 5000 Series Push Button Switch Momentary Panel Mount 16 mm Cutout SPST IP40 250 V ac 5000.0211
Brand: Marquardt
SKU: 362047
Price: 8.26 USD
Availability: InStock



Category Push Button Switch Brand Marquardt Condition New

Specifications

Country of Origin	Tunisia
Brand	Marquardt
Height	21.5mm
IP Rating	IP40
Width	17.8mm
Mount Type	Panel
Series	5000
Maximum Operating Temperature	120°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-20°C
Panel Cutout Size	16 mm
Terminal type	Tab
Standards/Approvals	CSA, UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	741-0776Brand: MarquardtManufacturers Part No.: 5000.0211
Switch Operation	Momentary
Actuator Colour	Grey
Actuator Style	Button
Switch Contact Current	4A
Contact AC Voltage	250V ac

Key Features

The actuator is grey in colour and styled as a button.
This switch features a single pole single throw contact configuration.
It provides a momentary on-off switch operation intended for panel mounting.
The contact rating supports 4A current at 250 V ac voltage.
It has an IP40 rating for protection against dust ingress.
The switch is built to operate in temperatures ranging from -20°C to 120°C.
Mechanical life extends up to 200,000 operations ensuring durability.
Terminals are of the 2.8 mm Faston/Quick Connect tab type for quick installation.

Product Description

Marquardt 5000.0211 push button switch is a high-quality momentary switch designed for secure and reliable panel mounting applications. It features a round actuator button in grey colour requiring a 16 mm cutout for installation. This single pole single throw (SPST) switch is ideally suited for Class II appliance use, with a contact AC voltage rating of 250 V and a current rating of 4 A, providing dependable electrical performance.

The switch offers an IP40 ingress protection rating, making it resistant to dust while not designed for water exposure, suitable for general indoor industrial and automation environments. Operating temperature ranges from -20°C to 120°C, enabling use in a range of conditions. Incorporating a mechanical endurance of up to 200,000 operations, it is engineered for longevity in demanding electronic and electrical equipment.

Terminals utilize 2.8 mm Faston/Quick Connect tabs for efficient wiring. Its compact form factor includes an overall height of 21.5 mm and width of 17.8 mm, facilitating integration into various panel configurations. The switch complies with CSA and UL safety standards, ensuring secure and certified operation in industrial, commercial, and automation systems.

This push button switch series is produced in Tunisia under the Marquardt brand, backed by trusted quality and industry standards. The long mechanical life and user-friendly design make it suitable for electrical control panels, industrial machinery, and automation systems where momentary, on-off switching functionality is required.

The actuator is grey and styled as a button for easy identification and operation. Supports a 16 mm panel cutout for standardised mounting. SPST contact configuration allows simple on/off control. Offers a robust current rating of 4 A at 250 V ac.

IP40 rating protects against dust ingress, suitable for indoor industrial use. Mechanical life of 200,000 operations for extended reliability. Temperature operating range from -20°C to 120°C for versatile environments. Terminals feature 2.8 mm Faston tabs for quick connection.

Certified to CSA and UL standards ensuring compliance and safety. Compact dimensions of 21.5 mm height and 17.8 mm width for space saving installations. Explore more Push Button Switches and electrical components in EnvMart’s Electronics & Electricals category for reliable industrial and automation applications.
