Marquardt Door Micro Switch SPST Plunger Maintained 16 A IP40 -40 °C to 85 °C

Free Delivery in India | Lowest Global Shipping Charges

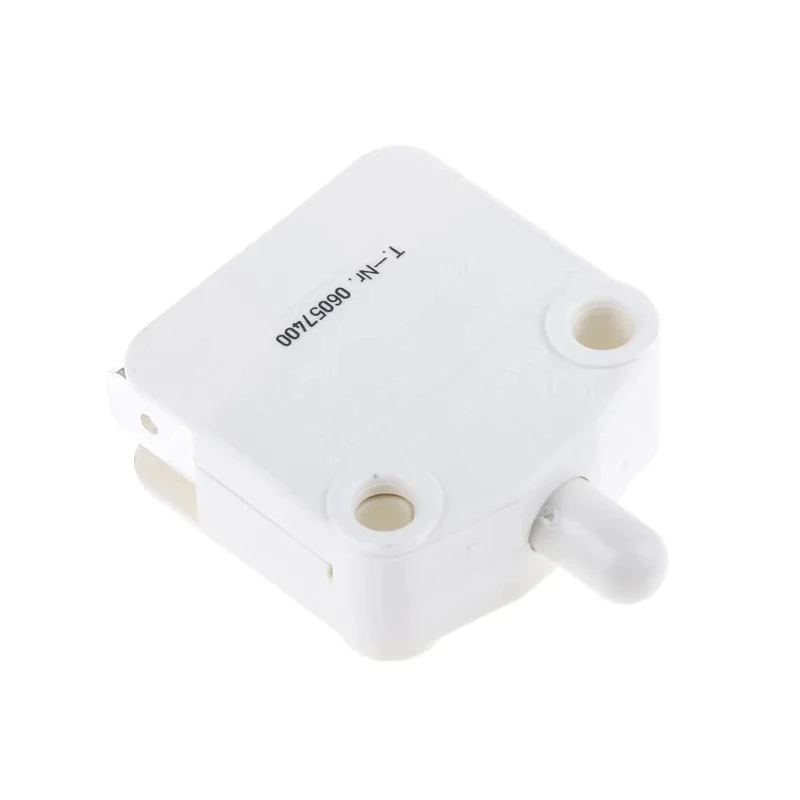

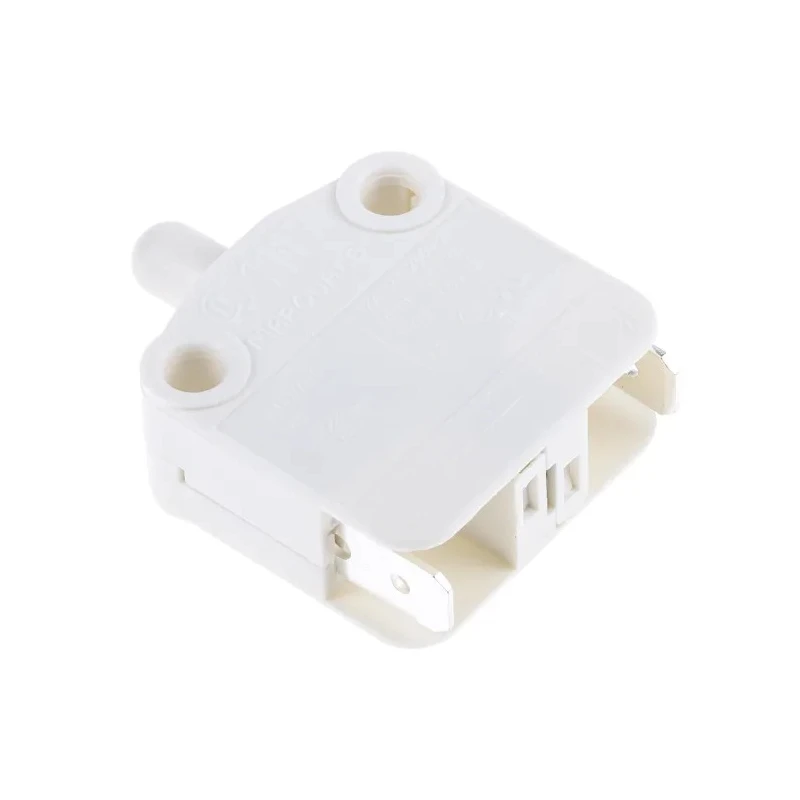

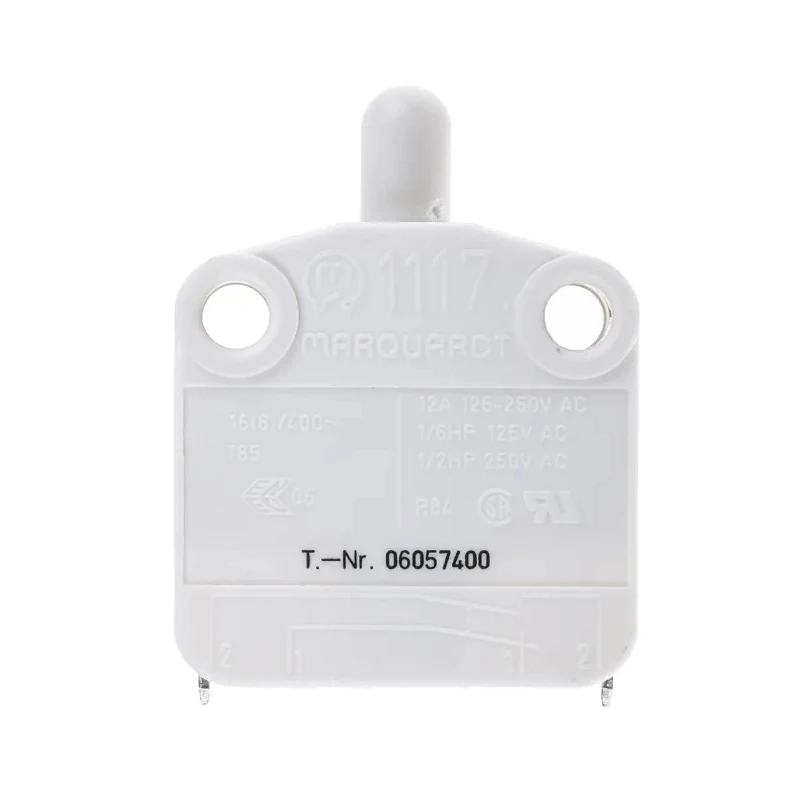

Marquardt Door Micro Switch SPST Plunger Maintained 16 A IP40 -40 °C to 85 °C

Name: Marquardt Door Micro Switch SPST Plunger Maintained 16 A IP40 -40 °C to 85 °C
Brand: Marquardt
SKU: 170156
Price: 7.93 USD
Availability: InStock



Category Micro Switch Brand Marquardt Condition New

Specifications

Country of Origin	Tunisia
Brand	Marquardt
Length	30mm
Model	IP40
IP Rating	IP40
Width	13mm
Series	1117
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Tab
Standards/Approvals	CSA, ENEC, UL
Switch Operation	Maintained
Actuator Style	Plunger
Contact Current	16A

Key Features

This door micro switch features a SPST contact configuration for simple on/off switching.
It uses a plunger actuator style suited for door interlock applications.
Operational temperature range extends from -40 °C to 85 °C ensuring durability.
Rated for contact current up to 16 amperes to handle substantial electrical loads.
Constructed with tab terminals for fast and secure connection.
Complies with industry standards including CSA, ENEC, and UL for quality and safety.
Intended for use in industrial and electrical automation environments.

Product Description

Marquardt 1117.0106 Door Micro Switch is a high-quality maintained operation switch designed to handle contact currents up to 16 A with an IP40 ingress protection rating. Featuring a SPST (Single Pole Single Throw) contact configuration and a reliable plunger actuator style, it is engineered for door interlock and safety applications in industrial automation, electrical equipment, and machinery.

The switch operates effectively in harsh environments with a temperature tolerance ranging from -40 °C to 85 °C, making it suitable for diverse climate conditions. It has a compact form factor with dimensions measuring 13 mm in width and 30 mm in length, allowing easy integration in tight spaces.

Marquardt's door micro switch line is compliant with recognized safety standards including CSA, ENEC, and UL, ensuring dependable and safe usage in commercial and industrial installations. Terminations are made via quick connect tab terminals sized at 6.3 mm, which provide secure and convenient wiring connections.

This product is ideal for use in industrial controls, door interlocks for machinery and ovens, HVAC systems, and other automation systems where precise and reliable switch operation is necessary. Its mechanical life expectancy reaches 100,000 operations, underscoring its robustness for long-term industrial use.

This switch supports maintained contact operation for stable on/off control. The plunger style actuator enables quick activation upon door movement. Wide operating temperature range ensures consistent performance under varying environmental conditions.

The 16 A contact rating accommodates high electrical loads normally present in industrial settings. Compact size and durable construction ease installation and maintenance. Certified to stringent international standards for safety and performance.

Suitable for Class II appliances and general door interlocking needs.
