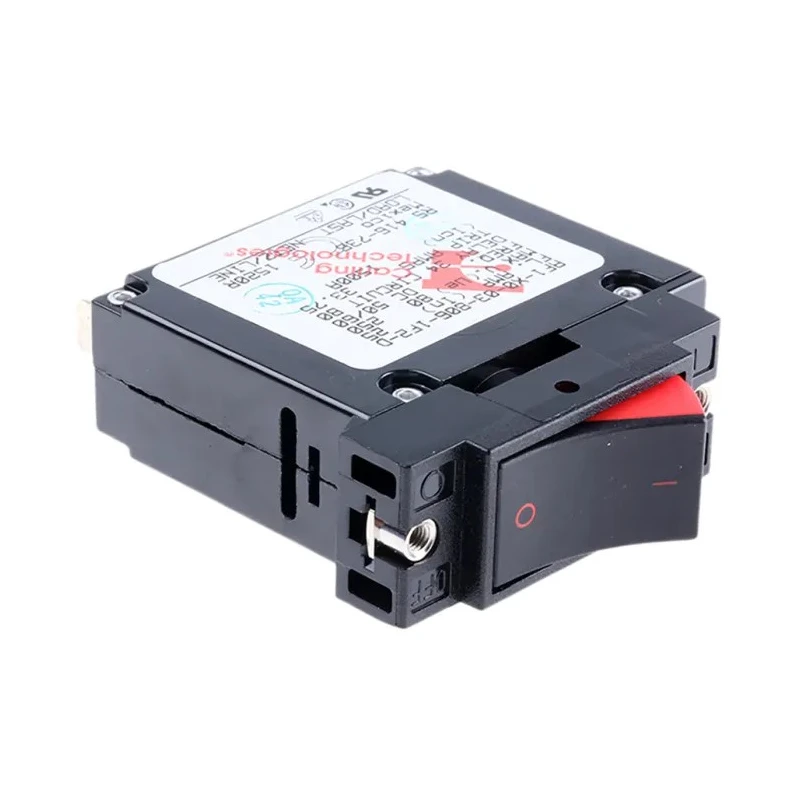

Carlingswitch DSPT On-None-On Panel Rocker Switch, Aluminium, Rectangular, 25A, IP66 AF1X0038061F2D

Carlingswitch AF1X0038061F2D DSPT Panel Rocker Switch is a high-performance component designed for industrial, automation, and electrical control panels. This rocker switch provides On-None-On switching functionality, allowing convenient and secure operation for circuits requiring frequent manual activation.

The device features DSPT (Double Pole Single Throw) contact configuration, allowing control of two independent circuits. Its robust aluminium housing ensures durability and resistance to demanding industrial environments, while the rectangular actuator delivers a clear, ergonomic interface for users.

Rated at 25A, the switch is compatible with 250V AC and 28V DC systems, making it widely suitable in both AC and DC installations. The IP66 rating guarantees reliable protection against dust and water ingress, enhancing operational integrity in outdoor and dusty panel environments.

Visual indication is provided through a unique single shot moulded, dual colour actuator (black and red), enabling users to quickly identify the switch state. The temperature stable design ensures that the circuit breaker does not trip inadvertently due to high ambient temperature levels, while the trip-free mechanism prevents contacts from being forcibly closed during overcurrent or fault conditions.

Full arc suppression extends the contact life, and low contact resistance (< 0.1 Ohm) improves electrical efficiency. Installation is facilitated by push-in terminals, mounting holes sized at 32 x 19mm, and 4mm fixing holes with 42mm centres. The device is certified to UL, RoHS, CSA, CE, VDE, and BS standards, and meets IEC Classification S/HM requirements.

Typical applications include industrial machinery control panels, automation systems, HVAC units, and commercial electrical panels. The switch reliably operates over a wide temperature range (-40°C to 85°C), making it versatile for laboratories, manufacturing facilities, and harsh outdoor conditions.

Mechanically rated for 10 cycles, it features insulation resistance greater than 100 MOhm. Suitable for users where safety, reliability, and consistent switching operation are paramount. Explore more Rocker Switches and industrial panel solutions from Carlingswitch on EnvMart's Electronics & Electricals category.
