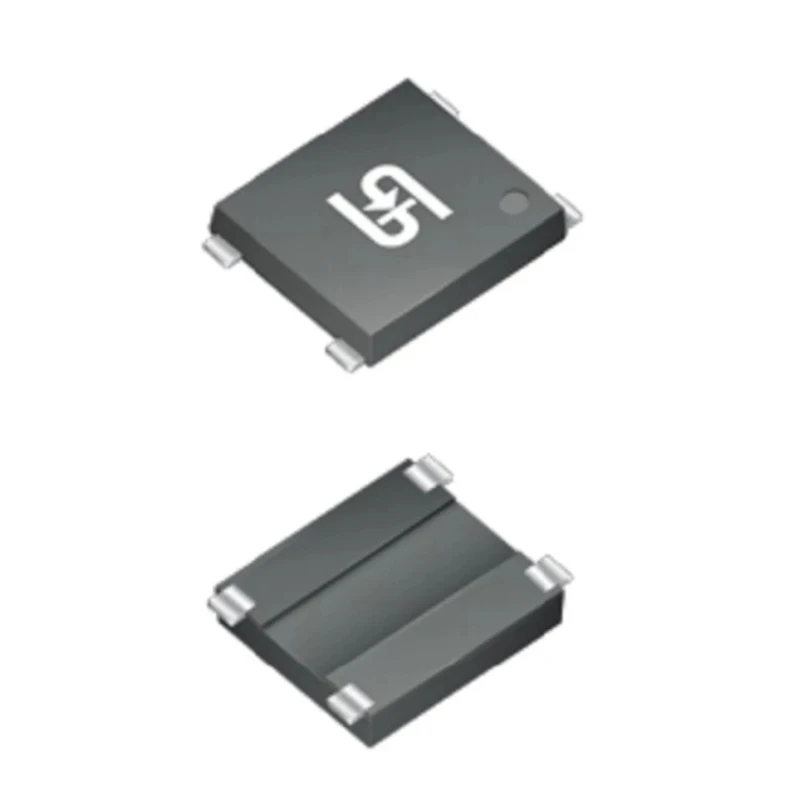

Taiwan Semiconductor Bridge Rectifier Surface Mount YBS Package 4-Pin Quad 400 V 110 A YBS3004G

Taiwan Semiconductor YBS3004G Bridge Rectifier is a surface mount device in a YBS package featuring a quad 4-pin configuration with a peak reverse repetitive voltage of 400 V and a peak surge current of 110 A. It is designed for reliable operation in demanding electronic environments with operating temperatures from -55°C to 150°C. The forward current rating is 3 A with a peak forward voltage drop of 1 V, making it efficient for rectifying AC signals into DC power.

This rectifier features a glass passivated chip junction which enhances its robustness and longevity. Moisture sensitivity level 1 according to J-STD-020 ensures it resists moisture damage during handling and storage. The device is halogen free in accordance with IEC 61249-2-21, supporting environmental safety directives. It carries approvals from UL and RoHS compliance, making it suitable for industrial and commercial electronic applications.

The YBS3004G bridge rectifier is ideal for use in switching mode power supplies (SMPS), adapters, and various lighting applications where reliable and efficient power conversion is critical. It supports automated placement on PCBs due to its surface mount YBS packaging, enhancing production efficiency.

Its quad configuration simplifies AC-DC conversion, providing a compact and robust solution for power electronics. The device’s construction ensures high surge current capability and low forward voltage drop for improved overall efficiency and performance in electronic circuits.

This surface mount rectifier comes in a YBS package suitable for automated assembly. It operates reliably between -55°C and 150°C maximum temperature. Peak forward voltage is low at 1 V to ensure efficient rectification.

Features a 3 A forward current rating for continuous applications. The device includes glass passivated chip junctions for durability. It has moisture sensitivity level 1, enabling ease of handling in production. The construction is halogen free and RoHS compliant for environmental safety.

Widely used across switching mode power supplies, adapters, and lighting applications. This bridge rectifier has recognized UL and IEC 61249-2-21 approvals, ensuring quality standards. Its quad configuration simplifies AC to DC conversion in compact electronic circuits.

Suitable for various industrial, commercial, and consumer electronic power management needs, this Bridge Rectifier offers high quality and reliability. Explore more semiconductor and power conversion components on EnvMart for your electronic manufacturing requirements.
