RS PRO Plunger Limit Switch DPST IP65 Plastic Housing 400V AC 10A IP65

Free Delivery in India | Lowest Global Shipping Charges

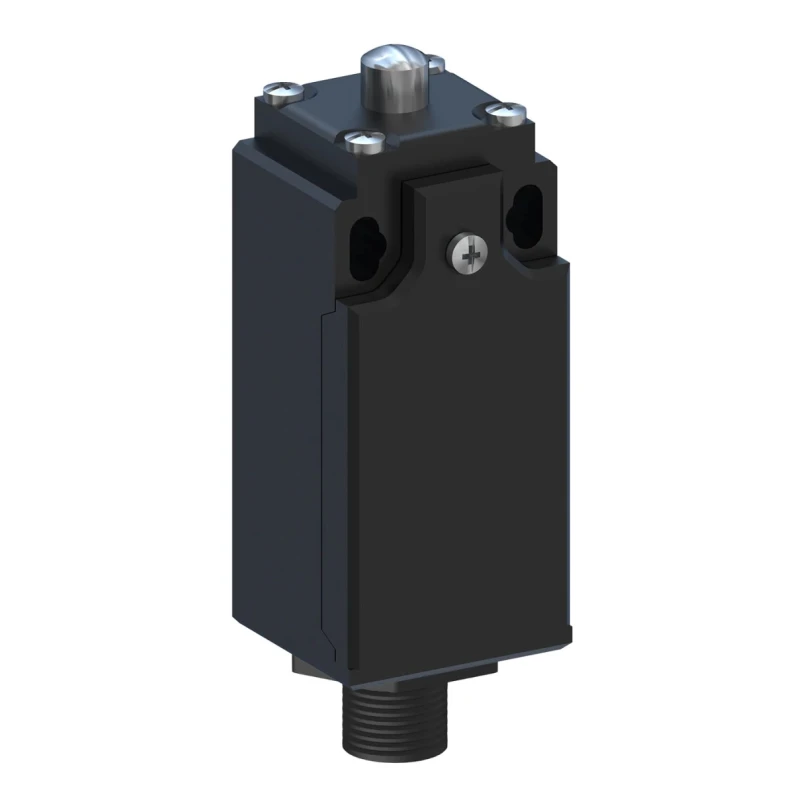

RS PRO Plunger Limit Switch DPST IP65 Plastic Housing 400V AC 10A IP65

Name: RS PRO Plunger Limit Switch DPST IP65 Plastic Housing 400V AC 10A IP65
Brand: RS PRO
SKU: 419442
Price: 3233.26 INR
Availability: InStock



Category Limit Switch Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Length	30.3mm
Model	IP65
Depth	73.5mm
IP Rating	IP65
Width	30mm
Housing Material	Plastic
Maximum Operating Temperature	70°C
Mounting Orientation	Vertical
Contact Configuration	DPST
Actuator Type	Plunger
Contact Type	Snap Action
Minimum Operating Temperature	-25°C
Switching Current	10A
Terminal type	M12
Standards/Approvals	RoHS
Mechanical Life	15000000Cycles
Switching DC Voltage	250V dc
Switching AC Voltage	400V ac
Conduit Entry	M12

Key Features

Equipped with a plunger actuator for precise actuation.
Features DPST contact configuration offering dual poles and single throw switching.
Robust plastic housing with IP65 rating providing dust tight and water-resistant protection.
Snap action contact type ensures reliable and quick switching operation.
Terminal connection through M12 conduit entry for secure wiring.
Operates reliably in ambient temperatures ranging from -25°C to 70°C.
Capable of switching AC voltages up to 400V and DC voltages up to 250V.
Designed for a mechanical life of 15,000,000 cycles ensuring long-term durability.

Product Description

RS PRO IP65 Plunger Limit Switch IP65 is a durable electromechanical limit switch designed for precise position detection and control in industrial automation systems. It features a plunger actuator type with a double pole, single throw (DPST) contact configuration suited for switching electrical loads up to 10 amps at 400 volts AC. The plastic housing offers IP65 ingress protection, making it well suited for harsh environments where dust and water ingress resistance is critical.

This limit switch uses snap action contacts that provide accurate and consistent switching points, immune to electromagnetic disturbances. With a protective reinforced UL-VO thermoplastic fibre-glass construction, it delivers double insulation and long mechanical life rated for 15 million cycles, ensuring reliability in industrial applications.

The terminal terminal type is M12 conduit entry, facilitating secure and standard electrical connections. It operates efficiently across a wide temperature range from -25°C to a maximum of 70°C, supporting AC voltages up to 400V and DC voltages up to 250V. This component complies with IEC 947-5-1 and EN 60947-5-1 standards and holds RoHS certification, ensuring quality and environmental compliance.

Its compact size with dimensions 30.3mm length, 30mm width, and 73.5mm depth allows easy integration into control panels and machinery. The vertical mounting orientation provides flexible installation options.

Equipped with plunger actuator for precise detection. DPST contact configuration for dual pole control. IP65 rated plastic housing ensures robust environmental protection. Snap action contacts yield reliable switching. M12 conduit entry for secure wiring connections.

Wide operating temperature range from -25°C to 70°C. Switching capabilities: 400V AC, 10A, and 250V DC. Mechanical life of 15 million cycles for durability. Compliance with IEC and EN standards and RoHS certification. Compact dimensions suitable for industrial use.

This RS PRO plunger limit switch is ideal for various industrial, laboratory, manufacturing, automation, and HVAC applications requiring reliable mechanical position detection and switching. Its robust construction and standards compliance assure long-term performance under challenging conditions.
