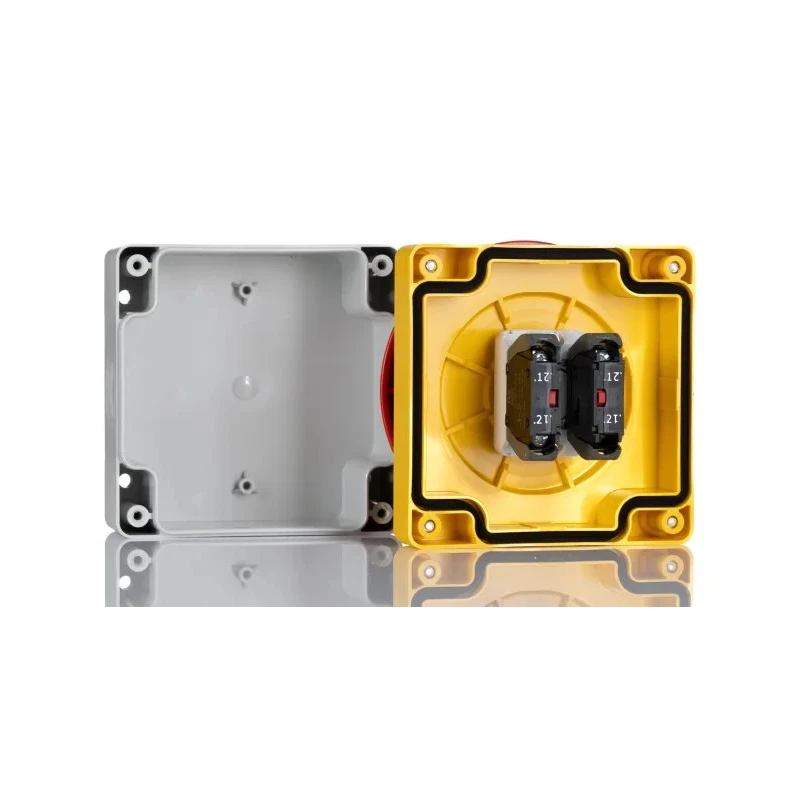

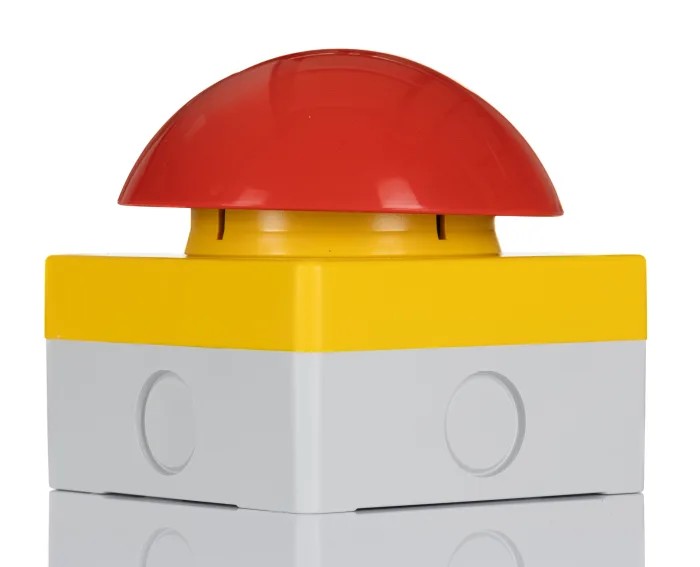

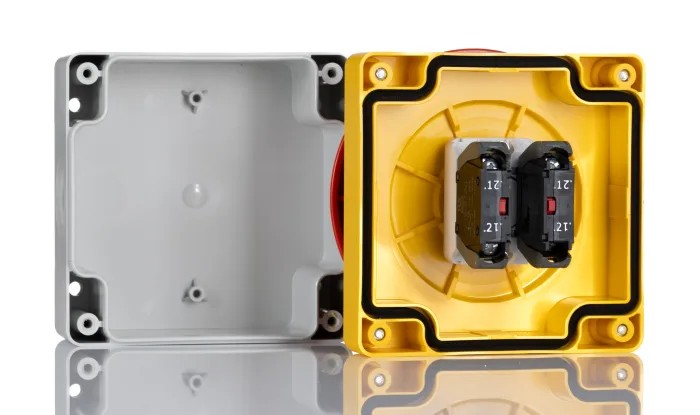

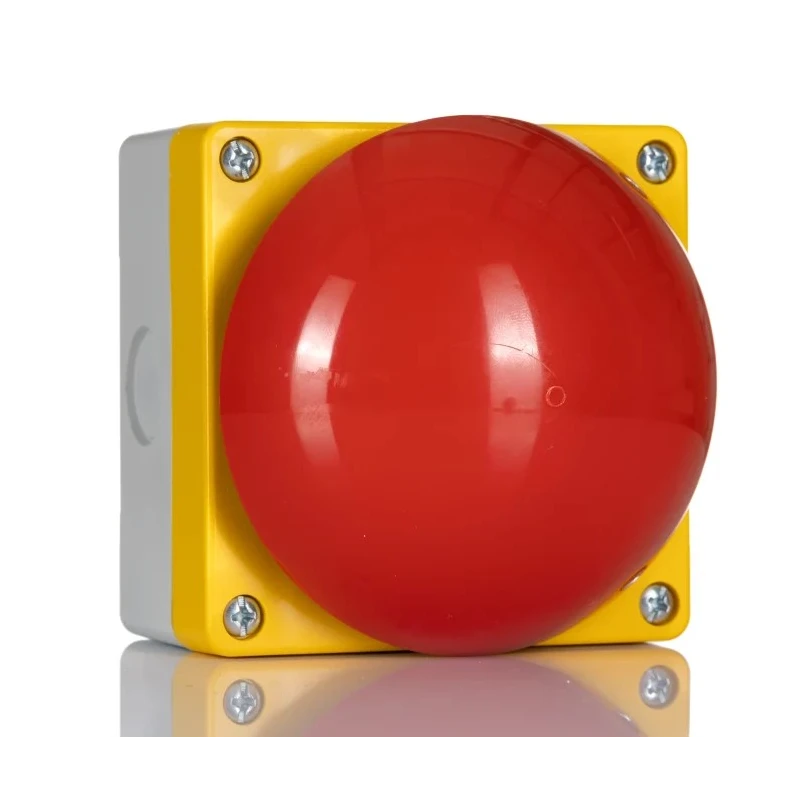

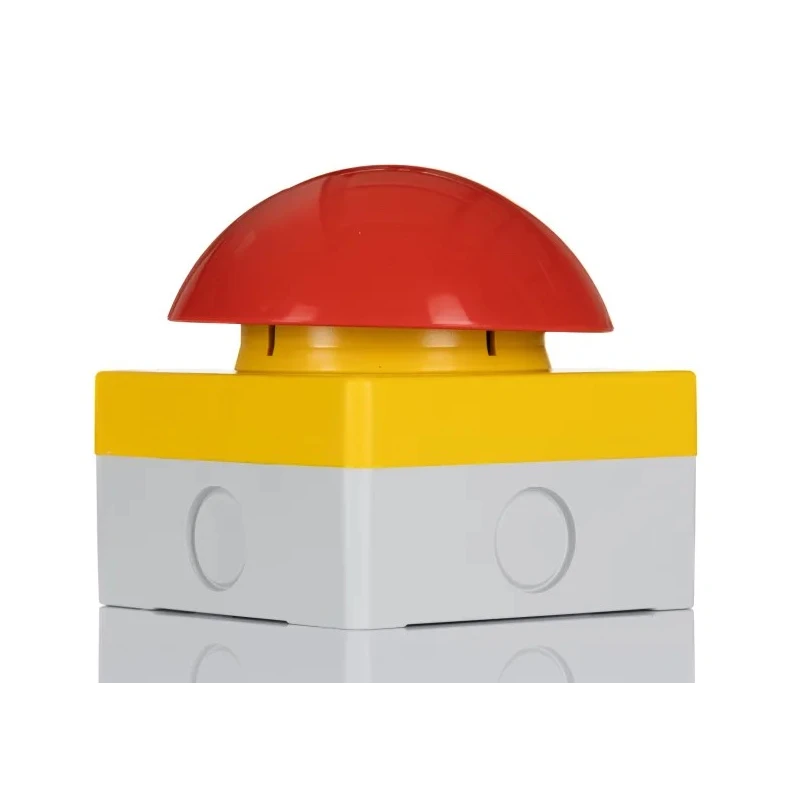

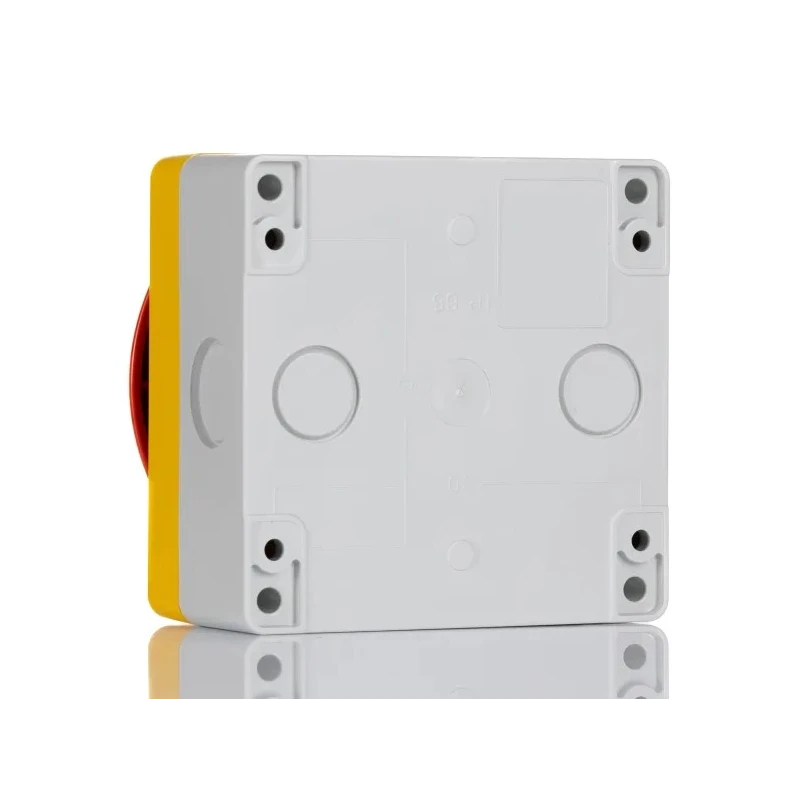

RS PRO Pull to Release Emergency Stop Push Button, Surface Mount, 94 mm Cutout Diameter, 2 NC Contacts, IP65 Rated 239-8213

Name: RS PRO Pull to Release Emergency Stop Push Button, Surface Mount, 94 mm Cutout Diameter, 2 NC Contacts, IP65 Rated 239-8213
Brand: RS PRO
SKU: 414196
Price: 11674.09 INR
Availability: InStock



Category Emergency Stop Push Button Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Colour	Red, White, Yellow
Model	239-8213
IP Rating	IP65
Mount Type	Surface
Housing Material	Plastic
Standards	IEC 60947-1 and EN 60947-1
Series	RS PRO
Contact Configuration	2 NC
Head Style	Round
Head Diameter	94mm
Terminal type	Screw
Enclosure dimensions	94 mm x 94 mm
Maximum dc Voltage	250 V
Contact DC Voltage	250V dc
Contact AC Voltage	400V ac
Maximum AC Voltage	400 V
Contact Current	10A
Cutout Diameter	94mm
Push Button Actuation	Pull to Release
Push Button Material	Thermoplastic
Rated Operational Current Ie - AC-15 (50-60 Hz) [Vac - A]	24V - 10A / 240V - 6A / 400V - 4A
Rated Operational Current DC-13 [Vdc - A]	24V - 2,8A / 125V - 0.55A / 250V - 0.27A
Black Mushroom Head Push Button, Grey cover and base, 1NO + 1NC - RS stock no	239-8211
Red Mushroom Head Push Button, Grey cover and base, 1NO + 1NC - RS stock no	239-8212
Red Mushroom Head Push Button, Yellow cover and grey base, 2NO - RS stock no	239-8213

Key Features

The push button uses pull to release actuation for emergency stopping operations.
It has a durable thermoplastic housing designed to withstand harsh industrial environments.
The device offers screw terminal type connectivity for secure wiring.
The red, white, and yellow color scheme enhances visibility in control stations.
It complies with IEC 60947-5-1 and IEC 60947-5-5 standards ensuring reliable performance.
Rated for maximum 250 V DC and 400 V AC contact voltages with 10 A maximum current.
The IP65 rating protects the device from jets of water and dust ingress.
The head diameter and enclosure dimension are both 94 mm for consistent mount fit.

Product Description

RS PRO 239-8213 Pull to Release Emergency Stop Push Button is a high-quality surface mounted push button switch designed for emergency stop functions in industrial and automation systems. Featuring a 94 mm cutout diameter and 2 normally closed contacts, this emergency stop button ensures immediate operation cut-off in critical situations.

The push button comprises a sturdy plastic housing made from thermoplastic material which offers resistance to mechanical impact and environmental factors. The device is equipped with a pull to release actuation mechanism, providing safe and reliable control for machinery and equipment.

Designed to meet IP65 ingress protection, this emergency stop button is protected against dust and low-pressure water jets from any direction, making it ideal for harsh industrial environments including automotive, building, industrial controls, lighting, and medical equipment applications.

Electrical ratings include contact voltages up to 250 V DC and 400 V AC, with a contact current rated at 10 A. The device uses screw terminals for secure connection and ease of installation.

This model complies with IEC 60947-5-1 and IEC 60947-5-5 international standards, which guarantees dependable and safe operation aligned with industry requirements. The push button is designed for surface mounting with a round head style measuring 94 mm diameter.

Color options include red, white, and yellow for high visibility. It features 2 normally closed contacts configuration ensuring fail-safe operation in emergency scenarios. Made from thermoplastic material, the push button is robust and long-lasting.

The IP65 rating ensures protection against ingress of dust and water jets. Electrical contact ratings support up to 250 V DC and 400 V AC. Screw type terminals enable reliable wiring connections. The compact enclosure dimensions allow easy integration in control stations and panels.

RS PRO Emergency Stop Push Buttons are widely trusted in industrial automation for their reliability and safety assurance. This pull to release model is particularly suited for applications requiring immediate machine shutdown capability, enhancing operational safety and compliance.

Explore the full range of RS PRO push button switches and components for your industrial automation and control needs at EnvMart.
