Taiwan Semiconductor Bridge Rectifier 1000 V 220 A 4-Pin Quad GBU1507

Free Delivery in India | Lowest Global Shipping Charges

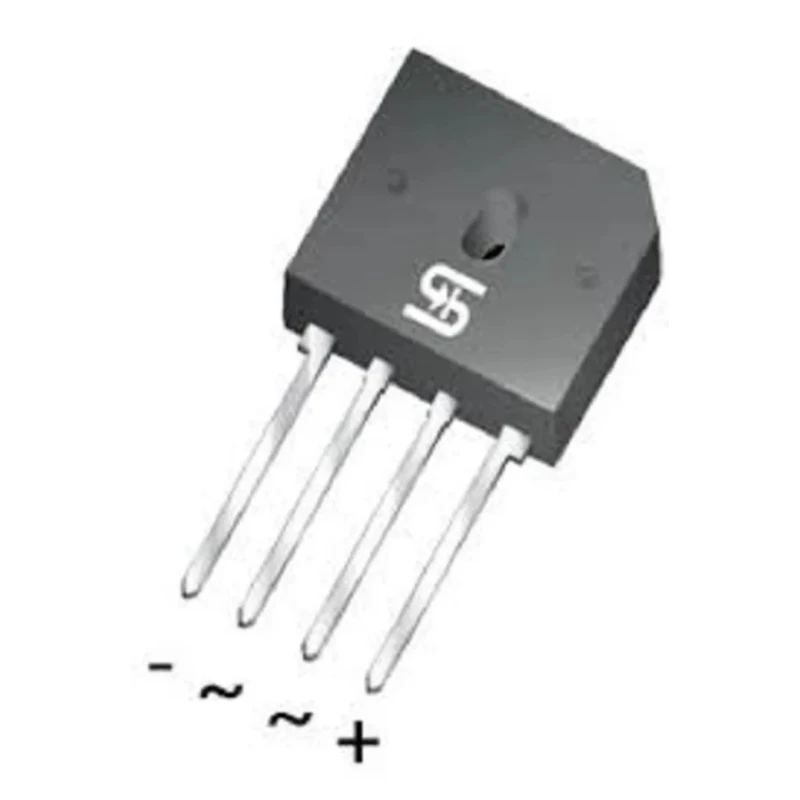

Taiwan Semiconductor Bridge Rectifier 1000 V 220 A 4-Pin Quad GBU1507

Name: Taiwan Semiconductor Bridge Rectifier 1000 V 220 A 4-Pin Quad GBU1507
Brand: Taiwan Semiconductor
SKU: 310019
Price: 221.8 INR
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	22.3mm
Length	36.8mm
Model	GBU1507
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	GBU
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	RoHS, IEC 61249-2-21, UL
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	220A
Forward Current If	15A
Peak Forward Voltage Vf	1.1V

Key Features

Designed for switching mode power supply and adapter applications.
Supports a maximum forward current of 15 A and surge current of 220 A.
Operates at maximum temperature of 150°C with a wide temperature range from -55°C.
Through-hole mount type with compact dimensions of 36.8 mm length and 22.3 mm height.
RoHS compliant and UL recognized with halogen-free construction.
Peak forward voltage is 1.1 V, and reverse current is negligible (0 μA).
Quad configuration suitable for durable and reliable circuit design.

Product Description

Taiwan Semiconductor GBU1507 Bridge Rectifier is a high-quality 4-pin quad semiconductor designed for efficient power rectification in electronic circuits. Rated for a peak reverse repetitive voltage of 1000 V and a forward current of 15 A, it is ideal for use in high-performance switching mode power supplies (SMPS), adapters, televisions, and monitors. The device features a GBU package with through-hole mounting, facilitating ease of installation on printed circuit boards.

With a maximum operating temperature of 150°C and minimum operating temperature of -55°C, the GBU1507 offers robust performance across a wide range of operating conditions. It can endure high surge currents of up to 220 A ensuring reliability in transient conditions. Its peak forward voltage of 1.1 V and negligible peak reverse current (0 μA) contribute to efficient power conversion and minimal heat generation.

This bridge rectifier is RoHS compliant and halogen-free according to IEC 61249-2-21 standards, and it is UL recognized (File # E-326243), backing its high quality and safety. The compact dimensions of 36.8 mm length by 22.3 mm height make it suitable for space-constrained applications without compromising electrical performance.

Designed specifically for power electronics with quad diode configuration. Suitable for industrial, electronic components manufacturing, and HVAC applications. Ideal for assembly in electronic equipment requiring reliable DC power supply conversion.

Ensures improved production efficiency by utilizing ready-to-insert packaging. Comes with certifications and standards compliance for trusted industrial use. Explore a wide selection of semiconductor and Bridge Rectifier options at EnvMart for your industrial and commercial electronics needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The GBU1507 has a peak reverse repetitive voltage of 1000 V, making it suitable for high-performance applications.

This model supports a maximum forward current of 15 A, which is essential for efficient power rectification.

The GBU1507 has compact dimensions of 36.8 mm in length and 22.3 mm in height, suitable for space-constrained applications.

The maximum operating temperature for the GBU1507 is 150°C, allowing it to function in high-temperature environments.

This bridge rectifier features a through-hole mount type, facilitating ease of installation on printed circuit boards.

The peak forward voltage of this model is 1.1 V, contributing to efficient power conversion.

The GBU1507 can handle a peak non-repetitive forward surge current of up to 220 A, ensuring reliability during transient conditions.

This model is RoHS compliant and meets IEC 61249-2-21 standards, and it is UL recognized, ensuring safety and quality.

The minimum operating temperature for the GBU1507 is -55°C, allowing it to perform in low-temperature environments.

This bridge rectifier has a pin count of 4, which is typical for quad configurations.

The GBU1507 is designed for use in switching mode power supplies, adapters, televisions, and monitors, making it versatile for various electronic applications.

This model features a quad configuration, which enhances its capability for durable and reliable circuit design.
