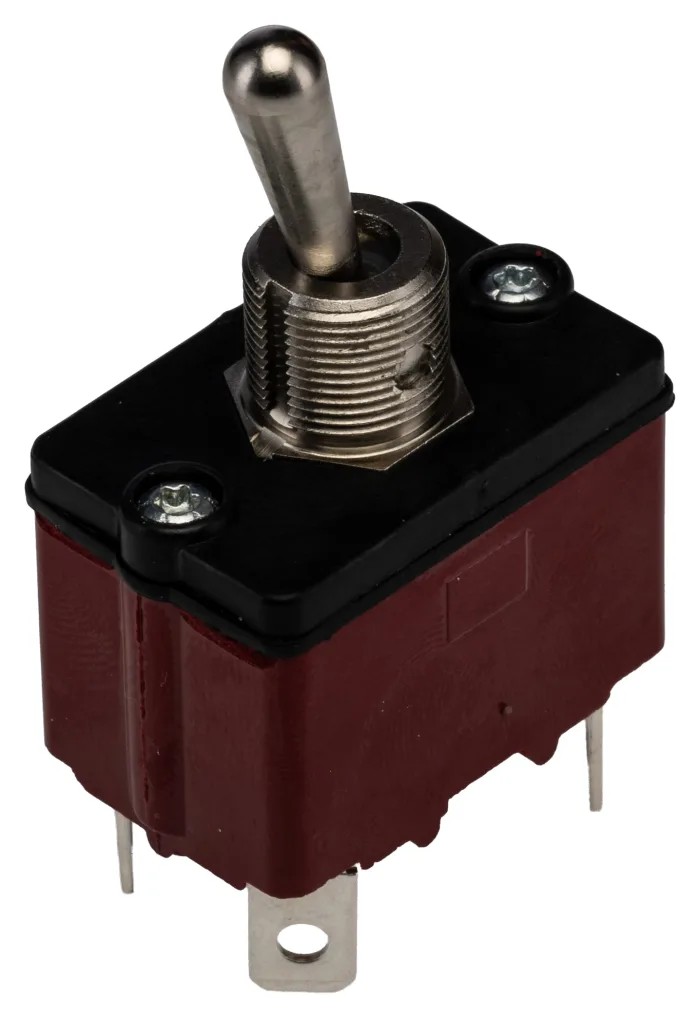

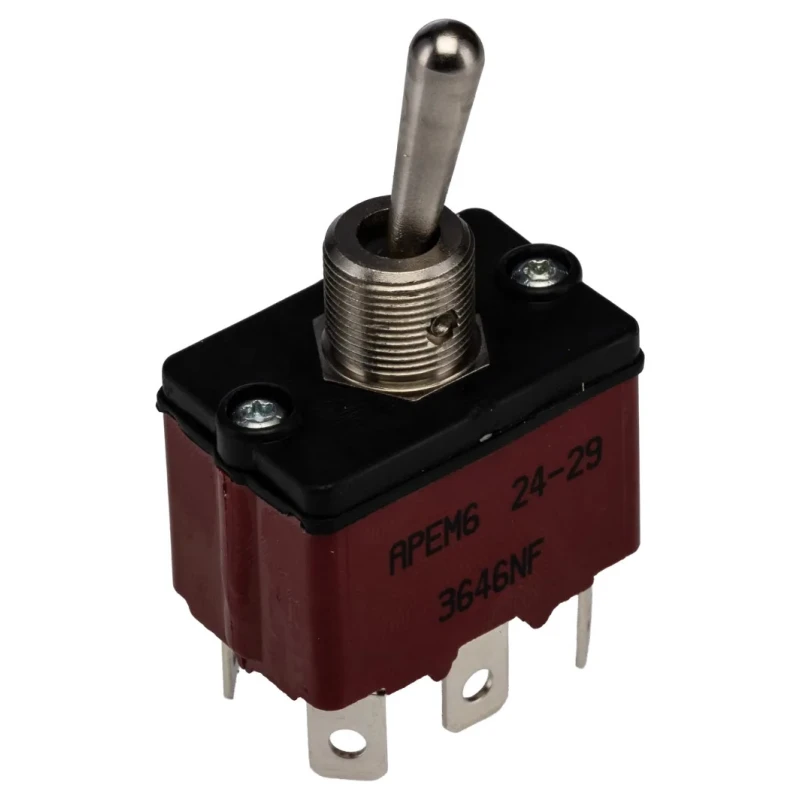

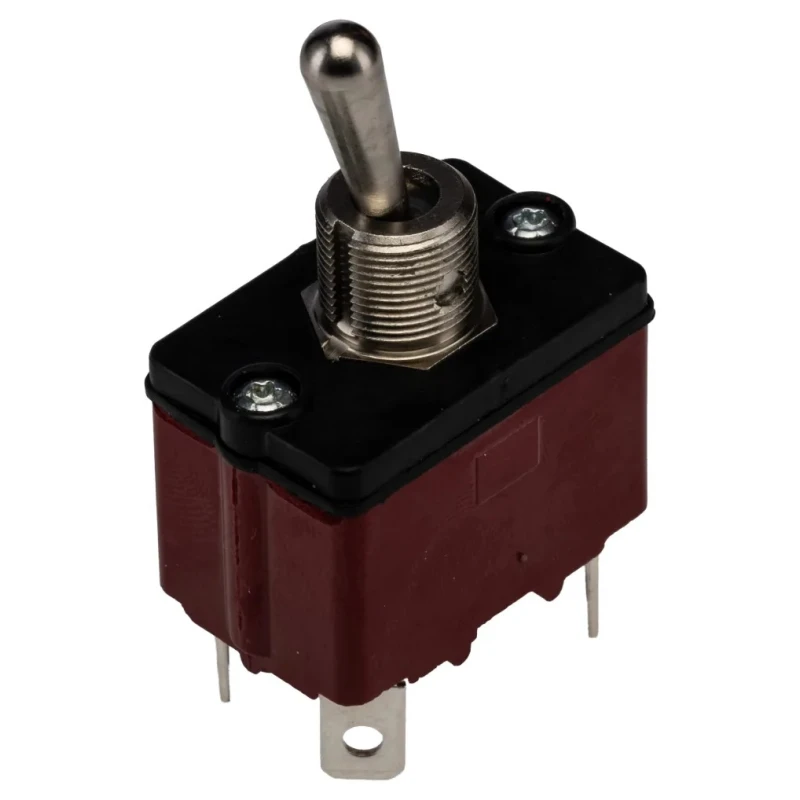

APEM Toggle Switch Panel Mount On-On DPST Tab Terminal 28 V dc 28 V ac 3646NF/2

APEM 3646NF/2 Toggle Switch is a robust and sealed panel mounted switch designed for industrial and electrical control applications. Rated for 28 V dc and 28 V ac, this double pole, single throw (DPST) switch features On-On operation, making it suitable for switching between two circuits. Its brass actuator and phenolic body offer excellent durability and electrical insulation.

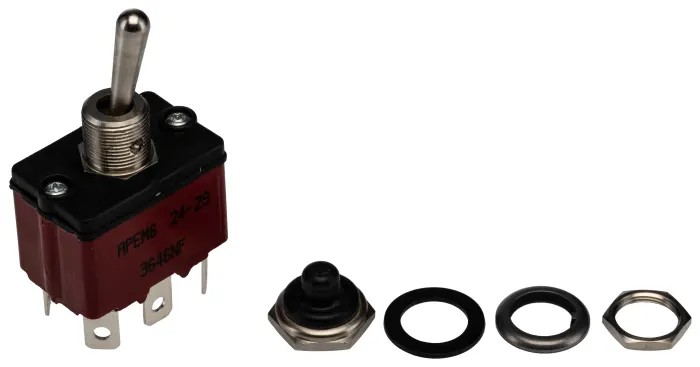

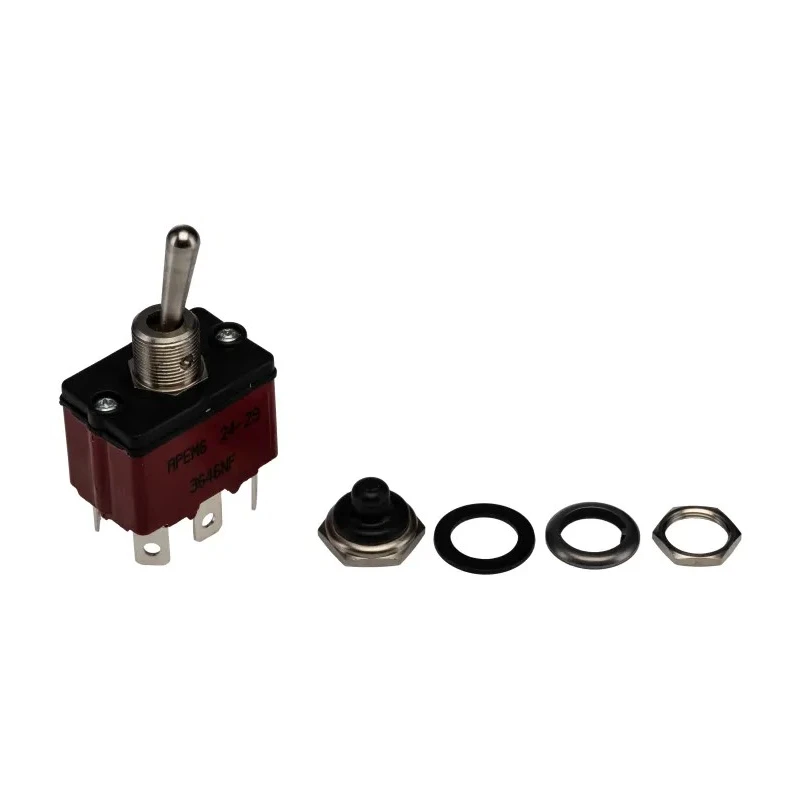

The switch is designed with double sealing by an internal o-ring and a protective boot, achieving an IP67 protection rating, making it straightforward to use in harsh environments with dust or moisture exposure. The tab terminals provide easy solder or quick connect compatibility with 0.25 inch connections.

Operating reliably from -40°C to 85°C, the switch supports a 12 A contact current rating, ideal for moderate load control circuits. Its compact size with 61.8 mm height, 35 mm length, and 21.5 mm width allows integration in standard electrical panels with a 12.2 mm cutout requirement.

Certified with UL, RoHS, and IEC approvals, the 3600NF series switch by APEM offers high reliability. Manufactured in France, it is engineered for durability and consistent operation in industrial automation, electrical controls, and machinery applications requiring rugged toggle switches.

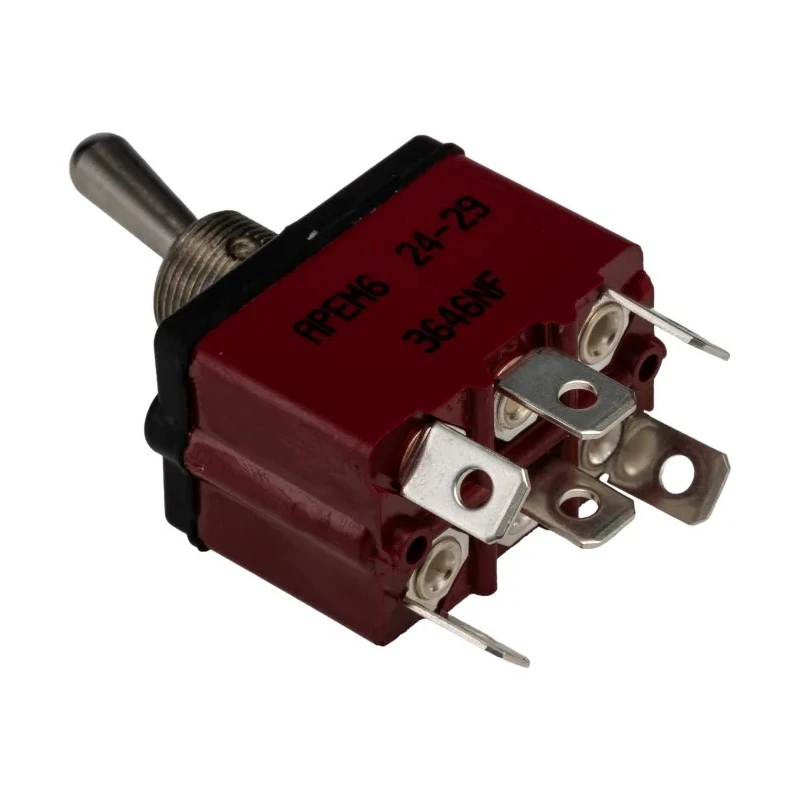

The toggle switch features a double pole, single throw (DPST) contact configuration. Designed for panel mounting with a 12.2 mm panel cutout size. Terminals are of tab type compatible with 0.25 inch quick connect soldering.

Operates reliably within temperature range from -40°C to 85°C. Brass actuator material and phenolic case ensure durability and electrical insulation. Switch carries a contact current of 12 A suitable for control circuits.

The device provides IP67 ingress protection rating, ensuring dust tightness and water resistance. Compact dimensions with height 61.8 mm, length 35 mm, and width 21.5 mm fit robust industrial applications. Complies with UL, RoHS, and IEC standards for quality and safety assurance.

Manufactured in France, it belongs to the reputable 3600NF sealed toggle switch series. Explore the wide range of APEM Toggle Switches and other electrical components on EnvMart for reliable and certified industrial-grade electrical solutions.
