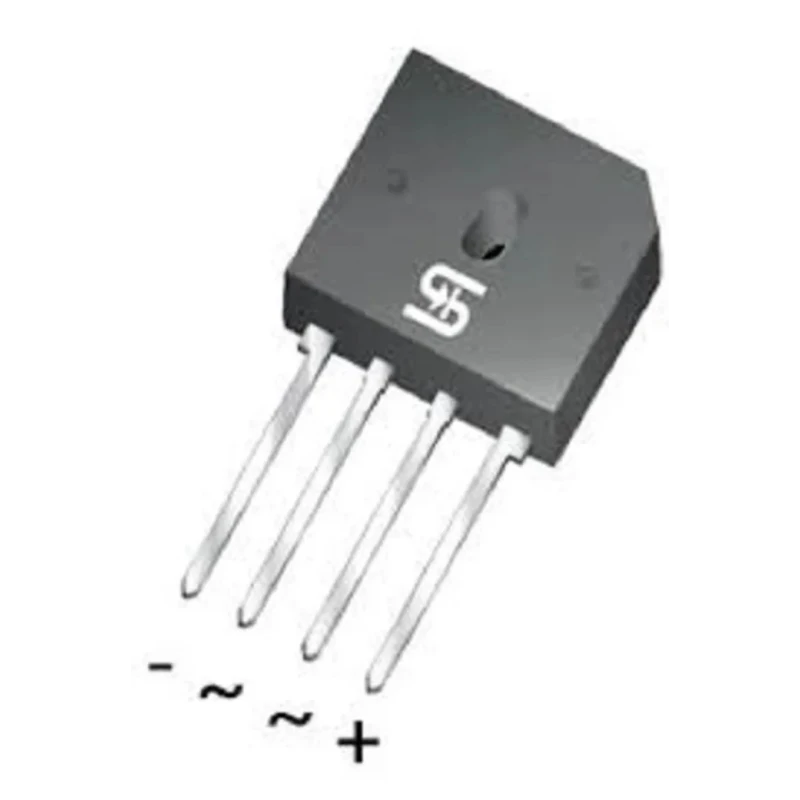

Taiwan Semiconductor Bridge Rectifier 800 V 220 A Through Hole GBU Quad 4-Pin GBU1506

Taiwan Semiconductor GBU1506 Bridge Rectifier is a reliable component designed for power electronic applications requiring durable rectification capabilities. It supports a peak reverse repetitive voltage of 800 V and can handle a forward current of 15 A. The device is packaged in a GBU type through hole format with a quad 4-pin configuration, facilitating easy PCB mounting and integration.

This Bridge Rectifier excels in environments with maximum operating temperatures reaching 150°C and minimum temperatures as low as -55°C, assuring performance in demanding industrial and electronic scenarios. It exhibits a low peak forward voltage of 1.1 V, offering efficient power conversion and minimizing energy losses.

The surge current rating of 220 A enables handling of transient high current events, which is critical for switching mode power supply (SMPS), TV, monitor, and adapter applications. Its housing dimensions, 36.8 mm in length and 22.3 mm in height, provide a compact footprint suitable for various electronics assembly lines.

Compliant with IEC 61249-2-21, RoHS, and UL standards, this semiconductor device adheres to rigorous safety, quality, and environmental directives. It is halogen-free as per IEC guidelines, supporting eco-friendly manufacturing practices.

Common uses include industrial electronics, power supplies, manufacturing equipment, and other sectors requiring robust semiconductor rectifiers. The device supports 1 phase and features a quad configuration with 4 pins, aligning with standard power rectification designs.

Designed for through hole mounting for ease of integration. Supported maximum operating temperature up to 150°C for reliable performance. Features a peak forward voltage of 1.1 V ensuring efficient conduction. Operates effectively between -55°C and 150°C for a wide range of applications.

Quad configuration with 4 pins suitable for printed circuit board mounting. Compliant with IEC 61249-2-21, RoHS, and UL standards for safety and environmental care. High surge current capability of 220 A for transient load resilience.

Ideal for switching mode power supplies, adapters, TVs, and monitors. Explore the extensive range of semiconductor components available on EnvMart for enhanced electronic design and manufacturing workflows.
