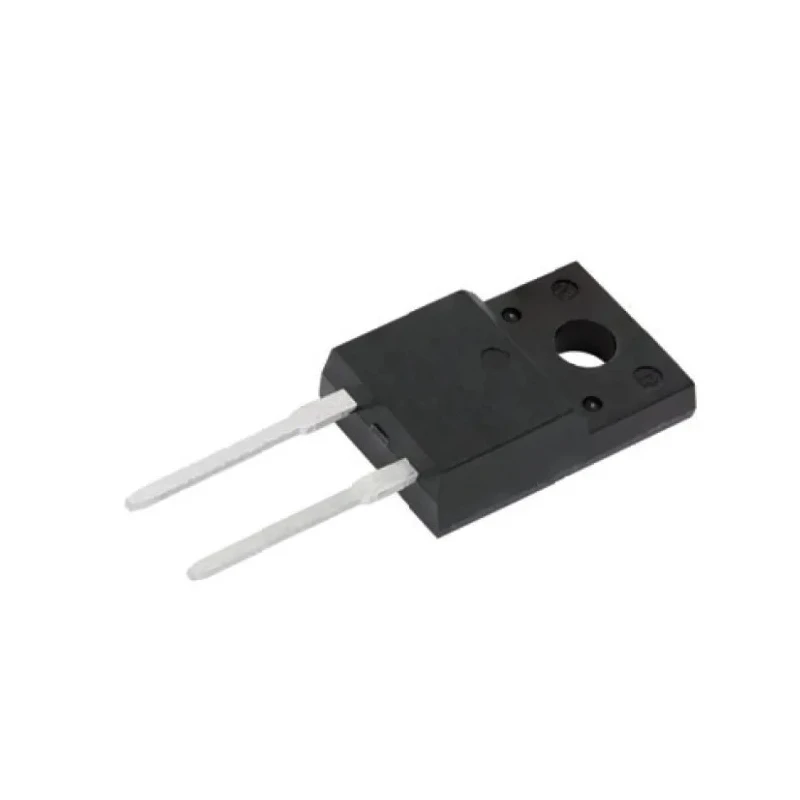

Vishay 600 V 30 A Rectifier & Schottky Diode General Purpose TO-220FP VS-ETH3106FP-N3

Vishay VS-ETH3106FP-N3 Rectifier & Schottky Diode is engineered for efficient power conversion and fast switching applications. It features a general purpose design suitable for a wide range of industrial and commercial electronics use cases including power factor correction (PFC) boost stages in AC/DC sections of switch mode power supplies, inverters such as those used in air conditioning units, high-frequency welding, uninterruptible power supplies (UPS), and motor drive applications.

This diode supports a maximum continuous forward current of 30A and withstands a peak reverse repetitive voltage of 600V, making it robust for medium-voltage circuits. Its TO-220FP fully isolated package provides superior electrical insulation and thermal performance with a maximum junction operating temperature of 175°C, enabling reliable operation in demanding thermal environments.

The hyperfast soft recovery time and low forward voltage drop of 1.4V optimize efficiency by minimizing switching losses and conduction drop, while the planar structure with platinum doped lifetime control ensures excellent ruggedness and long device lifetime.

The diode's peak non-repetitive forward surge current is rated at 280A, offering resilient protection against transient surges. It meets RoHS environmental standards and the automotive-grade AEC-Q101 standard, ensuring compliance and reliability in automotive and industrial settings.

Key features such as fully isolated 2-pin package (VINS = 2500 VRMS), optimized stored charge, and low recovery current together reduce dissipation in switching elements and protective snubbers.

Maximum continuous forward current rating of 30A ensures reliable operation under heavy loads. Peak reverse repetitive voltage of 600V suitable for medium voltage applications. TO-220FP fully isolated package enhances safety and thermal management.

Hyperfast soft recovery reduces switching losses. Wide operating temperature range from -55°C to 175°C. Low forward voltage drop of 1.4V minimizes conduction losses. Peak non-repetitive forward surge current rated at 280A.

Compliant with RoHS and automotive standard AEC-Q101. Planar structure with platinum lifetime control guarantees robustness. Ideal for PFC boost stages, inverters, UPS, and motor drives applications.

This Vishay diode is an ideal component in industrial power electronics, laboratory instrumentation, HVAC systems, manufacturing automation, and other commercial electronic systems requiring efficient rectification and low switching losses.
