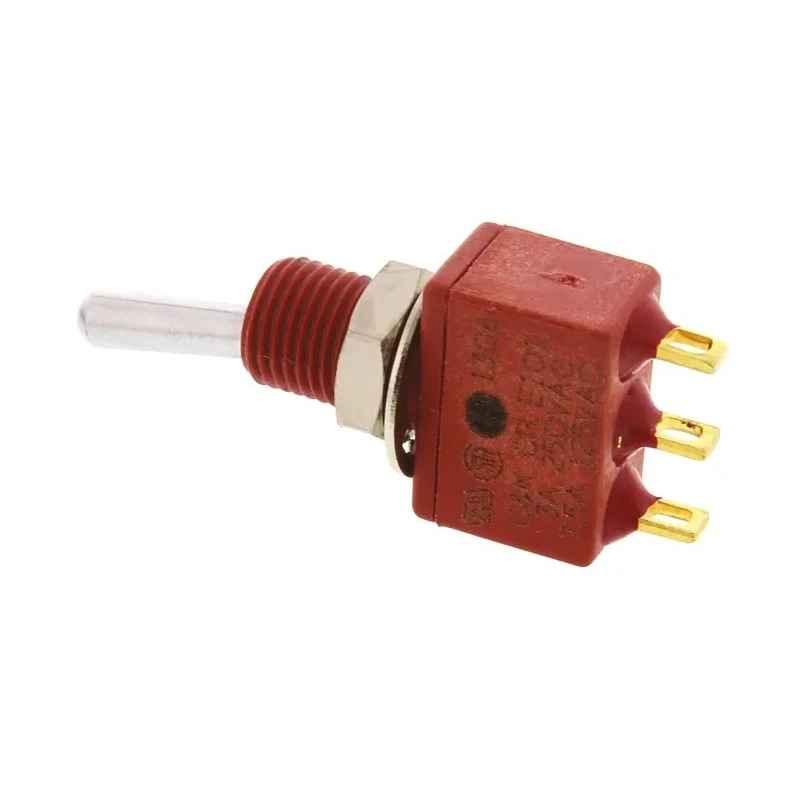

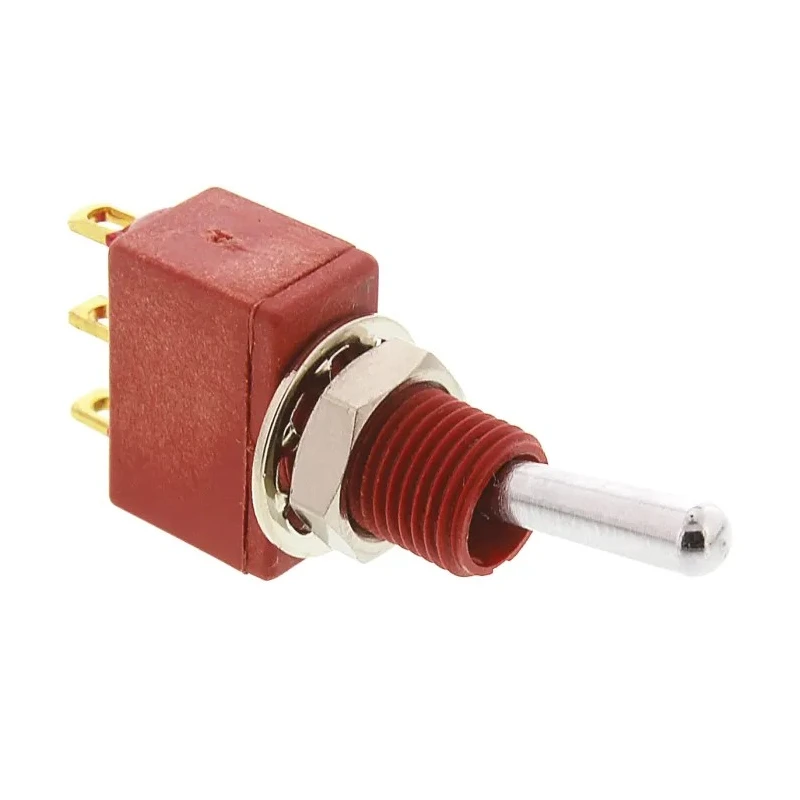

C & K Toggle Switch Panel Mount On-On SPDT Solder Terminal 28 V dc 125 V ac E101SYZQE

C & K E101SYZQE Toggle Switch is a high-quality panel mount switch featuring on-on SPDT contact configuration ideal for various electrical and automation applications. It is engineered to operate at 28 V dc and 125 V ac, supporting a maximum switch contact current of 7.5A, providing reliable circuit switching performance in both industrial and commercial settings.

The toggle switch is IP57 rated, ensuring resistance against dust ingress and water immersion, making it suitable for use in challenging environments such as industrial automation systems, electrical control panels, and manufacturing equipment. The solder terminal type facilitates secure and durable electrical connections while the brass actuator offers mechanical strength and corrosion resistance.

With an actuator length of 10.16 mm and panel cutout size of 6.35 mm, this compact switch is designed for efficient panel mounting with precise dimensions: length 12.7 mm, width 6.6 mm, and height 34.29 mm. The operating temperature range from -30°C to 85°C allows it to function reliably across diverse ambient conditions.

Silver contacts enhance electrical conductivity and reduce wear, contributing to long-term durability. The E series designation represents the IP57 sealed design, combining performance and environmental protection. This toggle switch features UL, RoHS, and CSA certifications, confirming compliance with international safety and environmental standards.

This toggle switch features a SPDT contact configuration ensuring reliable circuit control. The switch operation is On-On, allowing selection between two circuits. It supports a switch contact current of 7.5A for moderate current applications.

Mount type is panel mount with solder terminal connections for secure installation. IP57 rated for water and dust resistance, suitable for harsh environments. The actuator is made of brass with a length of 10.16 mm, providing durability.

The panel cutout size required is 6.35 mm, making it suitable for compact panel designs. The switch operates safely within -30°C to 85°C temperature range. Silver contacts ensure minimal electrical resistance and enhanced conductivity.

This model belongs to the E series with UL, RoHS, and CSA approvals.

This toggle switch is widely applicable in electrical panels, industrial automation systems, manufacturing machinery, and control switch assemblies where durability and reliability are essential. It is designed to withstand tough environmental conditions and frequent switching cycles.
