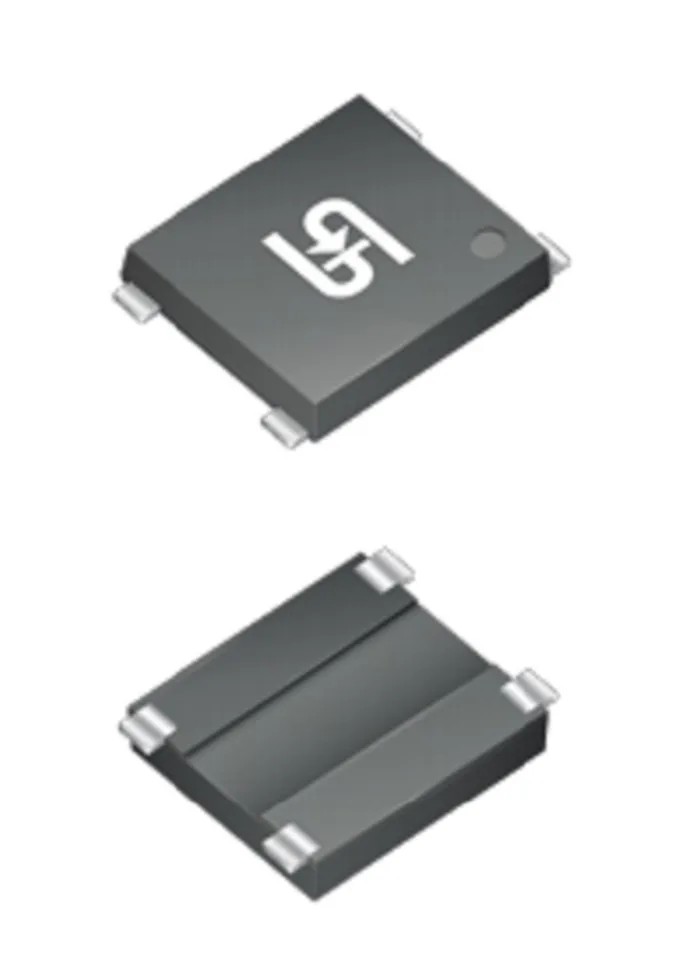

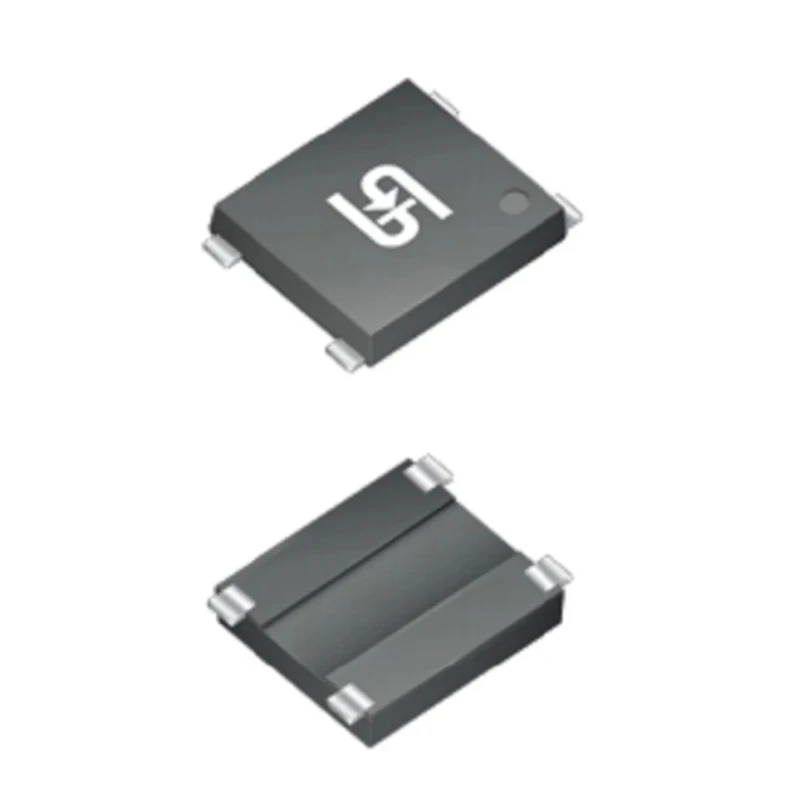

Taiwan Semiconductor Bridge Rectifier 1000 V 110 A 4-Pin Quad Surface Mount YBS3007G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 8.6mm |
| Length | 6.7mm |
| Model | YBS3007G |
| Mount Type | Surface |
| Series | YBS3000 |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | YBS |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC 61249-2-21, RoHS, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Forward Current If | 3A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Designed for surface mount applications with YBS package type.
- Operates reliably within -55°C to 150°C temperature range.
- Forward current rating of 3 A for stable power handling.
- Low forward voltage drop of 1 V ensures efficient conduction.
- Glass passivated chip junction enhances durability and thermal stability.
- Ideal for switching mode power supplies, adapters, and lighting circuits.
- RoHS compliant and halogen-free adhering to IEC 61249-2-21.
- Molded plastic construction offers cost-effective and reliable performance.
Product Description
Taiwan Semiconductor YBS3007G Bridge Rectifier provides a robust solution for power conversion and rectification in various electronic systems. It features a 1000 V peak reverse repetitive voltage rating and can handle surge currents up to 110 A, making it suitable for demanding electrical applications.
This device is configured in a 4-pin quad layout within a YBS surface mount package, enabling compact and efficient PCB designs. Its forward current rating of 3 A and low forward voltage drop of 1 V contribute to high efficiency while maintaining reliability.
The rectifier supports operating temperature ranges from -55°C minimum to 150°C maximum, accommodating industrial and commercial environmental conditions. The glass passivated chip junction ensures long-term thermal stability and resistance to stress.
Common applications include switching mode power supplies (SMPS), adapter power supplies, and lighting equipment, where durability and electrical performance are critical. The device is compliant with IEC 61249-2-21 standards, RoHS directives, and is halogen-free, confirming environmental safety.
Its molded plastic construction allows cost-effective manufacture while maintaining quality. Moisture sensitivity level 1 certification per J-STD-020 makes it well-suited for automated pick-and-place assembly processes in modern electronics manufacturing.
Designed for surface mount applications with YBS package type. Operates reliably within -55°C to 150°C temperature range. Forward current rating of 3 A for stable power handling. Low forward voltage drop of 1 V ensures efficient conduction.
Glass passivated chip junction enhances durability and thermal stability. Ideal for switching mode power supplies, adapters, and lighting circuits. RoHS compliant and halogen-free adhering to IEC 61249-2-21. Molded plastic construction offers cost-effective and reliable performance.
Moisture sensitivity level 1 compliant, suitable for automated PCB assembly processes.
This Bridge Rectifier is an excellent choice for industrial, electronic manufacturing, telecommunications, and HVAC equipment requiring reliable power rectification. Explore our Electronics & Electricals category for more semiconductors and components to support your design and manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The YBS3007G has a peak reverse repetitive voltage rating of 1000 V, making it suitable for high-voltage applications.
This model can operate at a maximum temperature of 150°C, accommodating a wide range of environmental conditions.
The forward current rating for this bridge rectifier is 3 A, providing stable power handling for various applications.
It features a quad configuration with a 4-pin layout, designed for surface mount applications.
The forward voltage drop of the YBS3007G is 1 V, which ensures efficient conduction during operation.
This model has a height of 8.6 mm and a length of 6.7 mm, making it compact for PCB designs.
It is RoHS compliant and adheres to IEC 61249-2-21 standards, confirming its environmental safety.
The moisture sensitivity level of this bridge rectifier is classified as level 1, suitable for automated PCB assembly processes.
Common applications include switching mode power supplies, adapter power supplies, and lighting equipment.
The peak non-repetitive forward surge current rating for the YBS3007G is 110 A, allowing it to handle significant surge conditions.
It utilizes a YBS package type designed for surface mount applications, facilitating compact designs.
The minimum operating temperature for this bridge rectifier is -55°C, enabling its use in low-temperature environments.
