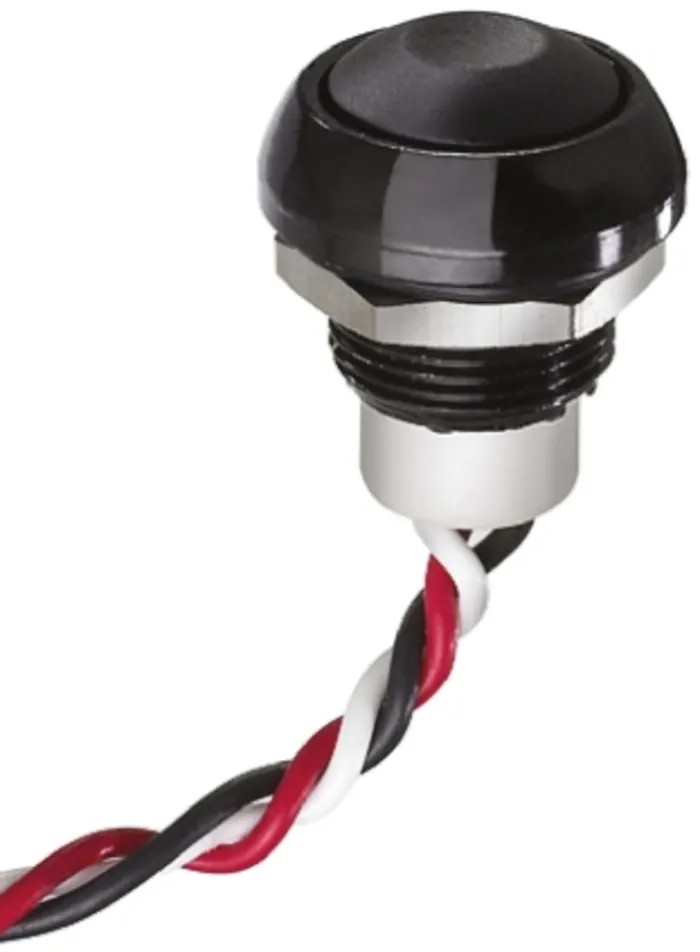

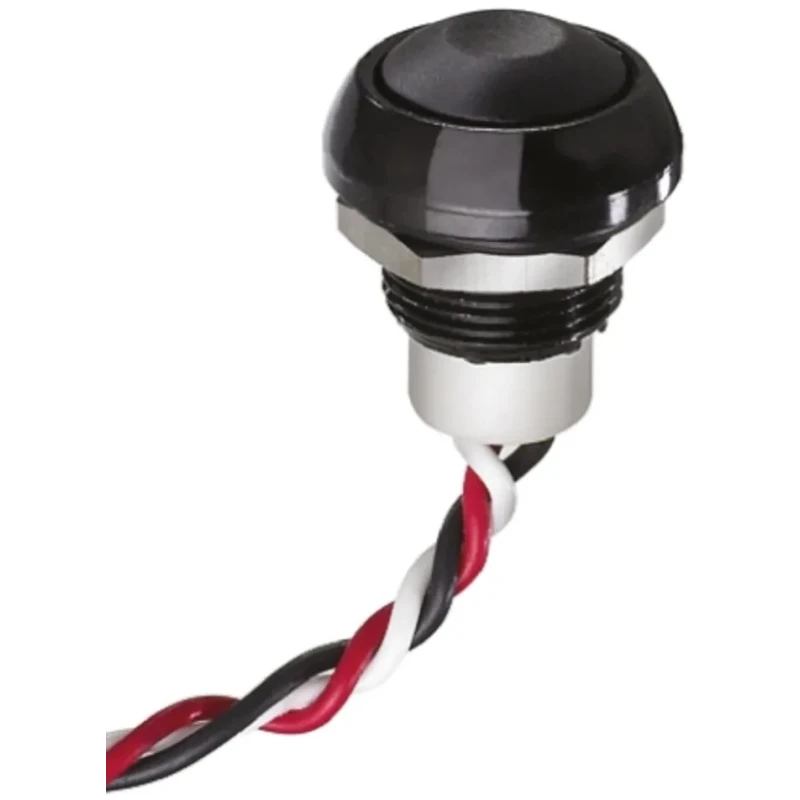

APEM IP67 Hall Effect Push Button Switch Plunger Pre-Wired Momentary Linear Output 4.5V-24V, 5mA Supply, 50mA Max Output

APEM IHSR36F2 Hall Effect Push Button Switch is a compact, robust switch designed for industrial, automation, and heavy-duty control applications. Featuring a plunger actuator with a momentary, linear output, this switch leverages hall effect sensor technology to provide reliable, contactless switching for up to 5 million cycles.

The switch is housed in an IP67 sealed enclosure, providing excellent resistance against dust and water ingress, making it suitable for harsh operating environments. It operates efficiently across a voltage supply range from 4.5 V to 24 V with a nominal supply current of 5 mA and supports a maximum output current of 50 mA.

Designed for use in applications requiring frequent activation such as load positioning, material handling equipment, lifts, and trucks, the momentary operation allows for rapid jogging control. The compact 12 mm diameter case and low behind-panel depth facilitate installation even in space-constrained environments.

Operating temperature range from -40°C to 85°C and the usage of hall effect technology ensure the switch maintains high performance and durability in a wide range of conditions. The pre-wired terminal type simplifies integration into control systems.

Operates at a minimum supply voltage of 4.5 V and maximum supply voltage of 24 V. Supply current nominally 5 mA with a maximum output current of 50 mA. Robust IP67 rated enclosure for dust and water resistance. Mechanical life rated for 5 million cycles provides durability.

Compact plunger actuator with momentary, linear output functionality. Operates effectively between -40°C and 85°C temperature range. Pre-wired terminals for easy installation. Utilizes hall effect sensor technology for contactless, reliable switching.

Ideal for industrial automation, heavy equipment control, and material handling applications. Manufactured in France with high-quality standards.

This product is part of EnvMart's Electronics & Electricals category, offering reliable and high-quality Push Button Switches for industrial and automation needs. Explore additional hall effect switches and related components in our catalog for comprehensive solutions.
