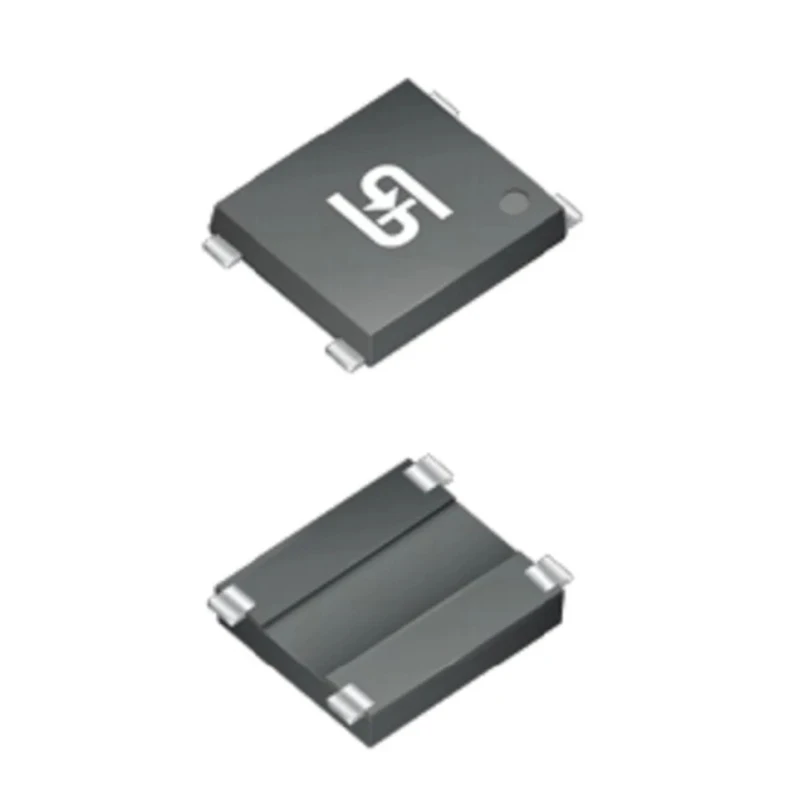

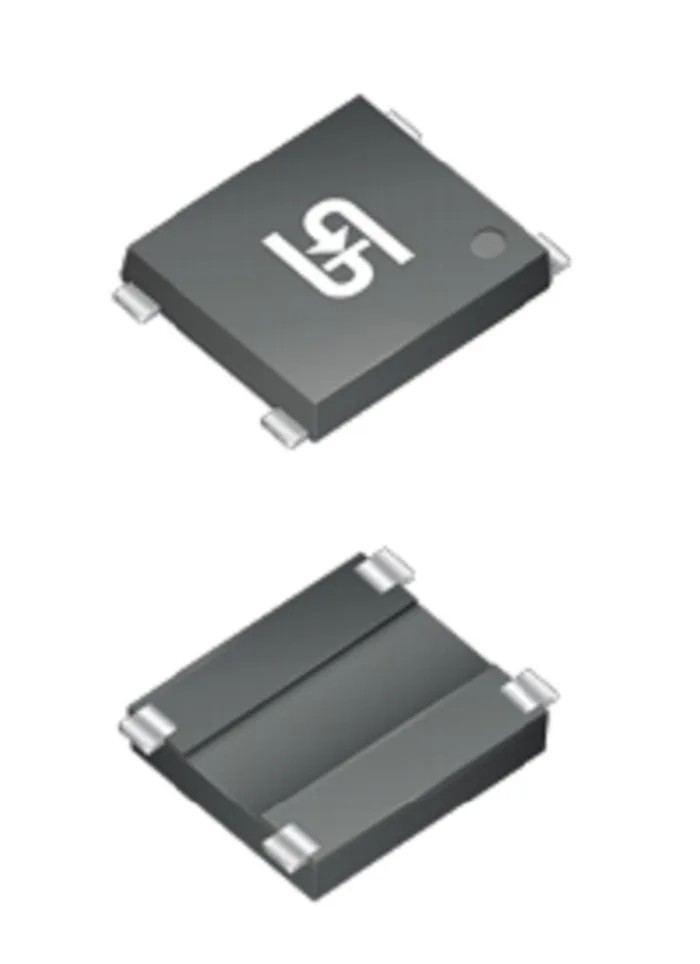

Taiwan Semiconductor Bridge Rectifier 1000 V 110 A Surface Mount YBS3007G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 8.6mm |
| Length | 6.7mm |
| Model | YBS3007G |
| Mount Type | Surface |
| Series | YBS3000 |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | YBS |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC 61249-2-21, RoHS, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Forward Current If | 3A |
| Peak Forward Voltage Vf | 1V |
Key Features
- This bridge rectifier delivers a peak reverse repetitive voltage of 1000 V.
- It has a forward current rating of 3 A with a high surge capability of 110 A.
- The device is housed in a YBS package with a 4-pin quad configuration.
- Suitable for applications including switching mode power supplies, adapters, and lighting.
- Offers reliable low-cost construction with moisture sensitivity level 1 compliance.
- Operates over a temperature range of -55°C to 150°C.
- Complies with RoHS and IEC 61249-2-21 for halogen-free and environmental safety.
Product Description
Taiwan Semiconductor YBS3007G Bridge Rectifier is a surface mount quad configuration device with a 4-pin YBS package. Rated at 1000 V peak reverse repetitive voltage and 110 A peak non-repetitive forward surge current, this product is ideal for demanding power rectification applications.
The device supports forward current up to 3 A and features a low peak forward voltage of 1 V, ensuring efficient electrical performance. It is glass passivated with a chip junction providing robust reliability for use in switching mode power supplies (SMPS), adapters, and lighting applications.
Designed to meet IEC 61249-2-21, RoHS, and UL standards, it is halogen free and environmentally compliant with moisture sensitivity level 1 per J-STD-020, suitable for automated placement in industrial manufacturing.
Operating within a temperature range from -55°C up to a maximum of 150°C, this bridge rectifier assures durability and stable operation under varied conditions. The compact dimensions of 6.7 mm length and 8.6 mm height allow for space-efficient circuit designs.
This bridge rectifier delivers a peak reverse repetitive voltage of 1000 V. It has a forward current rating of 3 A with a high surge capability of 110 A. The device is housed in a YBS package with a 4-pin quad configuration.
Suitable for applications including switching mode power supplies, adapters, and lighting. Offers reliable low-cost construction with moisture sensitivity level 1 compliance. Operates over a temperature range of -55°C to 150°C.
Complies with RoHS and IEC 61249-2-21 for halogen-free and environmental safety.
This Bridge Rectifier serves electrical, industrial, and manufacturing sectors requiring durable, low-cost, and reliable semiconductor diodes. It is particularly valuable in power management systems ensuring rectification efficiency, thermal stability, and environmental compliance.
Explore the extensive range of semiconductor components and power management devices on EnvMart for high-quality industrial-grade electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The YBS3007G bridge rectifier has a peak reverse repetitive voltage of 1000 V.
It can handle a peak non-repetitive forward surge current of 110 A.
The forward current rating of the YBS3007G is 3 A.
This model operates over a temperature range of -55°C to 150°C.
The dimensions are 6.7 mm in length and 8.6 mm in height.
It is housed in a YBS package with a quad configuration and 4 pins.
It complies with IEC 61249-2-21, RoHS, and UL standards.
The peak forward voltage is 1 V.
Yes, it has a moisture sensitivity level of 1, making it suitable for automated placement in industrial manufacturing.
It is suitable for applications including switching mode power supplies, adapters, and lighting.
The peak reverse current is 0 μA.
This bridge rectifier features a surface mount type.
