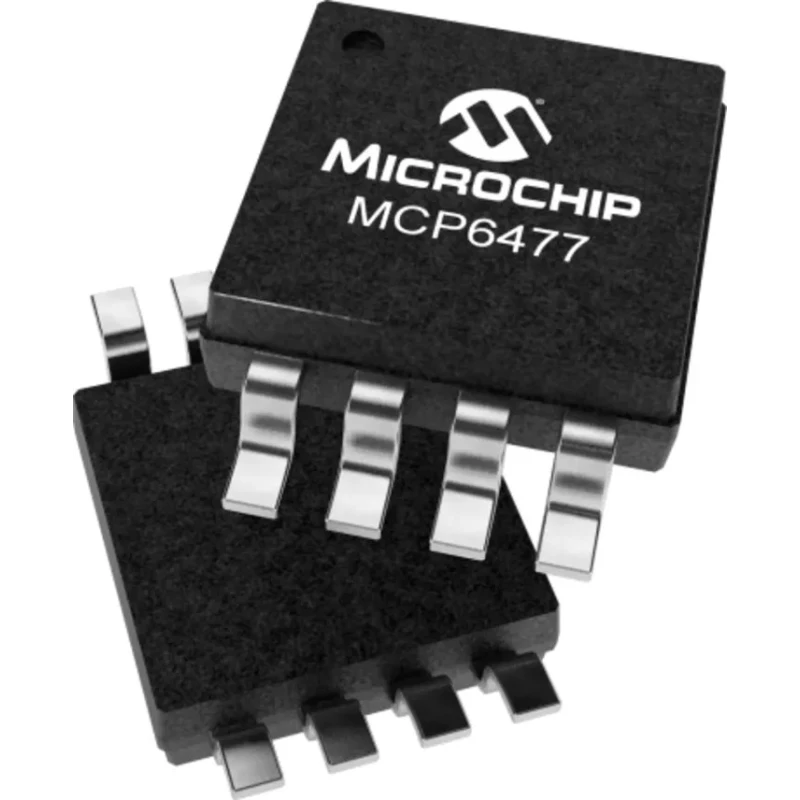

Microchip Operational Amplifier 3 MHz 8-Pin SOIC 5.5V MCP6477-E/SN

The Microchip MCP6477-E/SN is a precision operational amplifier designed for high-performance applications requiring a 3 MHz gain bandwidth. Its 8-pin SOIC surface mount package provides a compact form factor measuring 4.9mm in length, 3.9mm in width, and 1.75mm in height, ideal for space-constrained designs.

This amplifier operates with a maximum supply voltage of 5.5V and has a wide operating temperature range from -40°C to 125°C, allowing deployment in industrial, automotive, and harsh environment applications. The device features extremely low input bias current of ±1 pA and an input offset voltage of 1.6 mV (maximum), supporting precision analog signal processing.

With a slew rate of 3.2 V/μs and an output current capacity of 30 mA, the MCP6477-E/SN is suited for fast and accurate signal amplification tasks in electronic circuits. It complies with RoHS directives and meets the automotive standard AEC-Q100, underscoring its quality and reliability.

This operational amplifier's typical supply current is only 50 μA, contributing to efficient power usage in battery-powered devices. Its integrated EMI filtering enhances signal integrity across the intended frequency range.

The MCP6477 series from Microchip is widely used in industrial control systems, instrumentation, automotive electronics, and other applications requiring robust and stable analog amplification. The compact SOIC package supports automated surface mounting on printed circuit boards, simplifying manufacturing processes.

Designed for surface mount applications with an 8-pin SOIC package. Offers a gain bandwidth product of 3 MHz suitable for high-frequency amplification. Operates with a supply voltage up to 5.5V, ensuring versatility in various circuit designs.

Extends operating temperature range from -40°C to 125°C, enabling reliable performance in harsh environments. Low input bias and offset currents provide precision signal amplification. Features a slew rate of 3.2 V/μs for fast signal response.

Complies with RoHS standards and automotive AEC-Q100 certification. Compact dimensions with 4.9mm length, 3.9mm width, and 1.75mm height. Typical supply current of 50 μA ensures low power consumption. Output current capability of up to 30 mA for driving loads.

Explore EnvMart’s Electronics category for this and other high-quality Operational Amplifiers and semiconductor components, suited for diverse industrial, laboratory, and automotive applications.
