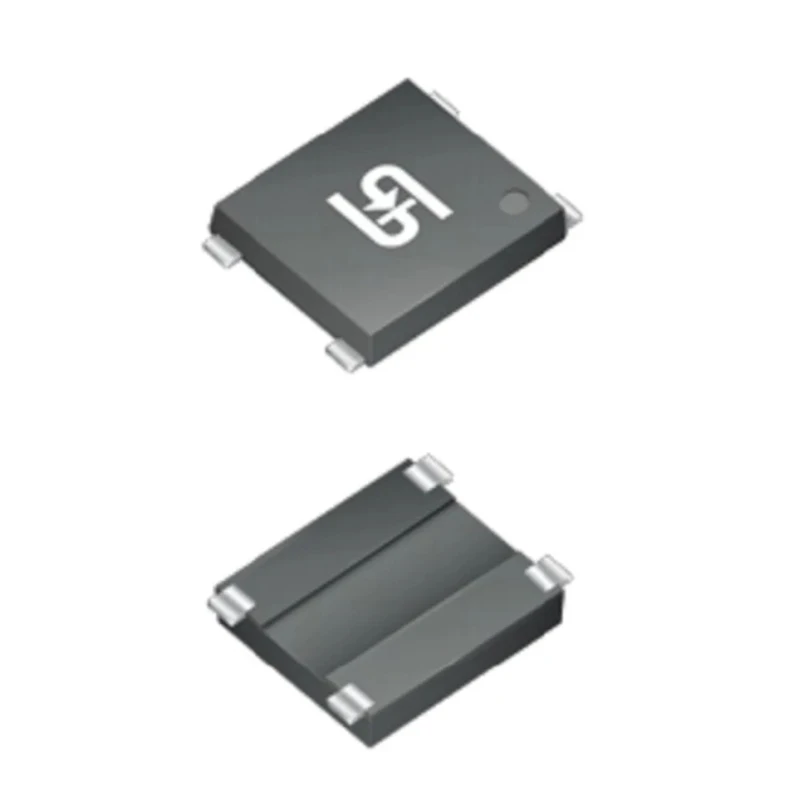

Taiwan Semiconductor Bridge Rectifier Surface Mount 600 V 110 A Quad 4-Pin YBS3005G

Taiwan Semiconductor YBS3005G Bridge Rectifier offers a reliable surface mount solution with a quad 4-pin configuration. Rated for 600 V peak reverse repetitive voltage and capable of carrying a forward current of 3 A, it is suitable for various industrial and electronic applications such as switching mode power supplies (SMPS), power adapters, and lighting systems.

This device features a glass passivated chip junction, contributing to its durability and stability under electrical stress. The molded plastic construction ensures a low-cost, rugged design with good moisture resistance at level 1 per J-STD-020 standards. Its capability to handle high peak forward surge currents of up to 110 A enhances its suitability for transient power events.

The bridge rectifier operates safely over a temperature range from -55°C to 150°C, making it suitable for demanding environments. Compliance with RoHS and IEC 61249-2-21 halogen-free directives ensures environmentally friendly and regulatory-compliant usage.

With a peak forward voltage of 1 V and a virtually negligible peak reverse current of 0 μA, the YBS3005G ensures efficient and reliable rectification with minimal losses. The compact dimensions of 6.7 mm length and 8.6 mm height help in high-density circuit designs, and its surface mount package supports automated assembly processes.

Glass passivated chip junction enhances device reliability. Perfect for SMPS, adapters, and lighting applications. Robust molded plastic package ensures durability and low cost. Supports high surge current for transient conditions.

Wide operating temperature range from -55°C to 150°C. Meets RoHS and halogen-free standards for eco-friendly compliance. Moisture sensitivity level 1 for improved handling during manufacturing. Low forward voltage drop for efficient operation.

Compact size supports space-saving PCB layouts. Zero microampere peak reverse current reduces leakage losses.

This bridge rectifier is ideal for use in industrial, electronics manufacturing, power supply, and lighting sectors. It is well-suited for commercial and laboratory electronic equipment where reliable AC to DC conversion is required. Browse more semiconductor and Bridge Rectifier products at EnvMart for expanded options and specifications.
