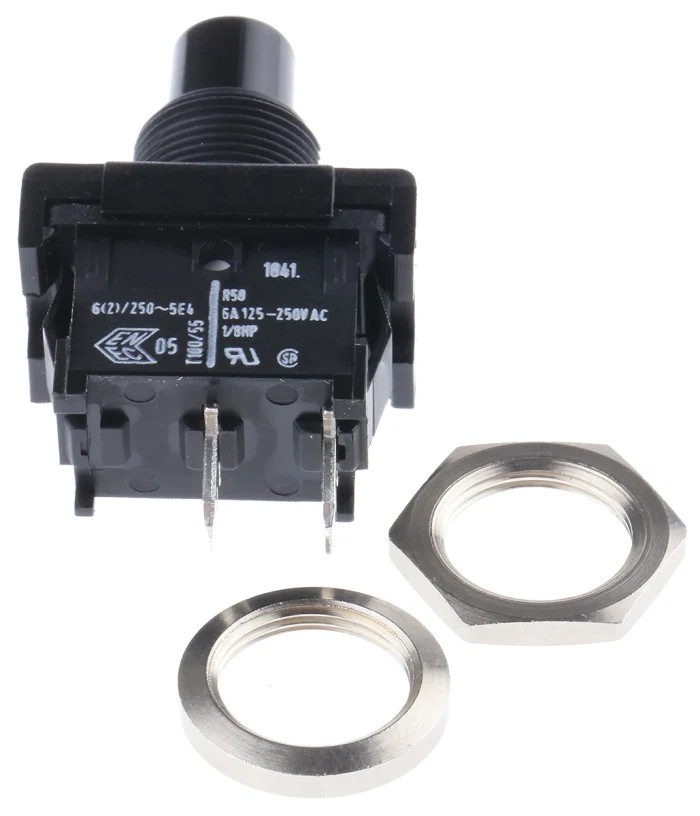

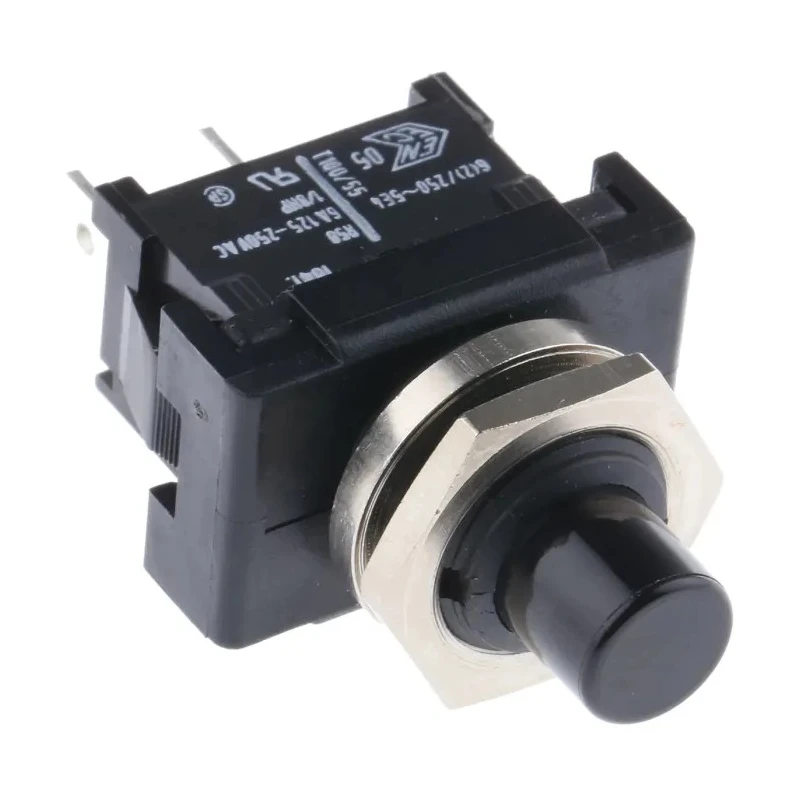

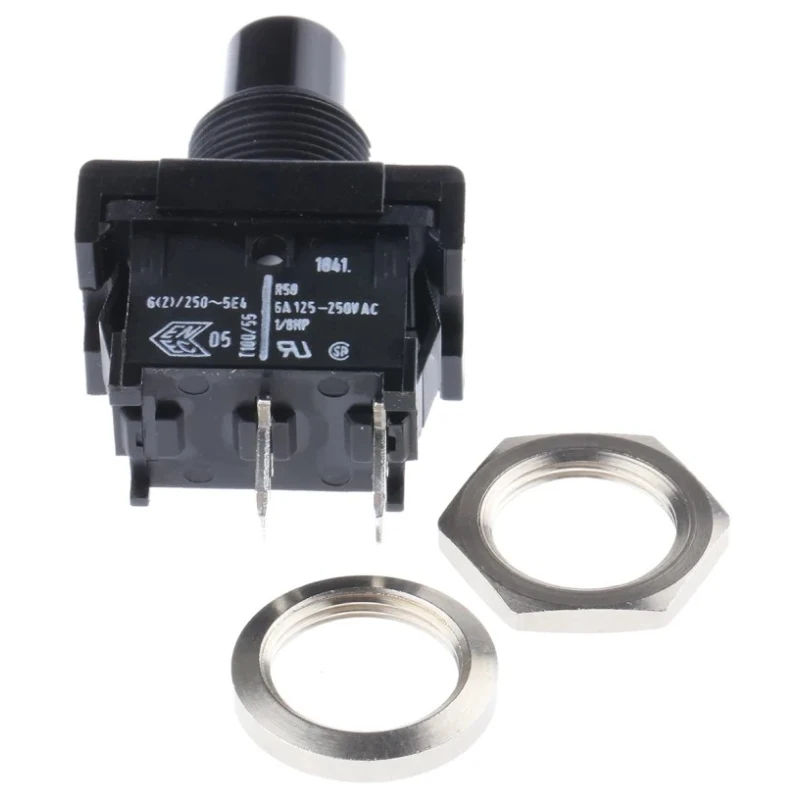

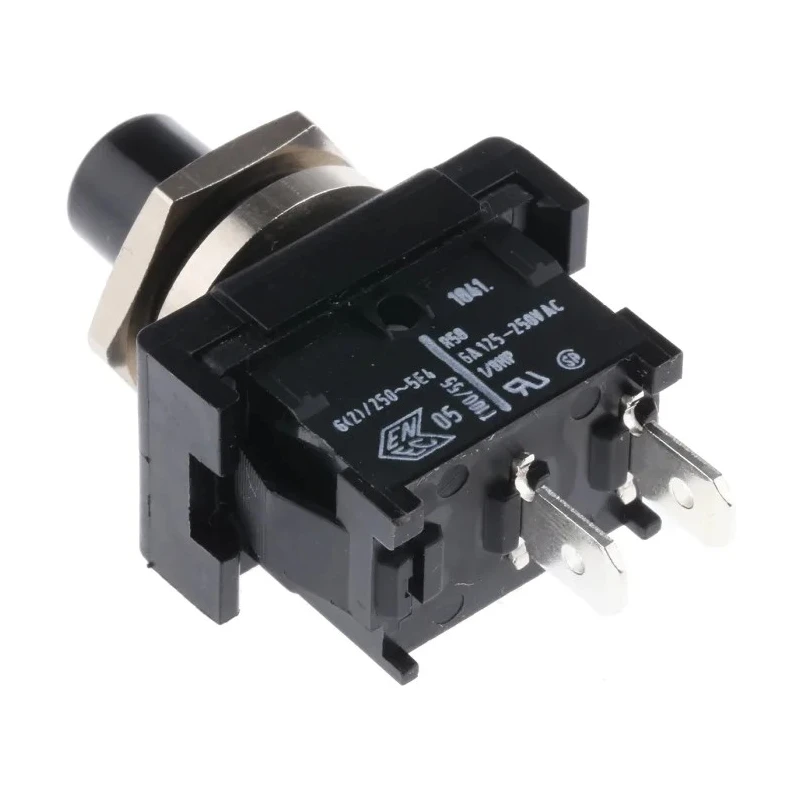

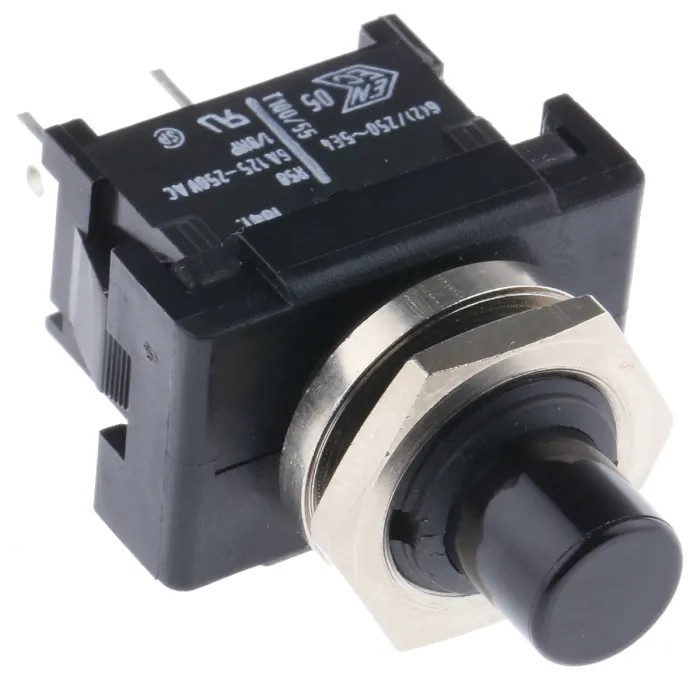

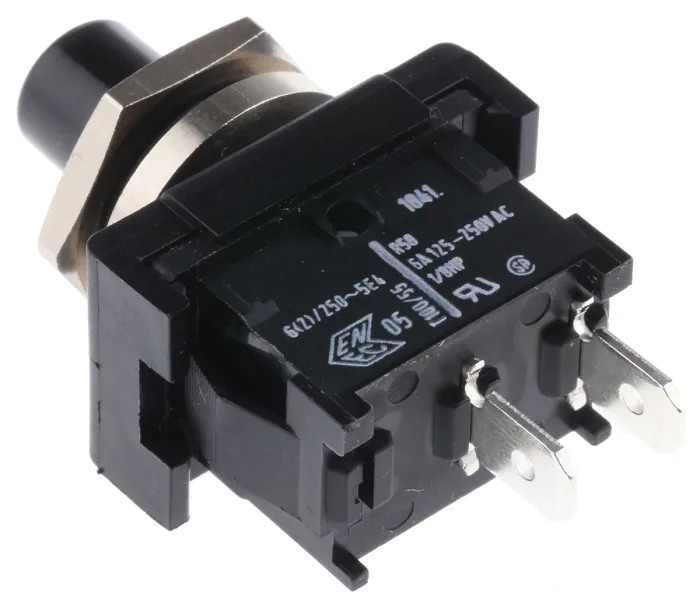

Marquardt Push Button Switch Momentary Panel SPST Black LED IP40 250 V ac 1841.1201

Marquardt 1841.1201 Push Button Switch is a high-quality momentary panel mount SPST switch designed for industrial and commercial electrical applications. It features a black actuator button with black LED illumination and an IP40 rating, making it suitable for indoor use where protection against solid foreign objects is required.

The switch operates at 250 V AC voltage with a contact current rating of up to 6 A, ensuring reliable switching performance. It uses silver contacts providing superior conductivity and mechanical robustness. The 4.8 mm Faston tab terminals facilitate easy and secure electrical connections.

Designed with a threaded M12 x 0.75 bush and minimum contact distance of 3 mm, this push button switch meets UL 94 V-2 flammability standards and has a mechanical life expectancy of 100,000 operations, ensuring durability. Its maximum operating temperature is 120°C, which supports demanding ambient conditions encountered in industrial settings.

This model is suited for Class II appliances and various electrical control panel applications that require a momentary on-off switch function. Its momentary operation provides momentary control in circuits for machinery and automation.

The actuator color is black with button style for tactile feedback. Terminal type is tab for quick connection. IP rating of IP40 provides protection against solid objects larger than 1 mm. The switch complies with international standards including UL and CSA for safety and performance.

Maximum operating temperature is 120°C ensuring robustness. Contact configuration is SPST suitable for simple on/off control circuits. Manufactured in Tunisia, the switch combines quality and precision.

Choose Marquardt Push Button Switches for reliable, long-lasting electrical switching solutions in industrial, automation, and control panel applications. Explore EnvMart categories for comprehensive switch and electrical component selections.
