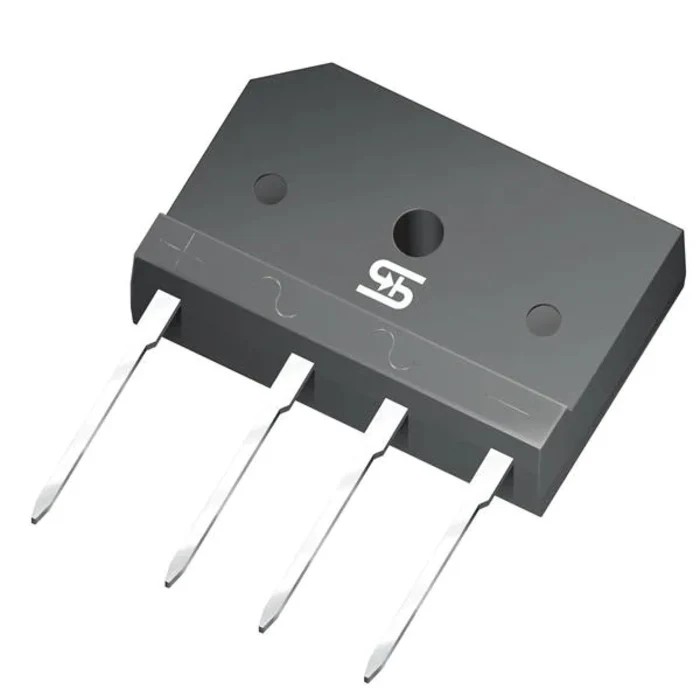

Taiwan Semiconductor Bridge Rectifier, 800 V Peak Reverse Voltage, 208 A Peak Surge Current, 4-Pin Quad T15JA06G-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 30mm |
| Length | 29.3mm |
| Model | T15JA06G-K |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | TS-6PL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, IEC 61249-2-21, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 208A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Designed for through-hole mounting with a TS-6PL package.
- Operates reliably between -55°C to 150°C temperature range.
- Forward current rating of 15 A with a peak forward voltage of 1.1 V.
- Glass passivated chip junction ensures durability and performance.
- RoHS compliant and certified under IEC 61249-2-21 and UL standards.
- High surge current capability suitable for power supply and lighting applications.
- Measures 29.3 mm in length and 30 mm in height.
- Quad configuration ideal for switching mode power supplies and adapters.
Product Description
Taiwan Semiconductor T15JA06G-K bridge rectifier is a high-performance semiconductor device designed to handle peak reverse repetitive voltage up to 800 V and peak surge current of 208 A. It features a robust TS-6PL package with through-hole mount configuration, making it suitable for printed circuit board assembly.
This bridge rectifier supports single-phase electrical systems and is tailor-made for industrial and electronic applications including switching mode power supplies, adapters, and lighting circuits. The device operates efficiently across a wide temperature range from -55°C to 150°C, guaranteeing reliable performance under diverse conditions.
The glass passivated chip junction delivers enhanced durability and stability, while compliance with RoHS, IEC 61249-2-21, and UL further ensures industry-standard safety and environmental compliance. Its quad configuration and 4-pin design contribute to versatile integration in electronic systems, providing efficient rectification with a forward current rating of 15 A and a low peak forward voltage of 1.1 V.
The compact dimensions of 29.3 mm length and 30 mm height allow for space-efficient circuit designs. This component is ideal for use in industrial electronics, laboratory equipment, HVAC systems, and manufacturing machinery where power conversion reliability is paramount.
Designed for through-hole mounting with a TS-6PL package. Operates reliably between -55°C to 150°C temperature range. Forward current rating of 15 A with a peak forward voltage of 1.1 V. Glass passivated chip junction ensures durability and performance.
RoHS compliant and certified under IEC 61249-2-21 and UL standards. High surge current capability suitable for power supply and lighting applications. Measures 29.3 mm in length and 30 mm in height. Quad configuration ideal for switching mode power supplies and adapters.
Explore more semiconductors and Bridge Rectifiers on EnvMart for your industrial, laboratory, and commercial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of this bridge rectifier is 800 V.
This model has a forward current rating of 15 A.
The peak forward voltage is 1.1 V.
It operates reliably between -55°C to 150°C.
It has a peak non-repetitive forward surge current capability of 208 A.
This bridge rectifier is designed for through-hole mounting with a TS-6PL package.
It measures 29.3 mm in length and 30 mm in height.
It features a quad configuration, suitable for various electronic applications.
It is RoHS compliant and certified under IEC 61249-2-21 and UL standards.
This model is suitable for industrial and electronic applications, including switching mode power supplies and lighting circuits.
It has a total of 4 pins.
The maximum operating temperature is 150°C.
