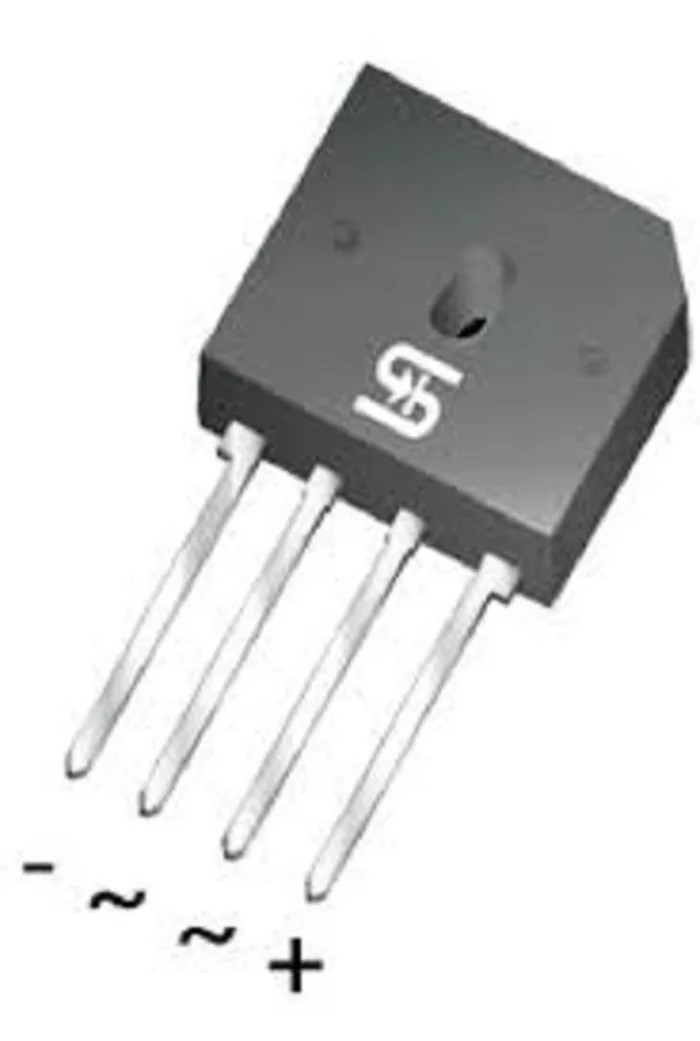

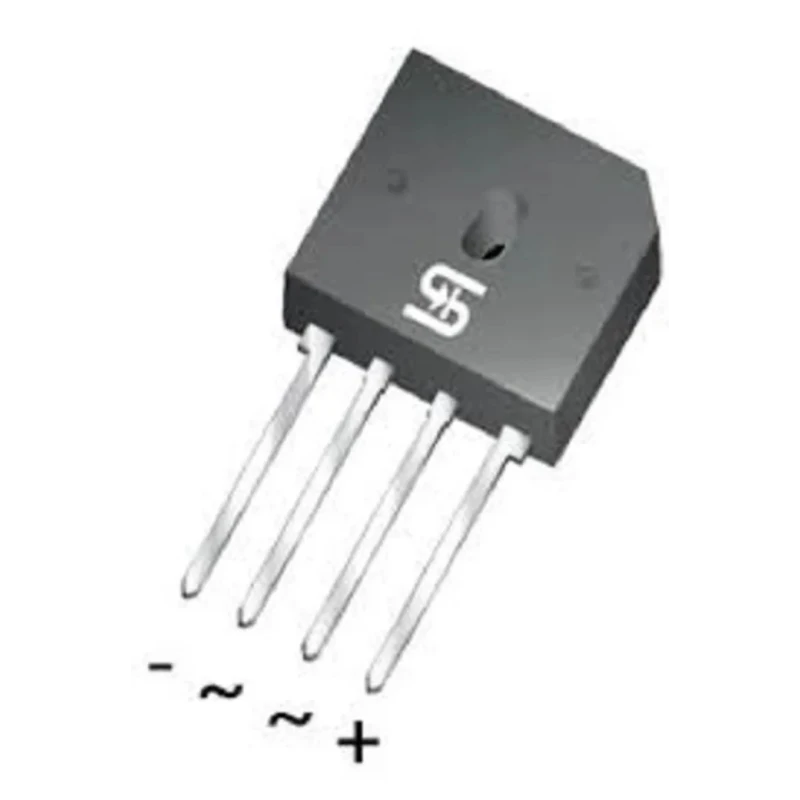

Taiwan Semiconductor Bridge Rectifier, 1000 V, 220 A, 4-Pin Quad GBU1507
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 22.3mm |
| Length | 36.8mm |
| Model | GBU1507 |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, IEC 61249-2-21, UL |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- High surge current capability ensures performance under demanding electrical conditions.
- Through hole mount type compatible with printed circuit boards.
- Maximum operating temperature up to 150°C for reliability in harsh environments.
- Halogen-free and RoHS compliant for environmental safety.
- UL recognized component with compliance to IEC 61249-2-21 standards.
- Ideal for applications such as switching mode power supplies, adapters, TVs, and monitors.
- Compact dimensions with a length of 36.8 mm and height of 22.3 mm.
- Features a low peak forward voltage of 1.1 V for efficient rectification.
Product Description
Taiwan Semiconductor GBU1507 Bridge Rectifier provides robust electrical performance with a peak reverse repetitive voltage of 1000 V and a peak non-repetitive forward surge current of 220 A.
This 4-pin quad configuration device is designed for through-hole mounting, making it suitable for integration into printed circuit boards used in power electronics. It has a forward current of 15 A and peak forward voltage of 1.1 V, delivering efficient and reliable rectification in industrial and commercial electronics.
With a maximum operating temperature of 150°C and a minimum of -55°C, the rectifier withstands extreme environmental conditions. It is RoHS compliant, halogen-free according to IEC 61249-2-21, and UL recognized for safety and quality.
The compact size, with a length of 36.8 mm and height of 22.3 mm, allows easy incorporation into various power supplies, adapters, TVs, and monitors. High surge current capability ensures performance under demanding electrical conditions.
Through hole mount type compatible with printed circuit boards. Maximum operating temperature up to 150°C for reliability in harsh environments. Halogen-free and RoHS compliant for environmental safety. UL recognized component with compliance to IEC 61249-2-21 standards.
Ideal for applications such as switching mode power supplies, adapters, TVs, and monitors. Compact dimensions with a length of 36.8 mm and height of 22.3 mm. Features a low peak forward voltage of 1.1 V for efficient rectification.
Wide operating temperature range from -55°C to 150°C ensures broad usability.
This Bridge Rectifier is essential for industrial, electronic, and power management applications requiring reliable AC to DC conversion. Explore more semiconductor components at EnvMart to complement your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GBU1507 has a peak reverse repetitive voltage of 1000 V.
The maximum operating temperature for this model is 150°C.
This bridge rectifier has a forward current rating of 15 A.
It is designed for through-hole mounting, making it suitable for printed circuit boards.
The peak non-repetitive forward surge current is rated at 220 A.
The dimensions are 36.8 mm in length and 22.3 mm in height.
Yes, it is RoHS compliant, halogen-free, and UL recognized, complying with IEC 61249-2-21 standards.
The minimum operating temperature is -55°C.
The peak forward voltage is 1.1 V, which aids in efficient rectification.
It is ideal for applications such as switching mode power supplies, adapters, TVs, and monitors.
This model features a 4-pin configuration.
The configuration type is quad, allowing for versatile integration in circuits.
