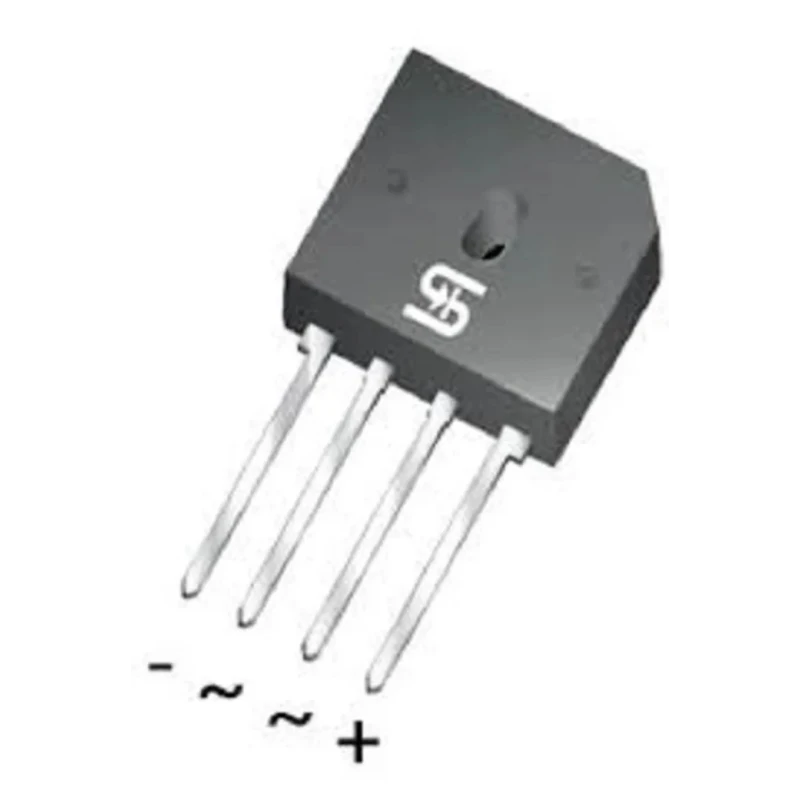

Taiwan Semiconductor Bridge Rectifier 600 V 220 A 4-Pin Quad GBU1505
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 36.8mm |
| Length | 22.3mm |
| Model | GBU1505 |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | GBU |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | UL, IEC 61249-2-21, RoHS |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 15A |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Designed for through hole mounting for ease of PCB integration.
- Capable of handling a forward current of 15A continuously.
- Peak reverse repetitive voltage rating of 600 V ensures robust operation.
- High surge current capacity with peak non-repetitive forward surge current of 220 A.
- Operates reliably within temperature range of -55°C to 150°C.
- Compact package with length of 22.3 mm and height of 36.8 mm.
- Halogen-free and RoHS compliant, meeting modern environmental standards.
- UL certified, increasing safety and compliance assurance.
Product Description
Taiwan Semiconductor GBU1505 Bridge Rectifier is designed as a reliable power electronic component for various industrial and commercial applications requiring AC to DC power conversion.
This bridge rectifier features a peak reverse repetitive voltage of 600 V and a continuous forward current rating of 15 A, suitable for high robustness in power regulation tasks. Its 4-pin quad configuration and through hole mount type facilitate straightforward PCB assembly.
Its maximum operating temperature of 150°C and minimum temperature rating of -55°C ensure performance stability across a wide temperature range. The device also supports a peak non-repetitive forward surge current of 220 A, accommodating high transient currents during power spikes.
Compliant with RoHS and halogen-free standards, the GBU1505 supports environmentally safe manufacturing and operation. It is UL recognized under file number E-326243, demonstrating adherence to quality and safety regulations.
Through hole mount type enables secure and stable PCB installation. High surge current capability protects circuits during transient conditions. Compact dimensions of 22.3 mm length and 36.8 mm height suit compact device designs.
Quad configuration offers balanced and efficient power rectification. Operable in demanding thermal environments from -55°C to 150°C. RoHS and halogen-free compliant to meet modern regulatory requirements. UL certification assures quality and safety compliance for industrial use.
Applications include switching mode power supplies, adapters, TV and monitor electronics.
This bridge rectifier suits industrial, electronic component manufacturing, and repair environments, ensuring efficient conversion and protection in power circuitry designs. Its standardized packaging and pin configuration allow easy replacement and integration into legacy systems.
Explore the Electronics & Electricals category for related semiconductor and Bridge Rectifier products on EnvMart for professional-grade components to support your projects and production.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GBU1505 bridge rectifier has a peak reverse repetitive voltage rating of 600 V, ensuring robust operation in power regulation tasks.
This model is capable of handling a continuous forward current of 15 A, making it suitable for various applications requiring steady power conversion.
The GBU1505 operates reliably within a maximum temperature of 150°C, allowing it to function in demanding thermal environments.
This bridge rectifier has a compact package with a length of 22.3 mm and a height of 36.8 mm, suitable for space-constrained designs.
The GBU1505 features a quad configuration, which offers balanced and efficient power rectification for various applications.
The GBU1505 is RoHS compliant and halogen-free, meeting modern environmental standards for safe manufacturing and operation.
It supports a peak non-repetitive forward surge current of 220 A, accommodating high transient currents during power spikes.
This bridge rectifier is designed for through hole mounting, facilitating straightforward PCB assembly and secure installation.
The GBU1505 is UL certified, which assures quality and compliance with safety regulations for industrial use.
The minimum operating temperature for the GBU1505 is -55°C, ensuring performance stability in low-temperature environments.
This bridge rectifier is suitable for applications such as switching mode power supplies, adapters, and electronics in TVs and monitors.
The GBU1505 features a 4-pin configuration, which allows for easy integration into various electronic designs.
