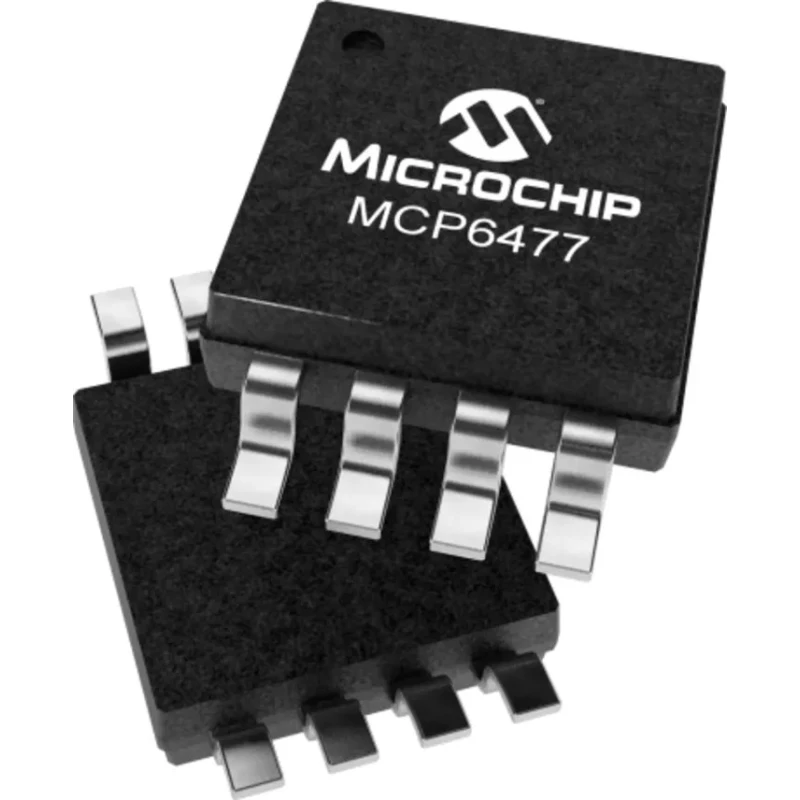

Microchip Operational Amplifier SOIC, 8-Pin, 3 MHz Gain Bandwidth, 5.5V MCP6477-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | MCP6477-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6477 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Supply Voltage | 1.8V to 5.5V |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 5.5V |
| Supply Current | 50 μA (typical) |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | ±1 pA |
| Vos - Input Offset Voltage | 1.6 mV |
| Slew Rate | 3.2V/μs |
| Gain bandwidth product | 1 MHz (typical) |
| Input offset voltage | 1.6 mV (maximum) |
| EMIRR at 1.8 GHz | 95 dB (typical) |
Key Features
- High gain bandwidth product of 3 MHz supports high-speed amplification needs.
- Surface-mount SOIC package with 8 pins for compact PCB design integration.
- Operates with a supply voltage of 5.5V for versatile applications.
- Low input bias current of ±1 pA ensures high precision signal amplification.
- Input offset voltage maximum of 1.6 mV provides accurate signal processing.
- Slew rate of 3.2 V/μs enables rapid signal response.
- Extended operating temperature range from -40°C to 125°C suits industrial environments.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Microchip MCP6477-E/SN is an operational amplifier designed for precise and reliable analog signal amplification. Featuring a 3 MHz gain bandwidth product and an 8-pin SOIC surface-mount package, this device operates at a supply voltage up to 5.5V making it ideal for a broad range of electronics applications.
This amplifier offers very low input bias current of ±1 pA and a maximum input offset voltage of 1.6 mV, allowing accurate processing of low-level input signals. Its slew rate of 3.2 V/μs ensures it can respond quickly to rapid changes in input signals. The device performs reliably within an extended temperature range of -40°C to +125°C, suitable for demanding industrial and automotive environments.
The MCP6477 series complies with RoHS standards, ensuring environmentally safe manufacturing and operation. With an output current of up to 30 mA and conformance to the automotive AEC-Q100 standard, this operational amplifier is well suited for applications in automotive electronics, industrial instrumentation, and consumer electronics requiring robust performance.
High gain bandwidth product of 3 MHz supports high-speed amplification needs. Surface-mount SOIC package with 8 pins enables compact PCB layouts. Operates at a supply voltage of 5.5V suitable for various power domains. Extremely low input bias current improves signal integrity and reduces offset.
Broad temperature tolerance accommodates harsh industrial conditions. RoHS compliant ensuring reduced environmental impact. Output current capacity makes it suitable for moderate load driving. Qualifies for automotive applications with AEC-Q100 standard compliance.
Applications include industrial control systems, sensor interfaces, automotive electronics, and other analog signal conditioning purposes. This product supports designers in achieving efficient and precise amplification with stable operation across temperature extremes.
Explore more electronic components and Operational Amplifiers for your next project at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz, supporting high-speed amplification needs.
It operates within a supply voltage range of 1.8V to 5.5V, making it suitable for various power domains.
This model features a very low input bias current of ±1 pA, which helps in maintaining signal integrity.
The maximum input offset voltage is 1.6 mV, providing accurate signal processing capabilities.
The slew rate for this operational amplifier is 3.2 V/μs, enabling rapid signal response to changes.
This operational amplifier has a height of 1.75 mm, a length of 4.9 mm, and a width of 3.9 mm.
It can provide an output current of up to 30 mA, suitable for driving moderate loads.
The device operates within an extended temperature range of -40°C to +125°C, making it suitable for industrial environments.
It comes in an 8-pin SOIC surface-mount package, which allows for compact PCB design integration.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing and operation.
This operational amplifier qualifies for the automotive AEC-Q100 standard, making it suitable for automotive applications.
It is suitable for applications such as industrial control systems, sensor interfaces, automotive electronics, and analog signal conditioning.
