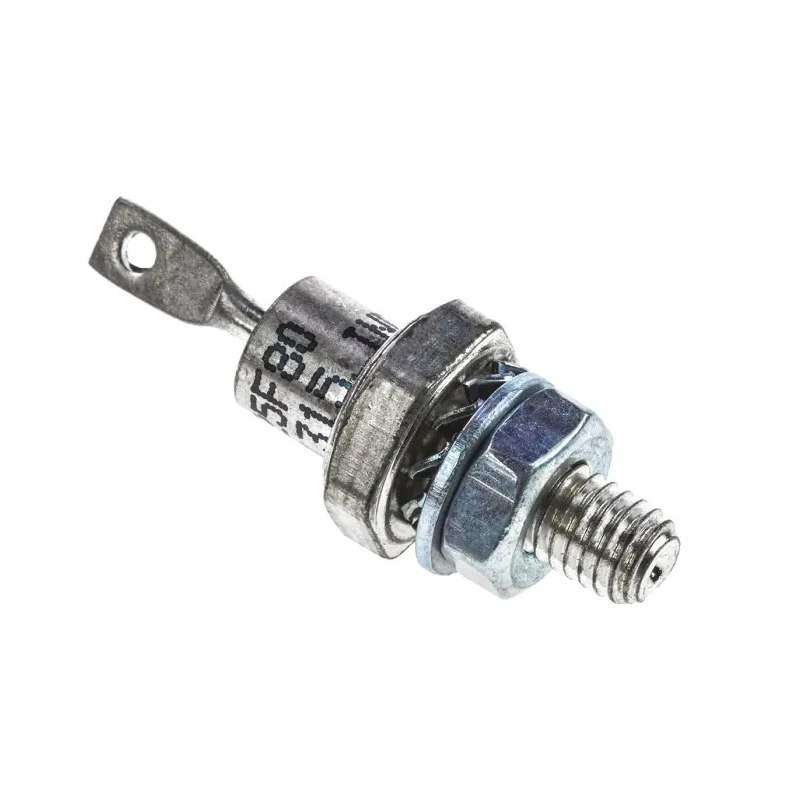

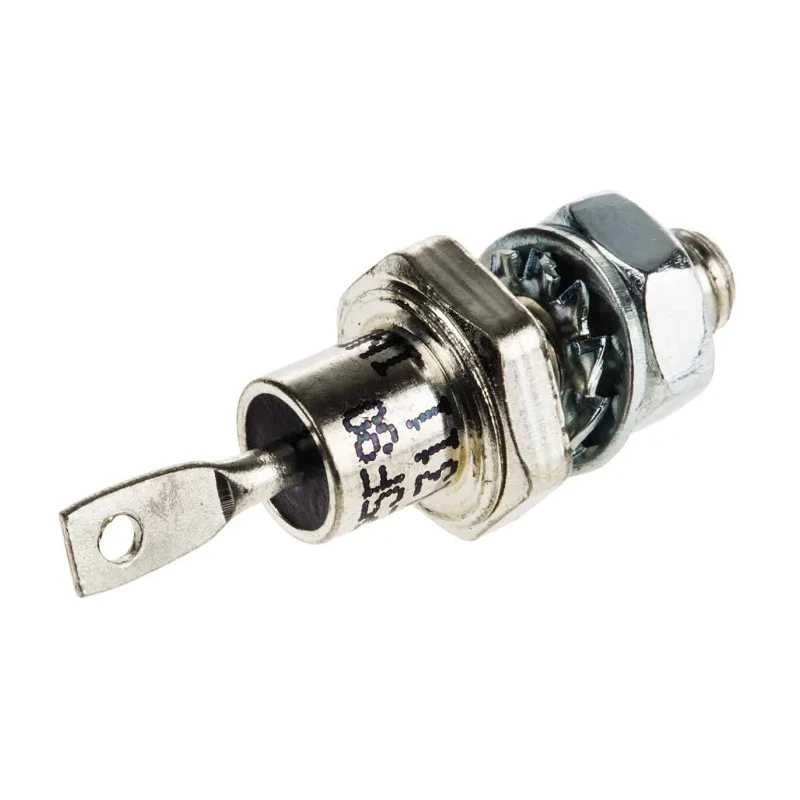

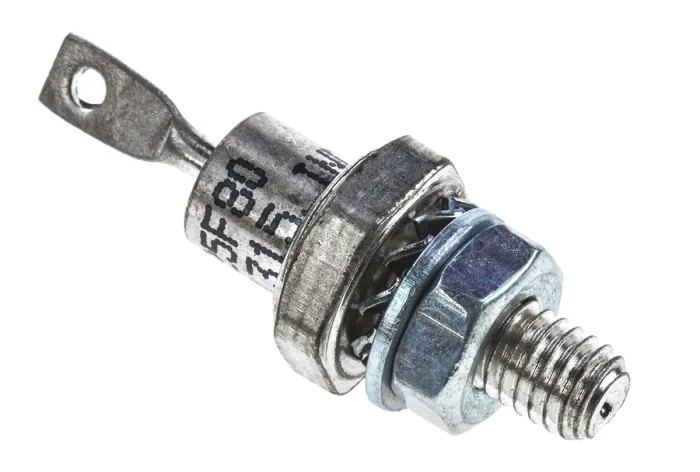

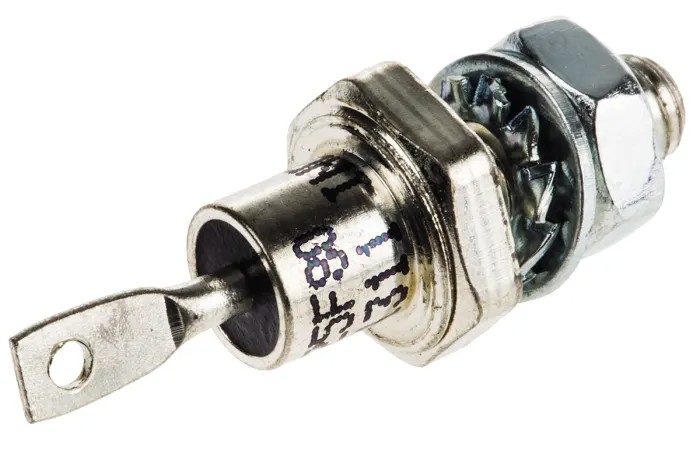

Vishay Standard Recovery Switching Diode 800 V 25 A Screw Mount DO-203AA VS-25F80
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-25F80 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-25F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 373A |
| Maximum Forward Voltage Vf | 1.3V |
| Vishay 1200 V 25 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- Designed for standard recovery switching applications requiring robust diode performance.
- Features a durable screw mount DO-203AA package for secure mechanical and electrical connection.
- Maximum continuous forward current of 25 amps ensures reliable high current carrying capacity.
- Peak reverse repetitive voltage rated at 800 volts for high-voltage circuit protection.
- Low forward voltage drop of 1.3 V minimizing power loss during operation.
- Wide operating temperature range from -65°C to 175°C suits diverse environments.
- Compact physical dimensions measuring 31.8 mm height, 12.69 mm length, and 11 mm diameter and width.
- Standard recovery characteristics to balance switching speed and efficiency in industry applications.
Product Description
Vishay VS-25F80 is a standard recovery switching diode designed for industrial and electronic applications requiring robust rectification and switching performance. Rated with a maximum continuous forward current of 25 A and peak reverse voltage of 800 V, this diode effectively handles high voltage and current stresses.
The diode comes in a durable and industry-standard DO-203AA screw mount package type that facilitates secure mounting and efficient heat dissipation. Its physical dimensions of 31.8 mm height, 12.69 mm length, and 11 mm diameter and width make it suitable for compact assemblies.
Featuring a low maximum forward voltage drop of 1.3 V, it maintains efficiency by reducing conduction losses. The device supports a broad temperature range from -65°C minimum to 175°C maximum operating temperature, making it reliable in extreme conditions.
Its stud cathode diode configuration with 2 pins simplifies installation in various circuits. The peak non-repetitive forward surge current capability of 373 A further enhances its robustness under transient events.
Compliant with RoHS standards, the diode meets environmental safety guidelines. This Vishay diode model VS-25F80 is suitable for use in industrial power rectification, switching power supplies, motor control, and other demanding electronic applications.
Designed for reliable industrial and electronic switching diode applications. Screw mount DO-203AA package ensures robust mechanical stability. High current capability with 25 amp continuous forward current rating. Supports high voltage circuits with 800 V peak reverse voltage tolerance.
Low forward voltage drop minimizes power dissipation during operation. Wide operating temperature range from -65°C to 175°C for diverse environments. Compact physical size for convenient integration into electronic devices.
RoHS compliant for environmentally responsible production. Stud cathode configuration with two pins for straightforward circuit implementation. Suitable for use in power rectification, motor control, and switching power supplies.
Explore Vishay diode products on EnvMart for high-quality semiconductor components optimized for industrial electronics.
Explore more products in our Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the VS-25F80 diode is 25 A.
This diode is rated for a peak reverse repetitive voltage of 800 V.
The physical dimensions of this diode are 31.8 mm in height, 12.69 mm in length, and 11 mm in diameter and width.
The maximum forward voltage drop for the VS-25F80 is 1.3 V.
This model operates within a temperature range of -65°C to 175°C.
The diode features a screw mount type, specifically in a DO-203AA package.
The VS-25F80 has a stud cathode configuration with 2 pins.
The peak non-repetitive forward surge current capability is 373 A.
Yes, this diode is compliant with RoHS standards.
The VS-25F80 is suitable for industrial power rectification, switching power supplies, and motor control applications.
The peak reverse current for the VS-25F80 is 12 mA.
This diode belongs to the VS-25F series.
