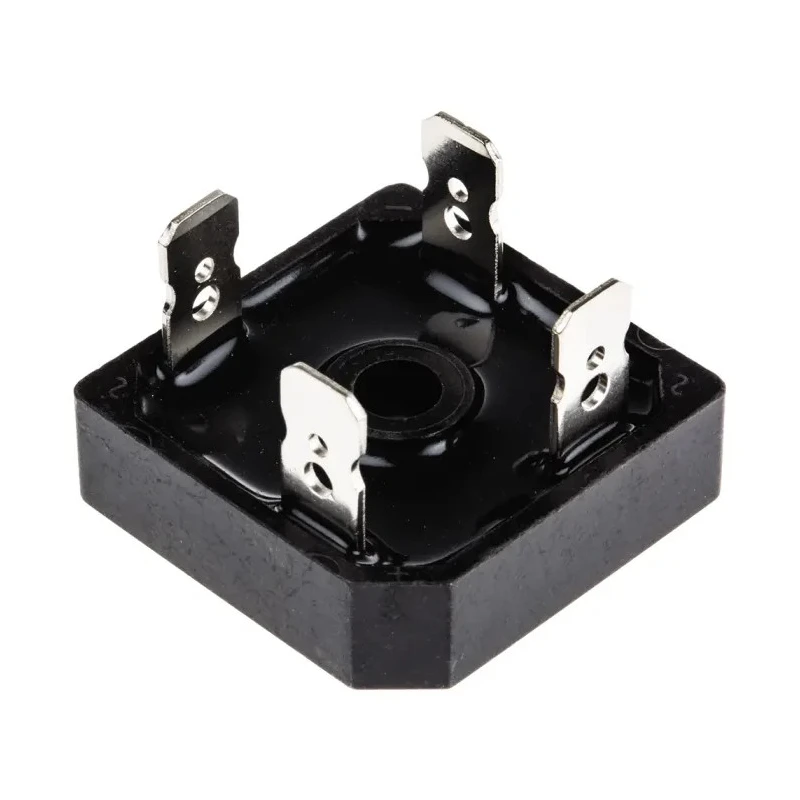

Vishay Bridge Rectifier, 800 V, 500 A, 4-Pin Single, Screw Mount, D-34 Package VS-36MB80A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-36MB80A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-36MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.14V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 600 V 500 A, 4-Pin SingleBrand | Vishay |
Key Features
- Equipped with screw mount type and D-34 package for secure and reliable installation.
- Operates within a temperature range from -55°C to 150°C for versatile applications.
- Offers a maximum forward current rating of 35 A for continuous operation.
- Features high thermal conductivity package with electrically insulated case to enhance performance.
- Suitable for industrial and electronic applications requiring high power rectification.
- Compact dimensions of 28.5 mm length, 28.5 mm width, and 9.8 mm height support space-constrained designs.
- Includes push-on, wrap around, or solder universal 3-way terminals for flexible connectivity.
- Peak forward voltage of 1.14 V ensures efficient conduction with low losses.
Product Description
Vishay VS-36MB80A Bridge Rectifier is a semiconductor device designed to convert alternating current (AC) to direct current (DC) through full-wave rectification. This 4-pin single phase bridge rectifier operates at a peak reverse repetitive voltage of 800 V and supports a peak forward current of 35 A. The device includes a peak non-repetitive forward surge current rating of 500 A and features a maximum operating temperature of 150°C, making it suitable for demanding industrial and electronic applications.
The rectifier is housed within a D-34 package type with screw mount configuration ensuring reliable mechanical stability. Its high thermal conductivity package with electrically insulated case enhances heat dissipation and electrical isolation, allowing efficient performance in compact spaces.
The device includes universal 3-way terminals designed for push-on, wrap around, or solder connection methods, making it versatile for various PCB mounting requirements. Dimensions measure 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height, facilitating integration into tight circuit board layouts.
This Bridge Rectifier is ideally suited for industrial, power supply, and electronic control systems requiring efficient full-wave rectification. It offers a peak forward voltage drop of 1.14 V, ensuring minimal conduction loss during operation. The device is manufactured in India and does not carry automotive certification but meets quality standards for semiconductor devices.
Equipped with screw mount and D-34 package for durable installation. Operates efficiently between -55°C and 150°C temperature range. Supports continuous forward current of 35 A with 500 A surge capacity. Compact design with 28.5 mm × 28.5 mm × 9.8 mm dimensions.
Flexible terminal options including push-on, wrap around, and solder. Highly thermally conductive electrically insulated package. Designed for industrial and electronic power rectification. Explore the wide range of Vishay semiconductor components on EnvMart for high reliability and superior performance in your electronic projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Vishay VS-36MB80A bridge rectifier is 800 V.
This model supports a maximum forward current rating of 35 A for continuous operation.
The peak non-repetitive forward surge current rating is 500 A.
The dimensions of this bridge rectifier are 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height.
It operates efficiently within a temperature range from -55°C to 150°C.
This model uses a screw mount configuration for secure installation.
The bridge rectifier is housed in a D-34 package type.
It includes universal 3-way terminals designed for push-on, wrap around, or solder connection methods.
The peak forward voltage drop is 1.14 V, ensuring efficient conduction with low losses during operation.
This bridge rectifier is designed for single-phase operation.
The Vishay VS-36MB80A bridge rectifier is manufactured in India.
It is suitable for industrial and electronic applications requiring high power rectification.
