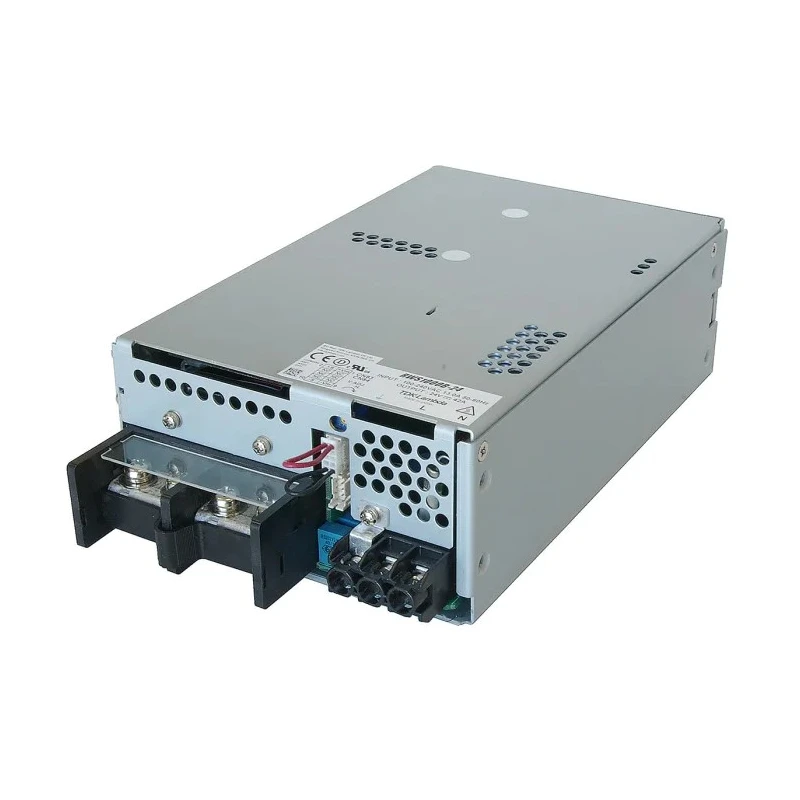

TDK-Lambda Switching Power Supply 36V dc 1.008 kW 28A Chassis Mount RWS1000B-36/S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 1.008kW |
| Efficiency | 88% |
| Length | 198mm |
| Model | RWS1000B-36/S |
| Depth | 63mm |
| Gross Weight | 2kg |
| Width | 63mm |
| Mount Type | Chassis |
| Series | RWS1000/1500-B |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 340, 265V dc |
| Maximum Output Voltage | 36V dc |
| SMPS Output Current | 28A |
| Minimum Input Voltage | 85V ac |
Key Features
- Suitable for industrial, medical, test and measurement, broadcast, communications, and LED signage applications.
- Operates with a wide universal AC input voltage range from 85 to 265V AC and DC input up to 340V.
- Features an efficiency of 88% and meets various global safety approvals.
- Designed for operation between -20°C and 60°C ambient temperature.
- Compact form factor with dimensions 198 mm x 63 mm x 63 mm and weight of 2 kg.
- Backed with a 7-year warranty and 10-year electrolytic capacitor lifetime.
- Single output providing 36V DC voltage at a maximum current of 28A.
- Robust chassis-mounted design for easy integration.
Product Description
TDK-Lambda RWS1000B-36/S Switching Power Supply is a robust industrial grade unit designed for demanding applications requiring stable 36V DC output power with a capacity of 1.008 kW and maximum output current of 28A. The power supply supports chassis mounting and accepts a wide input voltage range from 85 to 265V AC, as well as DC inputs up to 340V, making it highly versatile for various industrial and commercial uses.
Featuring an efficiency of 88%, the RWS1000B-36/S model complies with extensive international standards including FCC Class B, CE, EN 55011, EN 55022-B, IEC/UL/CSA/EN 62368-1 and multiple EMC immunity tests (EN 61000 series). It is engineered for reliable operation in ambient temperatures between -20°C to 60°C, ensuring performance stability under diverse environmental conditions.
The compact dimensions of 198 mm length, 63 mm width, and 63 mm depth allow for easy integration into tight installation spaces with a manageable weight of 2 kg. This switching power supply is ideal for industrial automation, medical equipment, broadcast systems, LED lighting, signage infrastructure, test and measurement devices, and communication equipment.
The single output design offers a well-regulated 36V DC at up to 28A output current, ensuring stable supply to connected loads. This switching power supply offers a maximum output voltage of 36V DC with a continuous output current of 28A.
Universal AC input voltage range of 85 - 265V AC and DC input capability up to 340V. Compact chassis-mounted design with dimensions 198 mm x 63 mm x 63 mm and weight approximately 2 kg. High energy efficiency rated at 88% for reduced power loss during operation.
Wide operating temperature range from -20°C to +60°C for diverse environments. Comprehensive EMC and safety approvals for global compliance and reliability. Ideal for industrial, medical, broadcast, communication, LED signage, and test & measurement applications.
Explore the full range of TDK-Lambda Power Supplies on EnvMart for reliable and efficient power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 1.008 kW.
It accepts a wide input voltage range from 85 to 265V AC and DC inputs up to 340V.
This model features an efficiency of 88%.
The dimensions are 198 mm in length, 63 mm in width, and 63 mm in depth, with a weight of approximately 2 kg.
It provides a maximum output current of 28A.
The operating temperature range is from -20°C to +60°C.
This unit has a single output.
It complies with various international standards including FCC Class B, CE, EN 55011, EN 55022-B, and IEC/UL/CSA/EN 62368-1.
It is designed for chassis mounting.
It is suitable for industrial, medical, test and measurement, broadcast, communications, and LED signage applications.
The country of origin is Malaysia.
This model belongs to the RWS1000/1500-B series.
