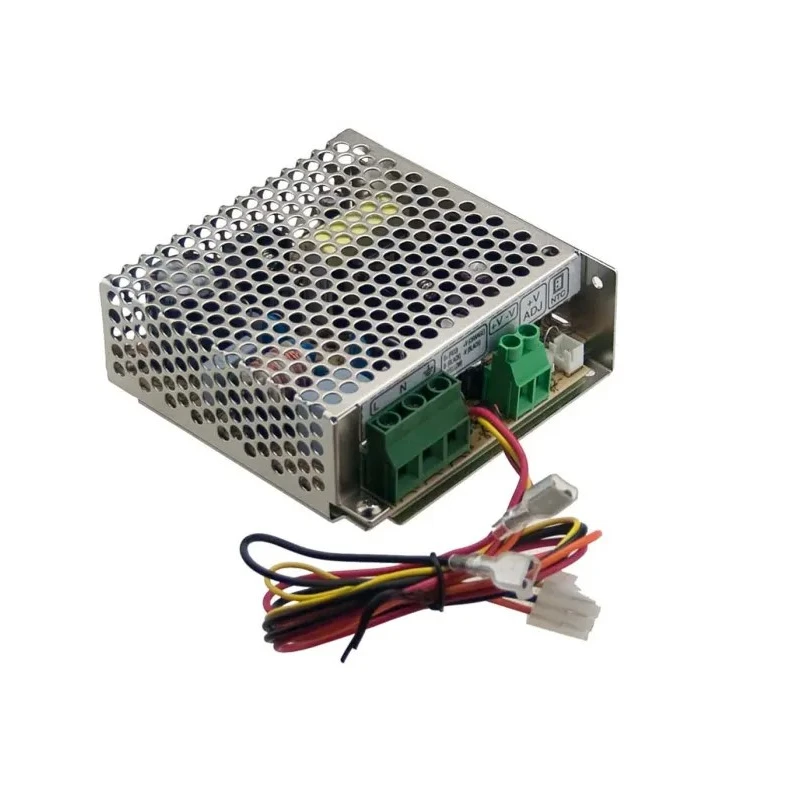

MEAN WELL Encapsulated Linear Power Supply 27.6V dc 38.6W 1.4A Output SCP-35-24

MEAN WELL SCP-35-24 encapsulated linear power supply offers a stable 27.6V dc output with a current of 1.4A and power rating of 38.6W, making it suitable for various industrial and commercial electronic applications. This single output switching power supply supports universal AC input voltage starting from 85V ac, enabling worldwide compatibility.

The robust encapsulated mounting design provides durable protection and steady performance in harsh environments. Operating efficiently at 86% efficiency, it supports use in security systems, access control, emergency lighting, alarm systems, and central monitoring installations where reliable power delivery is critical.

Its operating temperature range from -20°C up to 60°C accommodates a wide range of ambient conditions, and the unit includes multiple protection features such as short circuit, overload, overvoltage, and battery polarity reversal by fuse to safeguard connected equipment.

Thermal management through free air convection eliminates the need for fans, resulting in quiet operation and reduced maintenance. The LED indicator visually confirms power status, aiding in troubleshooting and monitoring.

Electrical characteristics include low ripple and noise (200mV peak-to-peak) and tight load and line regulation of ±1%, ensuring consistent power supply to sensitive devices. The compact dimensions of 99mm length, 97mm width, and 36mm depth facilitate easy installation into various setups.

Universal AC input with a minimum voltage of 85V ac. Encapsulated mount type providing robust protection. Efficiency rated at 86% for energy saving performance. Operating temperature range from -20°C to 60°C. Includes protections for short circuit, overload, over voltage, and battery polarity via fuse.

Cooling by free air convection ensures silent operation without fans. LED indicator shows power status clearly. Low ripple and noise at 200mV peak-to-peak supports sensitive electronics. Load and line regulation within ±1% maintains output stability.

Compact size with dimensions 99mm (L) x 97mm (W) x 36mm (D).

This power supply is ideal for industrial machines, security infrastructure, telecommunications equipment, and any application requiring reliable DC power with precise voltage and current specifications. MEAN WELL’s SCP-35 series products are well regarded for quality and performance in demanding environments.
