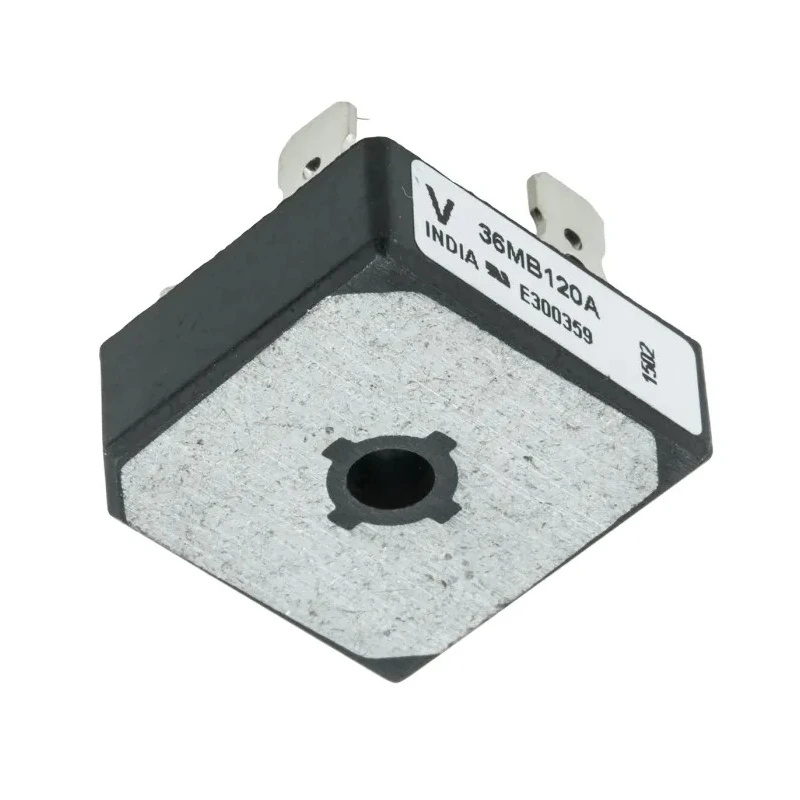

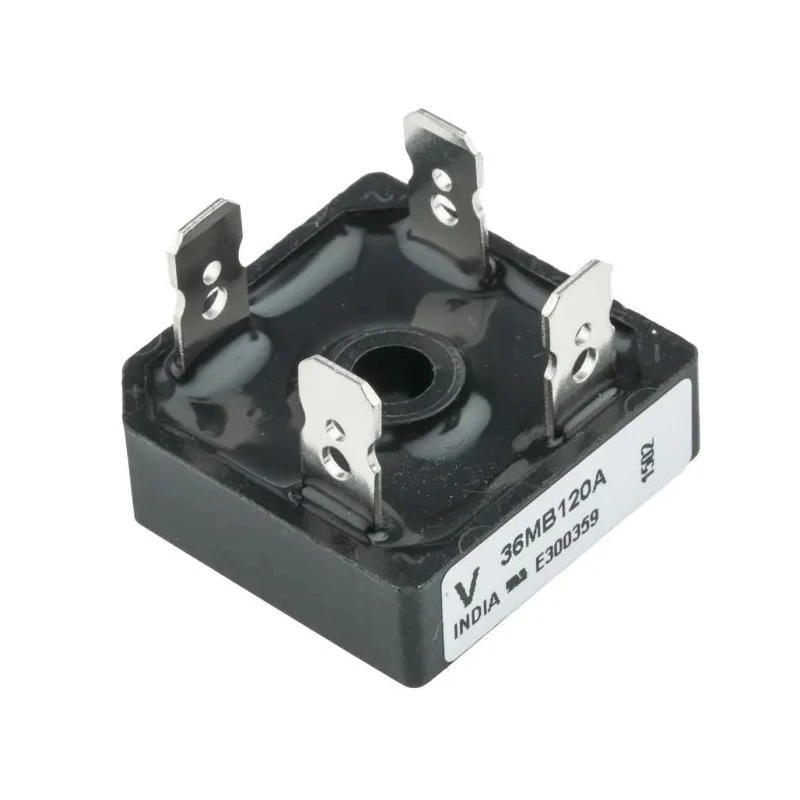

Vishay Bridge Rectifier 1200 V 500 A 4-Pin Single VS-36MB120A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 9.8mm |
| Length | 28.5mm |
| Model | VS-36MB120A |
| Width | 28.5mm |
| Mount Type | Screw |
| Series | VS-36MB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-34 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.14V |
| Universal, 3-way terminals | Push-on, wrap around or solder |
| Vishay Bridge Rectifier, 1000 V 500 A, 4-Pin SingleBrand | Vishay |
Key Features
- The device supports a peak non-repetitive forward surge current of 500 A.
- It features a high operating temperature range from -55°C to 150°C.
- The package type D-34 with screw mount ensures reliable installation.
- Configured as a single-phase bridge rectifier with 4 pins for easy connectivity.
- Designed with push-on, wrap-around, or solder terminals for versatile usage.
- Compact dimensions of 28.5 mm length, 28.5 mm width, and 9.8 mm height optimize space efficiency.
- Low peak forward voltage of 1.14 V and minimal peak reverse current of 10 μA improve performance efficiency.
- Manufactured in India ensuring compliance with local quality standards.
Product Description
Vishay VS-36MB120A Bridge Rectifier is a 4-pin single-phase rectifier designed for industrial and electronic applications requiring reliable AC to DC conversion. It handles peak repetitive reverse voltages up to 1200 V and forward currents of 35 A, making it suitable for demanding power supply circuits.
The bridge rectifier package is compact with dimensions of 28.5 mm by 28.5 mm and a height of 9.8 mm, featuring high thermal conductivity and an electrically insulated case for enhanced thermal management. It supports a maximum operating temperature of 150°C and a minimum operating temperature of -55°C, suitable for a broad range of environmental conditions.
This model uses a D-34 screw mount package with push-on, wrap-around, or solder terminals allowing flexible and secure mounting options. The device delivers efficient full-wave rectification with a low forward voltage drop of 1.14 V and a peak reverse current of just 10 μA, contributing to energy savings and reliable performance.
Built for robustness, the VS-36MB series bridge rectifiers offer excellent power-to-volume ratios and are designed to ensure universal compatibility with various configurations. Its surge current capability reaches 500 A during peak non-repetitive forward surges, providing protection in transient conditions.
These bridge rectifiers are ideal for power supply circuits in industrial machines, electronics components, and semiconductor applications. Manufactured in India, the product adheres to stringent quality control to ensure long-term reliability.
Supports peak repetitive reverse voltage of 1200 V and forward current of 35 A. Operates reliably within a temperature range of -55°C to 150°C. D-34 screw mount package with versatile terminal options. Compact size enhances design flexibility in power conversion applications.
Offers excellent thermal conductivity and electrical insulation. Low forward voltage drop and minimal reverse current boost efficiency. Handles high surge currents up to 500 A for transient protection. Manufactured in India ensuring local quality standards.
Discover more quality semiconductor products like this Vishay Bridge Rectifier in EnvMart's Electronics & Electricals category designed to meet your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 150°C.
It supports a peak reverse repetitive voltage of 1200 V.
The forward current rating is 35 A.
It can handle a peak non-repetitive forward surge current of 500 A.
The dimensions are 28.5 mm in length, 28.5 mm in width, and 9.8 mm in height.
It uses a D-34 screw mount package.
The device features universal, 3-way terminals that can be push-on, wrap-around, or solder type.
The peak forward voltage drop is 1.14 V.
The minimum operating temperature is -55°C.
The peak reverse current is 10 μA.
This model is manufactured in India.
It is suitable for industrial machines, electronics components, and semiconductor applications requiring AC to DC conversion.
