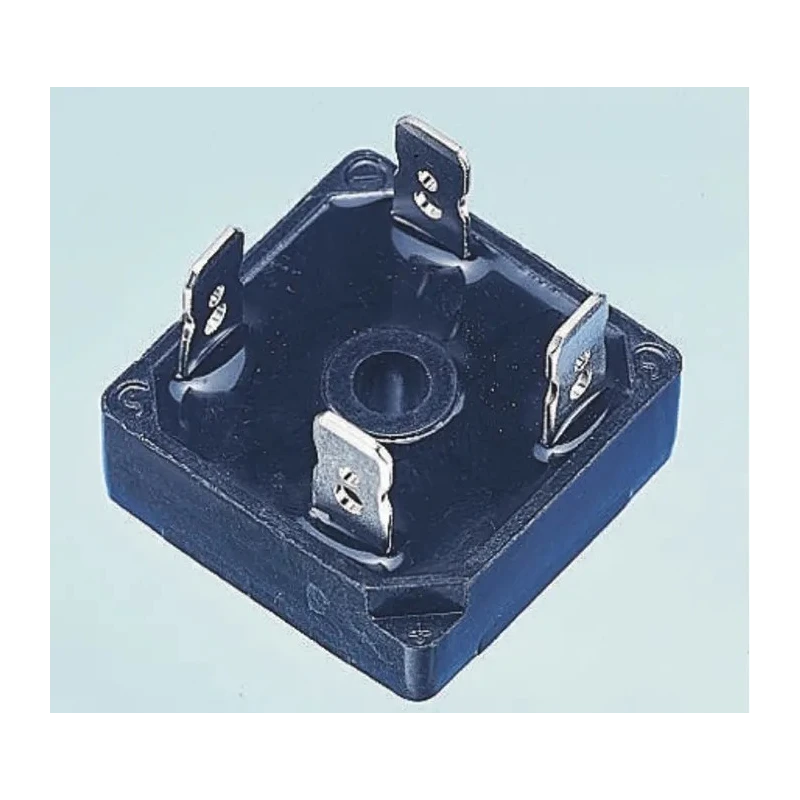

Vishay Bridge Rectifier 200 V 500 A 4-Pin Single VS-36MB20A

Vishay VS-36MB20A Bridge Rectifier is a robust semiconductor device designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification. This bridge rectifier features a 4-pin single-phase configuration and is rated to withstand a peak reverse repetitive voltage of 200 V and a forward current of 35 A.

Engineered with a screw mount type and enclosed in a compact D-34 package measuring 28.5 mm in length and width and 9.8 mm in height, it is ideal for applications requiring space-efficient power conversion components. The device supports operation in an ambient temperature range from -55°C to 150°C, making it suitable for demanding industrial environments.

The rectifier's innovative design includes universal 3-way terminals allowing versatile electrical connections: push-on, wrap-around, or solder, facilitating easy installation and maintenance. It delivers excellent power-to-volume ratio with a peak forward voltage drop of only 1.14 V, ensuring high energy efficiency and minimal power losses during operation.

Leakage current is minimized with a peak reverse current of just 10 μA, enhancing the device's reliability and longevity. The package provides high thermal conductivity with electrical insulation to maintain performance stability under thermal stress.

Certified under UL E300359, this product meets safety requirements for industrial and electronic use. It is widely applicable in power supplies, industrial machinery, and electronic equipment requiring efficient and durable AC to DC conversion within the specified voltage and current ratings.

Rated forward current of 35 A ensuring reliable performance. Operates within a temperature range of -55°C to 150°C for harsh conditions. Screw mount type with a compact D-34 package footprint. Dimensions are 28.5 mm length, 28.5 mm width, and 9.8 mm height for space-efficient installation.

Features universal 3-way terminals allowing push-on, wrap around, or solder connections. Peak forward voltage drop of 1.14 V to maintain energy efficiency. Extremely low peak reverse current of 10 μA minimizes leakage losses.

Suitable for single-phase full-wave rectification applications in industrial and electronic devices. Designed with a thermally conductive, electrically insulated package for durability. Complies with UL E300359 safety approval standards.
